For the Liugong 915 series (including 915D, 915E, and 915F), having the right attachment is the difference between a productive day and a costly one. As a 14-15 ton machine, the Liugong 915 is a “utility powerhouse,” and these two HWX attachments showcase the two most essential configurations for this weight class.
1. The Dual-Role Strategy for the 15-Ton Class

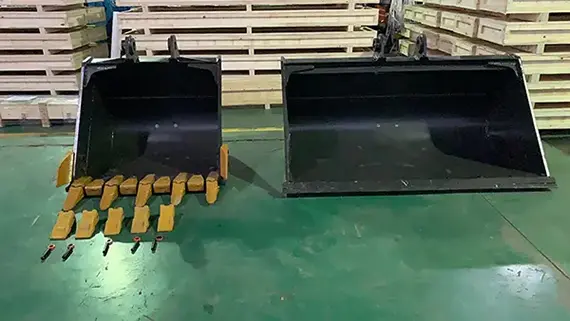

The Liugong 915 is often used in urban construction, road maintenance, and basement excavations. The two buckets pictured above provide a complete solution for these diverse tasks:

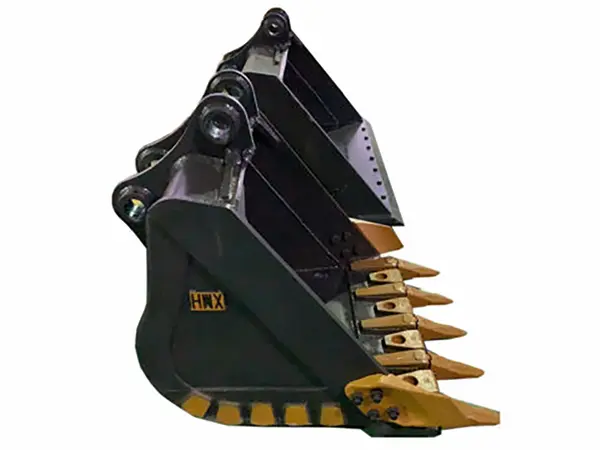

- The HD Rock & Trenching Bucket Equipped with high-penetration teeth and bolted side shrouds, this is the go-to for the Liugong 915 when hitting hard-packed clay, shale, or demolition debris. For a 15-ton machine, the ability to concentrate breakout force through these teeth is vital for efficient digging.
- The Clean-up & Grading Bucket Featuring a straight Bolt-on Cutting Edge (BOC), this wide-profile bucket is designed for finish grading and loading loose material. It allows Liugong 915 operators to clear flat surfaces for foundations or roads without leaving the “washboard” effect caused by teeth.
2. Technical Specifications for Liugong 915 Fitment
At HWX, we ensure these buckets are “Plug-and-Play” for the Liugong 915 by strictly adhering to the machine’s specific linkage dimensions:
| Parameter | Liugong 915 Standard Fitment | HWX Advantage |
|---|---|---|
| Pin Diameter | 65 mm / 70 mm (Model Dependent) | Precision-machined for zero-play |
| Ear Width | ~270 mm – 280 mm | Accurate spreader distance |
| Material | Standard Structural Steel | NM400 Wear-Resistant Liners |
| Bucket Capacity | 0.55 m³ – 0.65 m³ | Optimized for Liugong 915 stability |
3.
Built for Longevity: The HWX Reinforcement Package

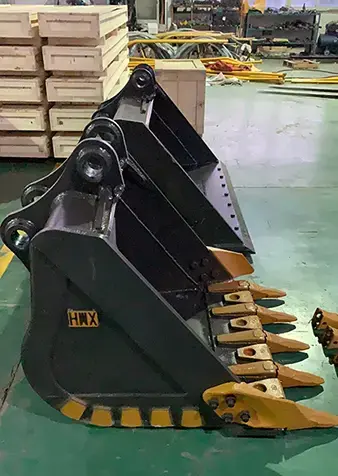

The 15-ton sector is highly competitive, and equipment durability is key to ROI. The side view of our bucket reveals superior protection:
Reinforced Cheek Plates: The side plates are thickened to handle the twisting forces common when the Liugong 915 is working in tight urban spaces.
Side Shrouds (Yellow Armor): These replaceable guards protect the bucket’s leading corners—the most high-wear area during trenching.
Heel Shrouds: Visible at the rear curve, these prevent the “bottom-out” wear that eventually leads to floor failure.
Conclusion
The Liugong 915 is an exceptionally balanced machine, and our specialized HWX buckets are designed to complement that balance. By providing both a high-penetration rock configuration and a precision grading configuration, we ensure your 15-ton fleet is ready for any job site challenge.
Ready to upgrade your Liugong 915? Available for immediate shipping in standard 600mm, 800mm, and 1000mm widths. Each bucket is verified against original Liugong drawings for a guaranteed fit.
