Jinan Changhao Machinery Equipment Co., Ltd. Is one of Top 10 Hydraulic Breaker Manufacturers in China. We are professional manufacturer of hydraulic breakers/rock hammers , hydraulic breaker spare parts, excavator auxiliary hydraulic breaker piping kits, excavator quick hitch coupler and other excavator attachments.
The hydraulic breaker spare parts we can supply are piston tool, seal kits, chisel, rod pin, thrush bush, ring bush, front cover, pedal valve, rubber diaphragm, through bolt, side bolt, charging valve ,front head, back head, middle cylinder, accumulator, nitrogen charging device, bracket, outer-shell, main body assembly ect. Our breaker hammer spare parts can be used as replacement parts for hydraulic breaker hammer of Furukawa, NPK, Atlas Copco, Rammer, Montabert, Toku, Toyo, Teledyne, MSB, Krupp, Indeco etc.
WHY CHOOSE US?
-
- Selected raw material – high quality heavy duty wear resistant steel.
- Hydraulic-gas system, increase stability.
- High-quality and durable wear parts.
- Advanced manufacturing facilities, introduced from South Korea.
- High energy and impact frequency (high performance).
- High-performance optimized hydraulic unit.
- Low maintenance, less breakdown, long using life.
- Suitable For KOMATSU;HITACHI;KOBELCO;DOOSAN;HYUNDAI;CATERPILLAR;CASE;VOLVE;JCB,XCMG;SANY; Bobcat etc.
- 24/7 Hydraulic Breaker Hammer Technical Support, worldwide Excavator Hammer Shipping.
- Hydraulic Breaker Hammer Manufacturer Direct Price, Bulk Order Rock Breaker Discount.
- OEM Excavator Hammer Supplier, Customized Logo Accept.
- Our hydraulic rock breakers have helped customers of Poland,Peru, Colombia, Morocco, Portugal, Slovenia, Albania, Croatia, Guatemala, United States, Bulgaria, Chile,Libya,Thailand, the Philippines, Malaysia, Cyprus,Saudi Arabia and Mexico reduce construction machinery project cost by 50%.
Our factory is located in Jinan City,Shandong province. Welcome to visit our factory. It is also welcomed that you see your factory over a video call.
Our projects

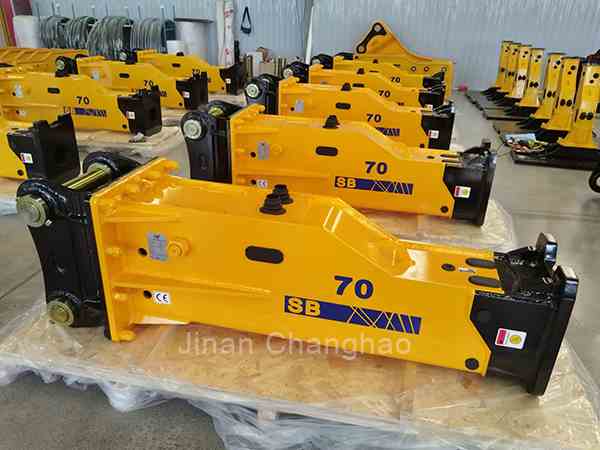

SB70 rock breaker hydraulic demolition jack hammer with CE certified

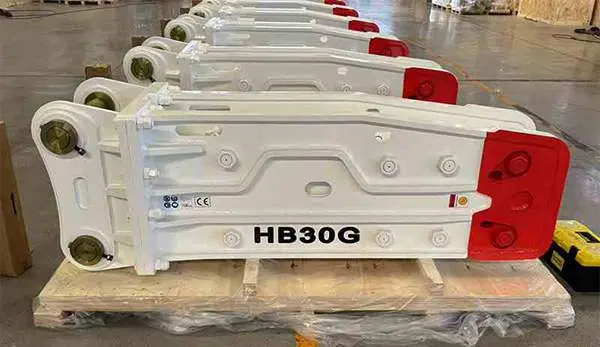

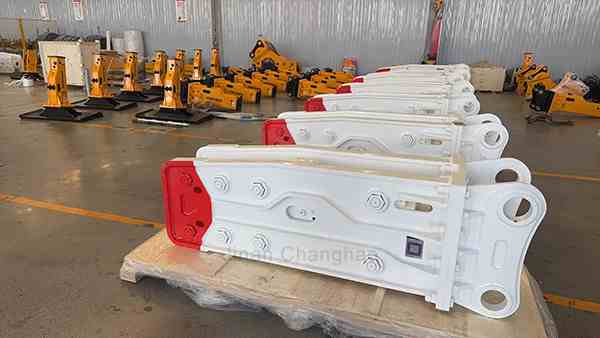

Hot sale HB30G hydraulic breaker for sale
Professional manufacturer of HB20G HB30G hydraulic breakers in China

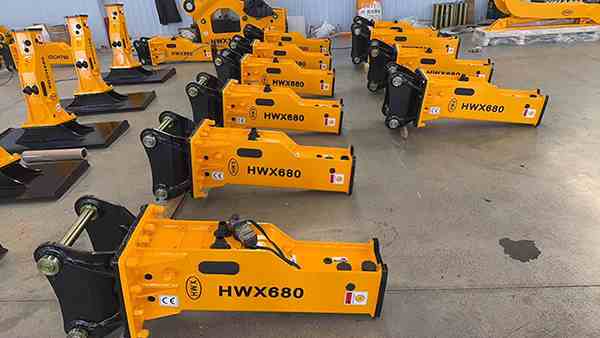

hydraulic breaker hammer for case 580 JCB 3CX 3DX backhoe loader

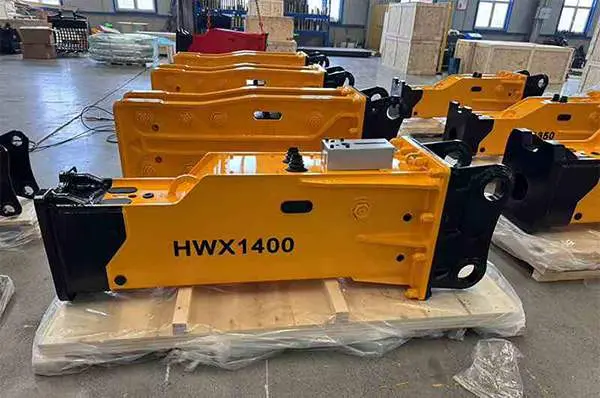

20-Ton Hydraulic Breakers with Integrated Auto-Grease System
| HWX Hydraulic Breakers HWX350 HWX400 HWX450 HWX530 |
| DESCRIPTION | Unit | HWX350 | HWX400 | HEX450 | HWX530 | |
| Weight | Kg | 70 | 70 | 130 | 170 | |
| Height | mm | 1000 | 1000 | 900 | 1000 | |
| Working Pressure | kg/cm² | 90-120 | 90-120 | 110-140 | 110-140 | |
| Oil Flow | L/min | 15-25 | 15-25 | 25-40 | 25-45 | |
| Impact Rate | bpm | 700-1200 | 700-1200 | 550-1000 | 500-900 | |
| Oil hose dia. | mm | 3/8 | 3/ 8 | 1/2 | 1/ 2 | |
| Chisel Dia. | mm | 35 | 40 | 45 | 53 | |
| Bucket Capacity | m³ | 0.1 | 0.1 | 0.1 | 0.1 | |
| Excavator | ton | 0.8~1.2 | 1.0~2.0 | 2.5~4.5 | 3.0~5.5 | |
| HWX Hydraulic Breakers HWX680 HWX750 HWX850 HWX1000 |
| DESCRIPTION | Unit | HWX680 | HWX750 | HEX850 | HWX1000 | |
| Weight | Kg | 300 | 400 | 500 | 800 | |
| Height | mm | 1100 | 1300 | 1450 | 1500 | |
| Working Pressure | kg/cm² | 110-160 | 110-160 | 120-170 | 150-170 | |
| Oil Flow | L/min | 30-45 | 35-65 | 45-85 | 80-120 | |
| Impact Rate | bpm | 500-800 | 500-700 | 400-700 | 400-700 | |
| Oil hose dia. | mm | 1/2 | 1/ 2 | 3/4 | 3/ 4 | |
| Chisel Dia. | mm | 68 | 75 | 85 | 100 | |
| Bucket Capacity | m³ | 0.15-0.25 | 0.25-0.35 | 0.25-0.5 | 0.45-0.6 | |
| Excavator | ton | 4.0-7.0 | 6.0-8.0 | 7.0-14 | 11-16 | |
| HWX Hydraulic Breakers HWX1350 HWX1400 HWX1500 HWX1550 |
| DESCRIPTION | Unit | HWX1350 | HWX1400 | HWX1500 | HWX1550 | |
| Weight | Kg | 1700 | 1800 | 2400 | 2600 | |
| Height | mm | 1600 | 1700 | 2800 | 3300 | |
| Working Pressure | kg/cm² | 180-200 | 180-200 | 180-200 | 180-200 | |
| Oil Flow | L/min | 120-160 | 130-170 | 150-190 | 170-220 | |
| Impact Rate | bpm | 400-700 | 400-600 | 350-500 | 250-400 | |
| Oil hose dia. | mm | 3/4 | 1 | 1 | 1 1/ 4 | |
| Chisel Dia. | mm | 135 | 140 | 150 | 155 | |
| Bucket Capacity | m³ | 0.6-0.8 | 0.7-0.9 | 1.1-1.4 | 1.1-1.7 | |
| Excavator | ton | 19-26 | 19-26 | 27-38 | 28-40 | |
| HWX Hydraulic Breakers HWX1650 HWX1750 HWX1850 HWX1950 |
| DESCRIPTION | Unit | HWX1650 | HWX1750 | HWX1850 | HWX1950 | |
| Weight | Kg | 3100 | 4100 | 5000 | 6000 | |
| Height | mm | 3500 | 3800 | 3000 | 3300 | |
| Working Pressure | kg/cm² | 200-250 | 220-280 | 220-280 | 280-300 | |
| Oil Flow | L/min | 120-160 | 120-160 | 240-300 | 290-360 | |
| Impact Rate | bpm | 400-700 | 400-700 | 180-250 | 150-200 | |
| Oil hose dia. | mm | 1 1/ 4 | 1 1/ 4 | 1 1/ 4 | 1 1/ 4 | |
| Chisel Dia. | mm | 165 | 175 | 185 | 195 | |
| Bucket Capacity | m³ | 1.2-1.7 | 1.3-1.8 | 1.4-1.9 | 1.5-2.0 | |
| Excavator | ton | 30-45 | 30-45 | 40-45 | 45-50 | |
| HWX Hydraulic Breakers HWX2100 HWX2200 HWX2300 |
| DESCRIPTION | Unit | HWX2100 | HWX2200 | HWX2300 | ||
| Weight | Kg | 7200 | 7700 | 8000 | ||
| Height | mm | 3800 | 3900 | 4000 | ||
| Working Pressure | kg/cm² | 300-320 | 300-320 | 300-320 | ||
| Oil Flow | L/min | 300-350 | 400-500 | 420-550 | ||
| Impact Rate | bpm | 160-210 | 160-210 | 160-210 | ||
| Oil hose dia. | mm | 1 1/ 2 | 1 1/ 2 | 1 1/ 2 | ||
| Chisel Dia. | mm | 210 | 220 | 230 | ||
| Bucket Capacity | m³ | 2.1-2.3 | 2.2-2.5 | 2.4-2.8 | ||
| Excavator | ton | 60-70 | 65-80 | 80-110 | ||
| Model No. | HB15G | HB20G | HB30G | HB40G | HB50G |
| Operating weight (kg) | 1230 | 1600 | 2420 | 3175 | 4292 |
| Operating pressure (MPa) | 16~18 | 16~18 | 16~18 | 16~18 | 16~18 |
| Oil flow (L/min) | 90~120 | 125~150 | 150~190 | 190~250 | 210~290 |
| Impact rate (bpm) | 400~800 | 350~650 | 300~750 | 300~550 | 220~350 |
| Hose diameter (inch) | 1 | 1 | 1 | 1 1/4 | 1 1/4 |
| Rod diameter (mm) | 120 | 135 | 150 | 160 | 175 |
| Suitable carrier (ton) | 13~18 | 18~28 | 28~35 | 33~50 | 40~60 |
|
Product Name |
Material |
|
Hydraulic Breaker Cylinder |
20crmo forged |
|
Hydraulic Breaker Front Head |
40crmo forged |
|
Hydraulic Breaker Back Head |
40crmo forged |
|
Hydraulic Breaker Plug Valve Sleeve Valve |
20CrMo |
|
Hydraulic Breaker Front Cover |
40crmo forged |
|
Hydraulic Breaker Ring Bush |
40crmo forged |
|
Hydraulic Breaker Through Bolt |
40CrMo |
|
Hydraulic Breaker Chisel |
42CrMo forging,Each drill rod has undergone 3 cold heat treatments, long life drill rod |
|
Hydraulic Breaker Seal kit |
High temperature resistance |
