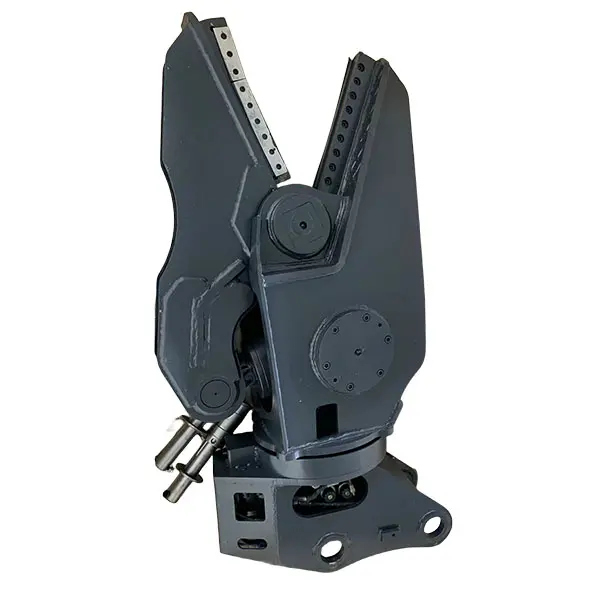

Engineered specifically for backhoe loaders like the JCB 3CX, this high-performance hydraulic scrap shear is the ultimate tool for urban demolition and scrap yard recycling. With a compact yet robust 550kg design, it provides an exceptional power-to-weight ratio, allowing for precise steel cutting without compromising the stability of the backhoe.
The hydraulic shear is used for backhoe loader JCB 3CX, and widely used in Steel Cutter Scrap Metal factory.
| Feature | Details |
|---|---|
| Carrier Weight | 5 – 9 Tons (Optimized for JCB 3CX / CASE 580) |
| Operating Weight | 550 KG |
| Jaw Opening | 376 mm (14.8 inches) |
| Cutting Depth | 320 mm |
| Operating Pressure | 210 – 280 Bar (21-28 MPa) |
| Cutting Force | 45 – 55 Tons |
| Rotation | 360° Rotating function (Manual/Hydraulic Optional) |
The “Golden Parameters” for JCB 3CX Fitment
- Pin Diameter: 45mm / 50mm (Customizable to specific linkage)
- Ear Width: Designed for seamless “Plug-and-Play” fit on JCB 3CX quick couplers or direct pins.

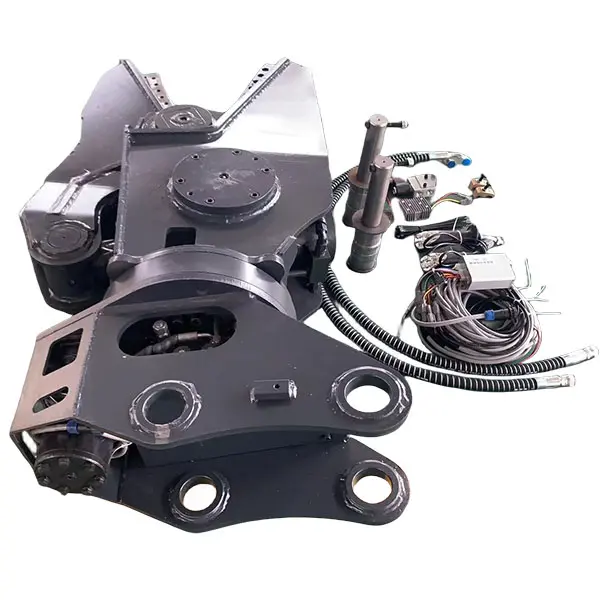

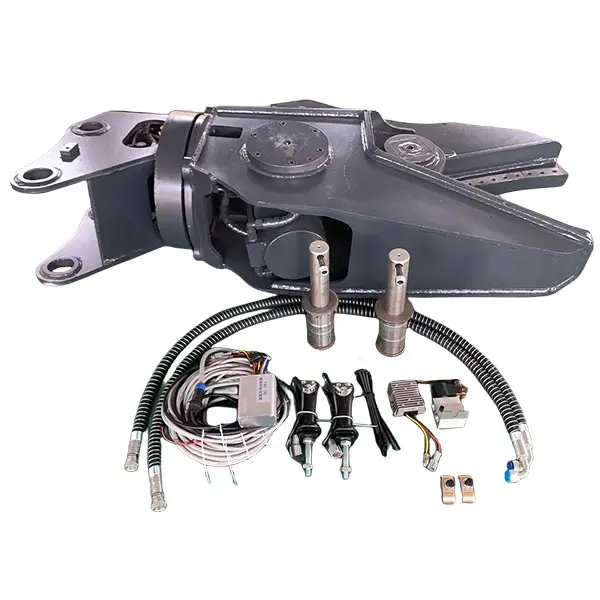

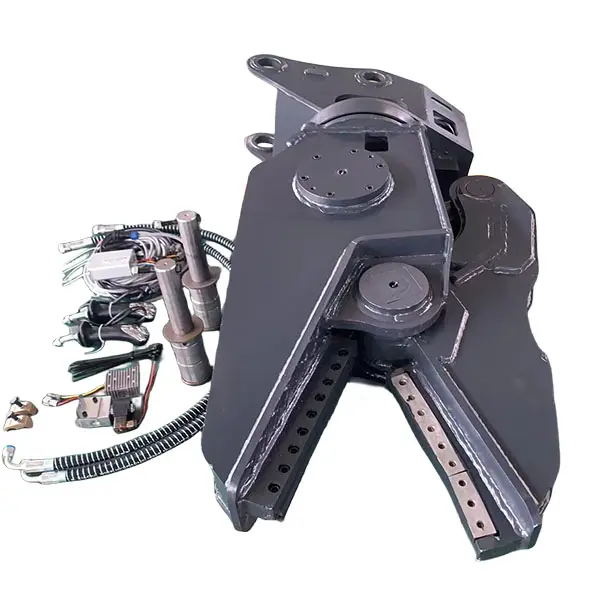

- Connection: Full-set configuration includes 2 high-strength pins, hydraulic hoses with protective sleeves, and a solenoid valve control kit.
Key Features & EEAT Advantages
- Hardened Steel Construction: The main body is fabricated from NM400 wear-resistant steel, ensuring structural integrity under repetitive high-torque shearing.
- Reversible & Replaceable Blades: Equipped with 4-sided reversible tool-steel blades. When one side wears down, simply rotate the blade to maintain peak cutting performance, significantly lowering maintenance costs.
- Shielded Cylinder: The high-pressure hydraulic cylinder is protected by the main frame to prevent damage from falling scrap metal during demolition.
- Advanced Maneuverability: The 360° rotation allows operators to tackle I-beams, steel pipes, and rebar from any angle, which is essential for tight urban demolition sites.
Application Scenarios
- Steel Scrap Recycling: Cutting pipes, rebar, and auto-frames.
- Structural Demolition: Tearing down steel-framed buildings and industrial facilities.
- Urban Renewal: Precision clearing in residential areas where large excavators cannot reach.
