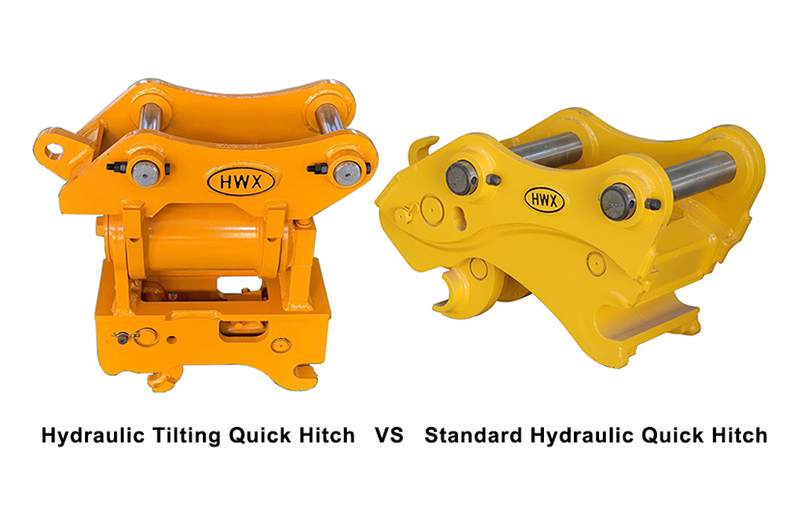

Choosing between a Standard Hydraulic Quick Hitch and a Hydraulic Tilting Quick Hitch Coupler depends largely on the complexity of your job site and your budget. While both allow you to change attachments from the cab, the “Tilting” version adds a new dimension of movement.

Which one should you choose?
Choose a Standard Hydraulic Quick Hitch if:
You primarily do heavy demolition with hydraulic breaYour work involves mostly straight-line trenching or loading.
You want the maximum possible breakout force for hard ground.

Choose a Tilting Hydraulic Quick Hitch if:
You do a lot of roadwork, landscaping, or finishing.
You work in confined spaces where machine maneuverability is limited.
You want to increase the versatility of your existing fleet of buckets without buying specialized tilting attachments for each one.

Here is a breakdown to help you decide which is right for your project.

1. Standard Hydraulic Quick Hitch
The standard hitch is a straightforward “hook and lock” mechanism. Its primary job is to let the operator switch between buckets, rippers, or breakers without leaving the seat. It allows you to switch between buckets and attachments in seconds without manual labor.
How it works: It uses hydraulic cylinders to engage and disengage the pins of an attachment.
Best For: High-volume production, heavy digging, and projects where the excavator stays on level ground.
Heavy Attachments: Because it is lighter and has fewer moving parts, it can often handle heavier breakers or large buckets more efficiently.
Budget-Conscious Projects: Lower upfront cost and lower long-term maintenance.
Limitation: It only moves in the same arc as your excavator arm. If you need to dig at an angle, you must reposition the entire machine.

2. Hydraulic Tilting Quick Hitch
A hydraulic tilting hitch adds a new dimension to your machine, allowing attachments to tilt up to 180 degrees (90° left and 90° right). The tilting hitch acts like a “wrist” for your excavator.

How it works: It features an integrated tilting motor that allow the attachment to pivot left and right independently of the machine’s position.

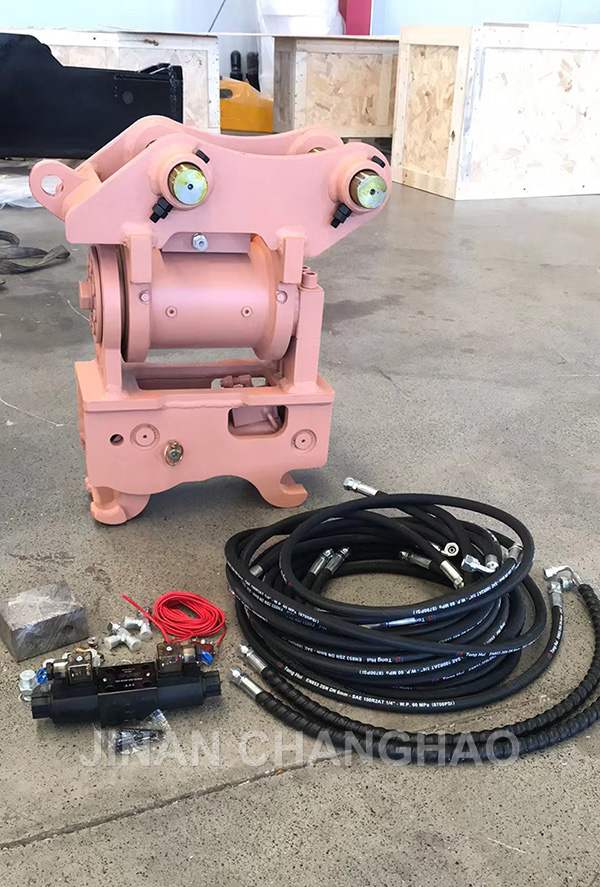

complete set excavator hydraulic tilting quick hitch coupler

Best For:
Complex Grading & Landscaping: Perfect for shaping slopes, creating V-ditches, and fine-grading without needing a specialized tilting bucket.
Tight Spaces: In urban construction or forest work where you cannot easily move the excavator tracks, the tilt allows you to reach around obstacles or dig under pipes.

Unmatched Versatility: Turns every bucket, rake, or ripper into a tilting tool.
Reduced Machine Movement: You move the bucket, not the tracks. This saves up to 30% in fuel costs and reduces wear on the undercarriage.
Precision Work: Perfect for cutting batters or cleaning out corners where a standard hitch can’t reach.
Labor Savings: Eliminates the need for manual leveling or “ground-men” with shovels. Increased Productivity: Finish grading tasks 50% faster.

Limitation: It is heavier and thicker (higher “stack height”), which slightly reduces the breakout force of the bucket. And Higher initial investment and slightly more weight added to the end of the arm.

While the upfront cost of a hydraulic tilting quick hitch is higher, it typically pays for itself within 6 to 12 months through:

At Jinan Changhao (HWX), we specialize in high-strength（material Q355 and NM400）, double-locking quick hitches that meet international safety standards. Whether you need a 2-ton mini excavator quick hitch for a project in the Czech Republic or a 20-ton heavy-duty tilting hitch for an Australian infrastructure site, our engineers ensure precision, durability, and a perfect fit.

Contact our technical team today for a tailored quote or to download our full product catalog.
