When it comes to heavy-duty demolition, mining, and large-scale infrastructure projects, choosing the right attachment for your excavator can make or break your project timeline. Among the heavyweight contenders in the market, the HB30G Hydraulic Breaker featuring a 150mm chisel diameter stands out as an industry standard for raw power and reliability.
The HB30G is a heavy-range hydraulic hammer designed to be mounted on large excavators, typically ranging from 28 to 35 tons (such as the CAT 330, Komatsu PC300, or Sany SY335).

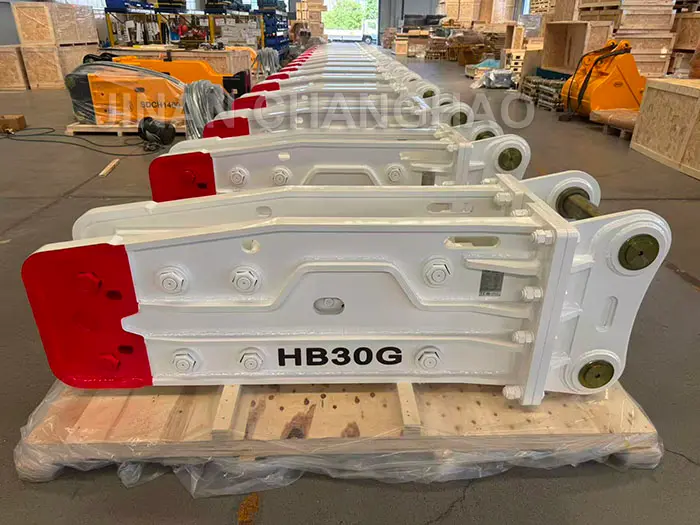

HB30G Hydraulic hammers for an African Project
The defining feature of this specific variant is its 150mm chisel diameter (tool diameter). In the hydraulic breaker industry, chisel diameter directly correlates with impact energy. A 150mm tool ensures that the piston delivers massive kinetic force without risking structural bending or premature wear when hitting high-hardness materials.
If you are looking to maximize your fleet’s productivity, here is a comprehensive guide to everything you need to know about this heavy-duty workhorse.
| Parameter | Standard Range / Specification |
|---|---|
| Chisel Diameter | 150 mm (5.9 inches) |

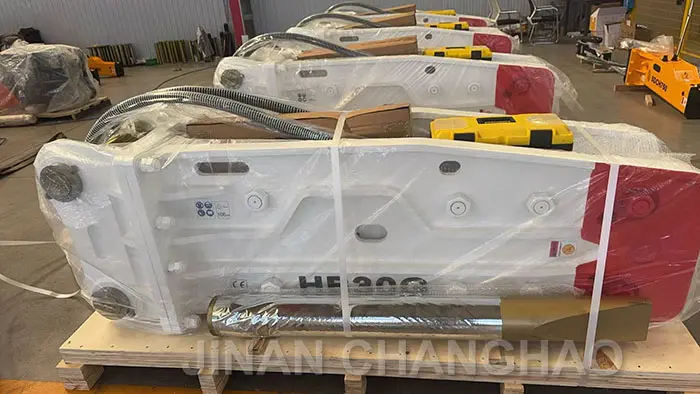

| Operating Weight | 2923 kg (including mounting plate， chisel, tool box,Nitrogen charging tool) |
| Applicable Excavator | 28 – 35 Tons |
| Impact Rate (Blows/Min) | 300 – 550 bpm |
| Operating Oil Pressure | 160 – 180 kg/cm² (16-18 MPa) |
| Hydraulic Oil Flow Rate | 180 – 240 L/min |
| Impact Energy Class | Approx. 6,000-7,000 Joules |
Key Performance Advantages
1. High Impact Energy & Penetration
The combination of a hefty piston stroke and a 150mm heavy tool pin allows the HB30G to fracture reinforced concrete structures and hard rock formations (such as granite or basalt) with fewer blows. This significantly reduces fuel consumption on your prime mover excavator.
2. Advanced Accumulator System
The HB30G models feature a top-mounted nitrogen gas accumulator.
How it works: The accumulator absorbs the pressure spikes generated during the return stroke, recycling that hydraulic energy to boost the power of the next downward blow while protecting the excavator’s hydraulic pump from stress fractures.
3.Top Type: Provides a direct line of vertical force, maximizing downward impact—perfect for open-pit quarrying and primary rock breaking.
4. Engineering Excellence: Material & Durability
At Jinan Changhao (HWX), we engineer the HB30G to survive the harshest environments:
20CrMo Alloy Steel: The cylinder and piston are forged from premium alloy steel, undergoing precision grinding to ensure
5.Engineered for Arid & Tropical Climates:
The HB30G is equipped with specialized high-temperature resistant seal kits that maintain their elasticity and sealing integrity even in ambient temperatures exceeding 50°C. Its advanced hydraulic circuit is optimized to minimize friction-induced heat, ensuring continuous heavy-duty operation in Middle Eastern deserts and African mining sites without power fade. And a perfect hydraulic seal, No oil leakage guaranteed. Proven Design: Decades of field testing in mining zones like the Middle East and South America. The HB30G features an enhanced dust-proof structure and heat-resistant seals, making it the most reliable 150mm breaker for desert infrastructure and African open-pit mining.”
6.Vacuum Heat Treatment: Our chisels are treated to a depth that ensures the surface is hard enough to resist abrasion while
the core remains tough enough to absorb impact.

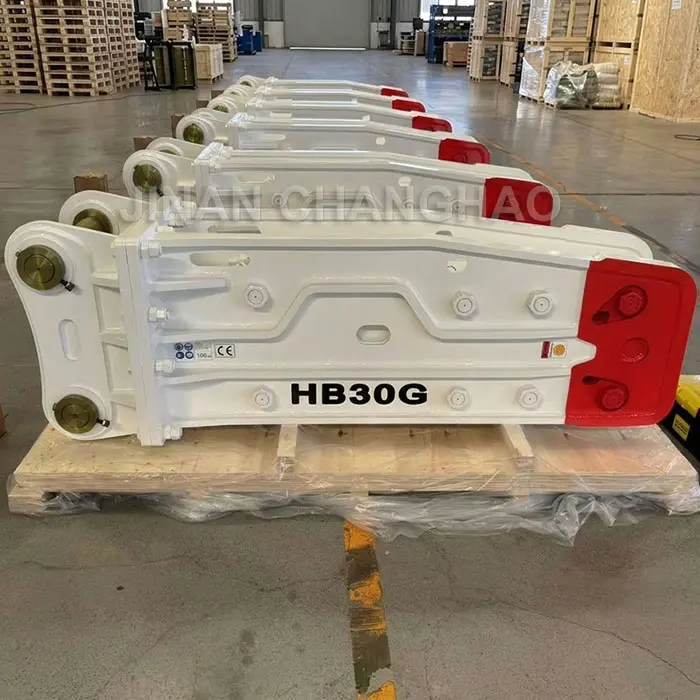

HB30G Hydraulic Breakers for a Saudi National Project
7. Compatibility & The “Golden Three Parameters”
We ensure our HB30G breakers are “Plug-and-Play” compatible with major brands including Caterpillar (Fits Cat 330/336),
Sany (Fits SY235/SY245), Komatsu (Fits PC300), and Volvo (Fits EC290).
Before manufacture, we verify the Golden Three Parameters:
1. Pin Diameter (Matches your machine’s pins).
2. Center-to-Center Distance (Ensures correct linkage geometry).
3. Ear Width (Ensures a snug fit on the dipper arm).
8. The HB30G follows the Standard HB design platform, which is the most widely supported breaker architecture globally. This means: Global Spare Parts Availability: Chisels, seal kits, and bushings are available in nearly every country.

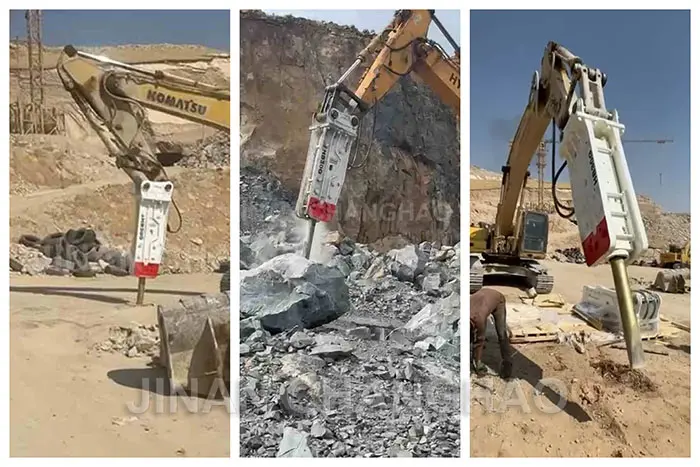

HB30G hydraulic hammers application
How to Choose a Reliable Manufacturer for HB30G Hydraulic Breakers?
1. Verify Core Manufacturing Technology & MaterialsA hydraulic breaker’s longevity depends entirely on the quality of its steel and the precision of its heat treatment.
When vetting a factory, ask about: The Material Composition: Premium manufacturers build the cylinder and piston using high-grade alloy steel ( 20CrMo and 40CrMo ).
Lower-tier suppliers often use cheaper carbon steel, which warps or scores under high pressure. In serious cases it leads to cylinder cracking.
In-House Heat Treatment: The piston, front head, and cylinder body must undergo advanced, multi-stage heat treatment processes to achieve optimal hardness and fatigue resistance. A reliable manufacturer should have documentation or ISO certifications covering their heat treatment standards.
The HWX Standard: The hydraulic cylinder material is 20CrMo and We utilize advanced vacuum heat treatment to achieve the perfect balance of surface hardness and core toughness. This prevents the 150mm chisel from snapping even when working in hard granite.
Precision Grinding: The tolerance between the piston and the cylinder must be accurate to the micron level to avoid internal oil leakage or sudden seizing. Ask if they use CNC grinding equipment to guarantee this precision.
2. Evaluate Housing Configurations and Structural Strength
The HB30G is utilized in demanding environments, from deep trenching to open-pit mining. A quality manufacturer will offer structural options tailored to your market:
Top Type: Ensure the manufacturer uses high-strength tie rods and robust lock nuts that can handle the relentless vibrational stress of 350 to 550 blows per minute.
3.Evaluate “Extreme Climate” Engineering
If your projects are in the Middle East or Africa, a standard breaker isn’t enough. High ambient temperatures (50°C+) can cause seals to melt and power to fade.
What to Look For: Ask if they use high-temperature resistant seal kits .
The HWX Advantage: Our HB30G series is “Tropicalized.” We optimize the hydraulic internal tolerance to ensure continuous operation in scorching desert environments without oil leakage or pressure loss.
4. Look for a Supplier with Comprehensive OEM Customization Capabilities
Every excavator manufacturer—whether it is Caterpillar, Komatsu, Sany, or Hitachi—uses slightly different pin diameters, ear-to-ear widths, and center-to-center pin distances.
A reliable manufacturer doesn’t just sell a “one-size-fits-all” breaker. They should offer customized mounting brackets (top adapter plates) tailored perfectly to your specific excavator fleet or your customers’ machines.
For distributors, a true manufacturing partner will provide flexible OEM branding services, allowing you to customize the color, logoplates, and outer housing design to match your brand identity.
5. Check for Global Compatibility
For buyers, the ability to find spare parts locally is vital.
The Standard: Choose a manufacturer that follows the HB30G design platform. This ensures that wear parts (chisels, bushings, seal kits) are interchangeable with major brands worldwide, making maintenance easy and affordable.
6. Assess Quality Control and Testing FacilitiesNever buy from a factory that doesn’t test its equipment before crating it. A dependable partner will gladly prove their quality assurance process:Impact Testing: Every single HB30G breaker body should undergo a rigorous hydraulic and pressure-test on a specialized test bench before shipment to verify that stroke rates, operating pressure, and oil flow align with the technical catalog.Certifications: Look for recognized quality management benchmarks such as CE certification (essential for European projects) and ISO9001.
7. Strong After-Sales Support and Technical DocumentationFor global buyers, international freight makes returns virtually impossible, which is why upfront support is vital. A reputable supplier provides:A transparent warranty policy (typically a 12-month warranty on major components like the cylinder, piston, and front head). Detailed technical documentation, including complete parts catalogs, exploded schematics, and bilingual installation manuals.Direct access to mechanical or hydraulic engineers who can guide your team through pressure settings, nitrogen gas charging adjustments, and troubleshooting over video or email.
“Do you use 20CrMo alloy steel for the main body?”
“Can you provide a 100% fitment guarantee based on my ‘Golden Three Parameters’?”
“Does your HB30G use high-temperature seals for the Middle East market?”
