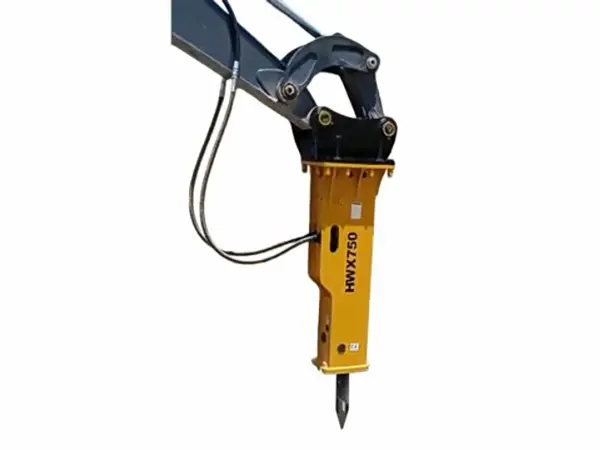

Maximize your excavation efficiency with the HWX750 (SB43) Silent Type Hydraulic Breaker. Specifically engineered for 6-8 ton mini and midi excavators, this premium rock breaker combines extreme impact power with advanced noise-reduction technology.

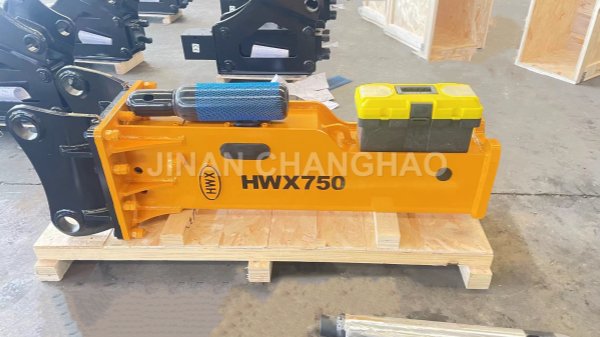

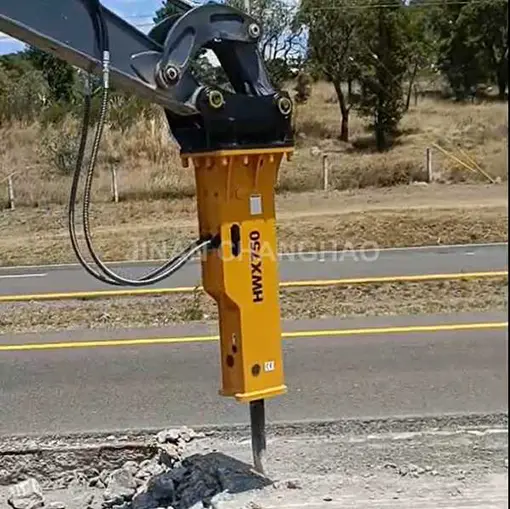

Hydraulic rock breaker SB43 for CAT 308 Komatsu PC78 Kubota KX080

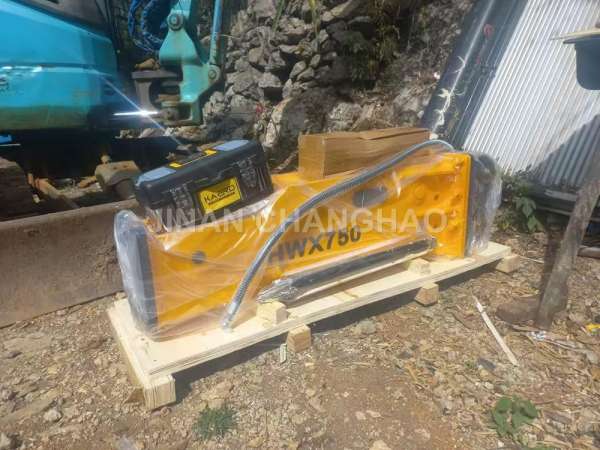

Box type silent hydraulic concrete breaker SB43 for urban demolition
Whether you are working on urban demolition, trenching, or road construction, the HWX750 delivers consistent performance in the toughest conditions. Its “Silent Type” box-frame design not only protects the main body from wear and tear but also significantly reduces noise levels, making it the ideal choice for residential projects and environmentally sensitive areas.

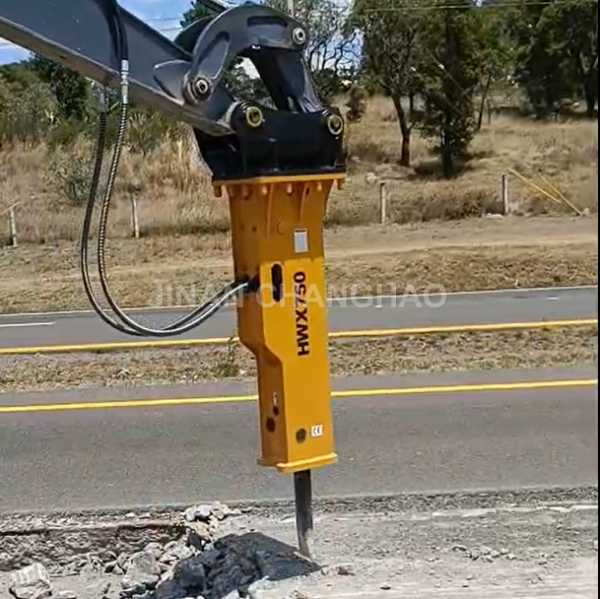

High impact energy SB43 hydraulic hammer with anti-scoring piston

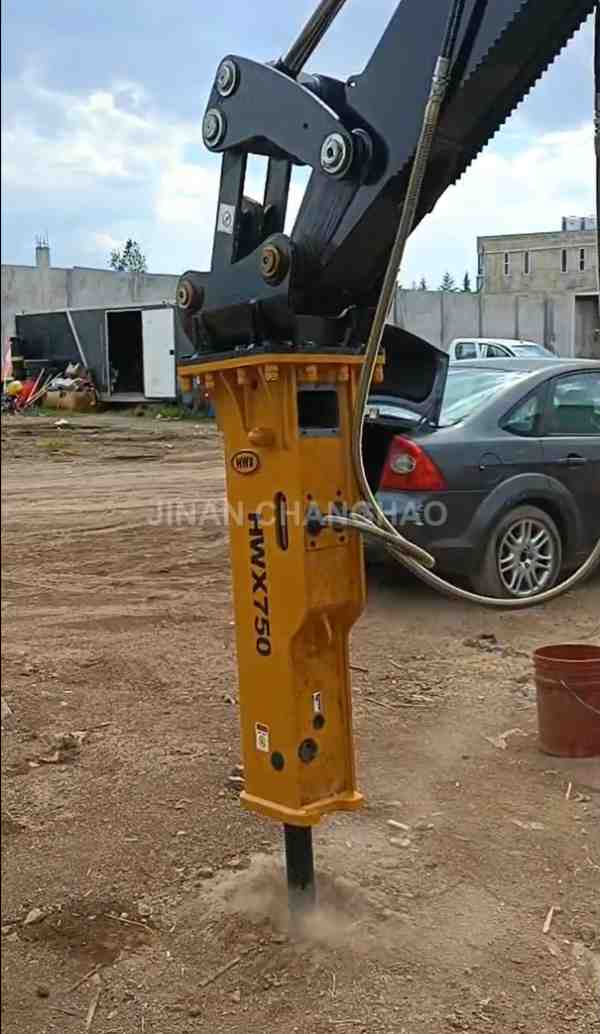

HWX750 silent hydraulic hammer compatible with Kubota KX080 excavator
Key Specifications & Benefits:
Perfect Compatibility: Precision-matched for 6-8 ton excavators.
JNCH HWX750 (SB43) hydraulic hammer is fully compatible with major 6-8 ton excavators, including the Kubota KX080, CAT 307/308 series, Komatsu PC78, and JCB 86C-1. We provide customized mounting pins and quick-hitch adapters for these specific models to ensure immediate ‘plug-and-play’ operation.”
Enhanced Durability: Features a high-quality alloy steel piston and through-bolt design to prevent scoring and breakage.
Low Noise, High Power: The fully enclosed housing (Silent Type) minimizes vibration and decibel output while maintaining maximum impact energy.
Optimized Hydraulic System: Low oil flow requirements ensure the hydraulic breaker works seamlessly without overheating your excavator’s hydraulic system.
Parameters of HWX750 hydraulic breaker:
| Model | UNIT | HWX750 |
| Weight | Kg | 400 |
| Length | mm | 1300 |
| Working Pressure | kg/cm² | 110-160 |
| Oil Flow | L/min | 35-65 |
| Impact Rate | bpm | 500-700 |
| Oil hose dia. | inch | 1/2 |
| Chisel Dia. | mm | 75 |
| Chisel Weight | kg | 21 |
| Excavator | ton | 6.0-8.0 |

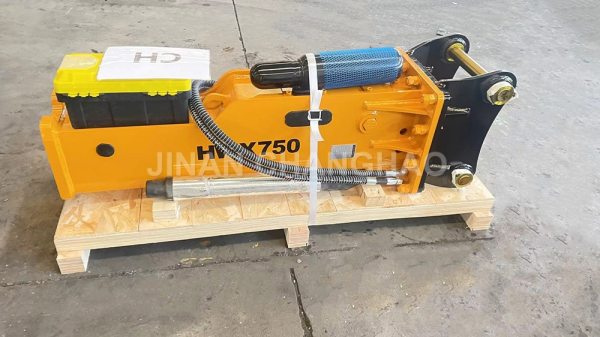

Soosan type SB43 hydraulic hammer concrete breaker 75mm chisel

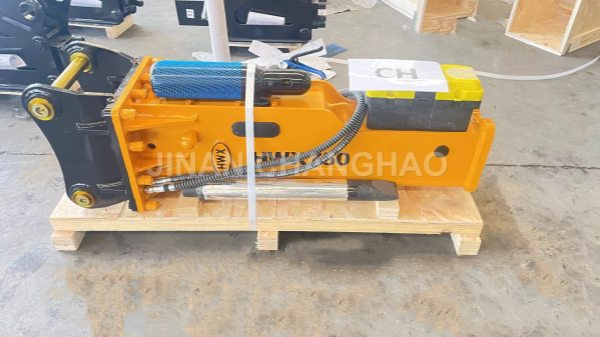

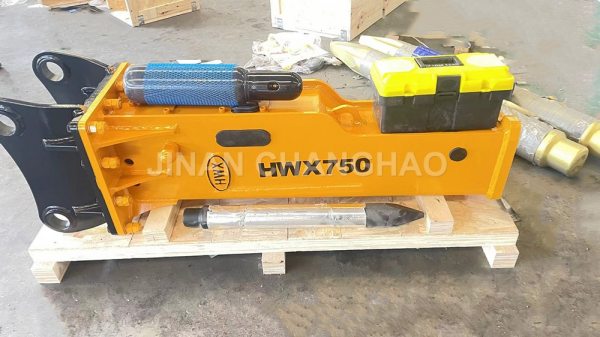

Silent type HWX750 hydraulic breaker for 7 ton excavator
Guideline for selecting suitable hydraulic breaker for your excavator:
When matching your excavator model with hydraulic breakers (such as the SB43/HWX750 mentioned previously), understanding the specific weight distribution is crucial for ensuring the correct match of hydraulic flow and pressure.
- Hydraulic Flow Matching: This ensures the hydraulic breaker maintains a high impact frequency without causing the hydraulic oil to overheat.
- Structural Stability: The SB43 hydraulic breaker (including the housing) weighs approximately 400kg. When mounted on a 6-8 ton excavator, it provides sufficient downforce for breaking while maintaining machine stability, preventing tipping risks during side-loading operations.
Application Scenarios: Pairing these excavators with the SB43 hydraulic breaker is considered a “Golden Combination.” It is widely utilized in municipal maintenance, indoor demolition, and rock breaking in landscaping projects.
