RECOMMENDED APPLICATIONS:
Specifically designed for ditch maintenance and
construction. Also useful in grading and slope work. For
high capacity buckets, use the next weight class up in
Ditching Bucket, except long reach machines.
STANDARD SIZES AVAILABLE:
Standard widths range from 48″ – 84″, and capacities of .64
cu. yd. – 3.81 cu. yd.

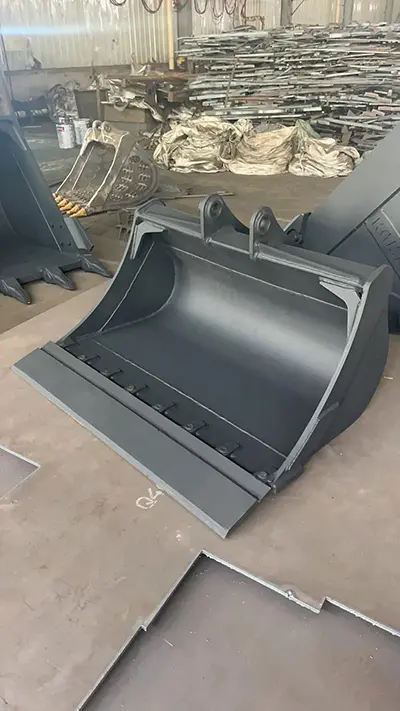

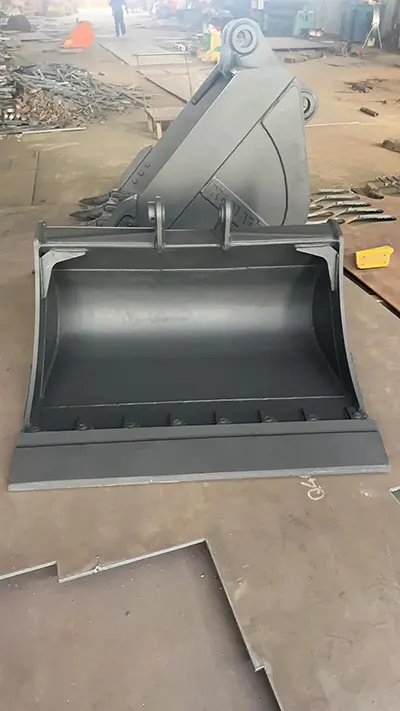

1. Reversible Bolt-on Cutting Edge (BOCE)
The Technology: Standardized with a high-strength, double-bevel cutting edge secured by heavy-duty grade 10.9 structural plow bolts.
The Benefit: Fabricated from NM400 wear steel. Instead of wearing down the bucket’s main lip, the operator simply unbolts the edge, flips it 180° (as it is double-bevel), and continues working—doubling the wear life and eliminating welding maintenance.
2. Low-Profile Compact Geometry
The Technology: Designed with an optimized, shallow profile that keeps the bucket floor’s pivot radius as close to the excavator stick pins as possible.
The Benefit: Reduces the tipping load and keeps the center of gravity closer to the machine, preserving over 95% of the excavator’s original breakout force and ensuring maximum stability, especially on mini-excavators.
3. Integrated Dual-Dampening Side Cutters
The Technology: Built with vertical NM400 side cutters and horizontal reinforcement plates welded to the lower side walls.
The Benefit: Protects the side plates from abrasive wear when rubbing against trench walls and provides clean, vertical cuts when profiling slopes.
4. Drainage / Escape Holes (Optional)
The Technology: Precision laser-cut drainage holes on the back and sides of the bucket.
The Benefit: Allows excess water to quickly escape when dredging riverbeds or cleaning wet ditches, ensuring you only haul and load solid material (soil/gravel) rather than heavy water weight, improving fuel efficiency.
5. Heavy-Duty Dual-Rib Tubing Reinforcement
The Technology: The upper rear torque tube and back floor are reinforced with cold-drawn structural steel pipes and thick wear-straps.
The Benefit: Keeps the wide bucket body perfectly rigid under full torsional load. It prevents bending or warping when the corners of the bucket strike roots or buried rocks on slopes.
1: Unmatched Job-Site Versatility
The Pitch: “Don’t keep changing attachments. The HWX Grading Bucket is your ‘all-in-one’ finish tool. It is specifically designed for ditch maintenance, mass topsoil spreading, embankment profiling, and large-area landscaping. One bucket does it all, keeping your excavator productive from dawn to dusk.”
2: Standardized North American Sizing
The Pitch: “We manufacture standard widths from 48″ to 84″ with capacities ranging from 0.64 to 3.81 cu. yd., perfectly matching North American civil engineering standards. Whether your customer operates a 5-ton mini-digger or a 35-ton heavy-class machine, we supply the exact width and pin-dimensions for seamless plug-and-play integration.”
The “Zero-Welding” Maintenance Advantage
The Pitch: “For rental fleets, downtime is lost revenue. Our reversible Bolt-on Cutting Edge (BOCE) means your mechanics never have to spend hours welding on new lip plates. A simple wrench is all it takes to rotate or replace the wear edge right on the job site. Keep your machines in the field and out of the welding shop.”
“How long does the edge last?”
“Our Bolt-on Cutting Edge is made from genuine NM400. Under standard dirt and mud conditions, it lasts 2 to 3 times longer than standard carbon steel. More importantly, since it is reversible, when the first edge wears down, you simply unbolt it and flip it around. You effectively get two wear lives in one purchase—with zero welding required.”
