The HWX Tilting V-Ditch Bucket (also known as a Tilting Trapezoidal Bucket) is designed specifically for digging and shaping V-shaped drainage ditches and irrigation channels in a single pass. Unlike a standard V-bucket, this version includes a hydraulic tilting mechanism, allowing the operator to adjust the bucket angle to perfectly match the required slope, even if the excavator is sitting on uneven ground.

Key Features:

1. Precision Tilting Capability (±45°)

Feature: Integrated hydraulic cylinder allows the bucket to tilt left and right.
Benefit: Gives the operator total control over the ditch angle. You can create perfectly uniform slopes for water flow without having to move the excavator’s tracks, saving time and fuel.

2. One-Pass V-Shape Efficiency

Feature: The bucket is pre-formed into a precise trapezoidal/V-shape.
Benefit: It digs the bottom and the sloped sides of a ditch simultaneously. This eliminates the need for manual raking or multiple passes with a standard bucket, increasing productivity by up to 300%.

3. Reinforced Heavy-Duty Design

Feature: Constructed from high-tensile Q355B steel with reinforced stress points.
Benefit: Designed to handle the twisting forces of tilting while digging in hard-packed soil or clay.

4. Armored Hydraulic Protection

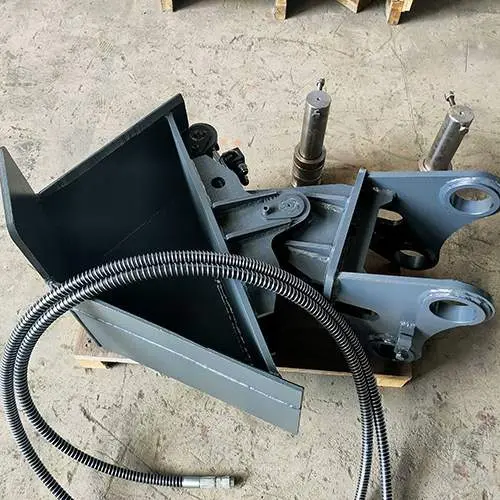

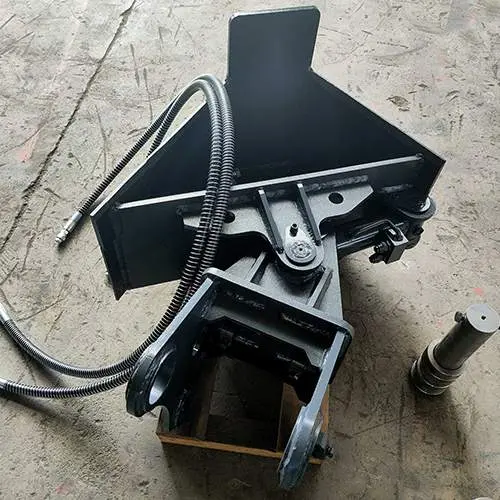

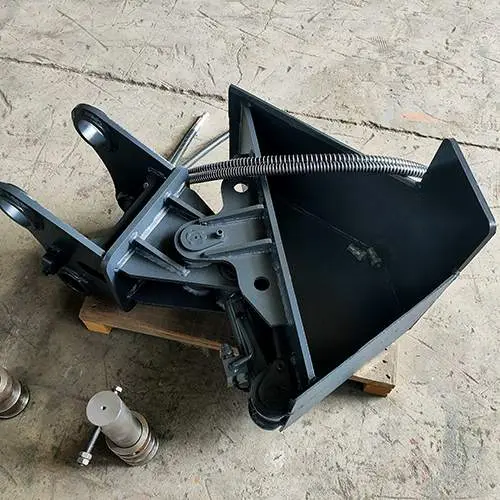

Feature: As seen in your photos, the hydraulic hoses are protected by heavy-duty metal spiral wrapping.
Benefit: Protects the hoses from being cut or abraded by sharp rocks and debris, which is critical for long-term reliability in trenching work.
Standard Auxiliary Connections: Designed for seamless integration into the excavator’s existing auxiliary hydraulic piping loop.

5. Low-Profile Mounting

Feature: The tilting unit is designed to be compact and close to the arm.
Benefit: Keeps the center of gravity low and preserves the maximum breakout force of mini-excavators (like the 1.5t to 8t range).

Our Advantages:
For Contractors : “Finish a 100-meter drainage project in half the time. The HWX Tilting V-Bucket replaces the need for a secondary grader or manual labor team to finish the slopes.”
For Dealers : “A high-demand attachment for the landscaping and agricultural sectors. Our Tilting V-Bucket is a ‘Value-Added’ tool that commands higher rental rates and differentiates your inventory from basic suppliers.”

The bucket is a “problem solver” for roadside drainage and vineyard/orchard irrigation.

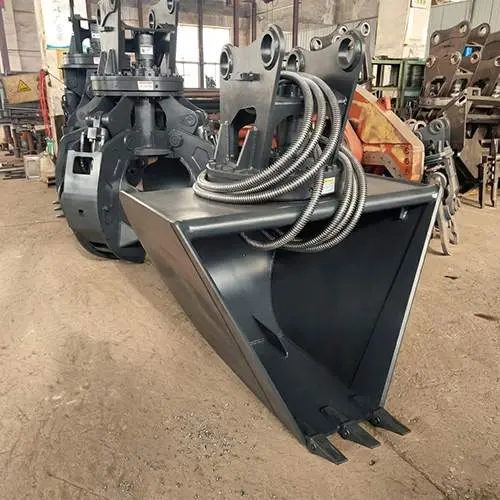

Excavator Hydraulic Rotating V-Bucket, this specific model is a high-end version equipped with a 360-degree hydraulic rotation motor at the top, along with armored hydraulic hoses wrapped in protective steel springs.

360° Rotating & Tilting Grading Bucket for Excavator | Hydraulic Tiltrotator Clean-up Bucket
