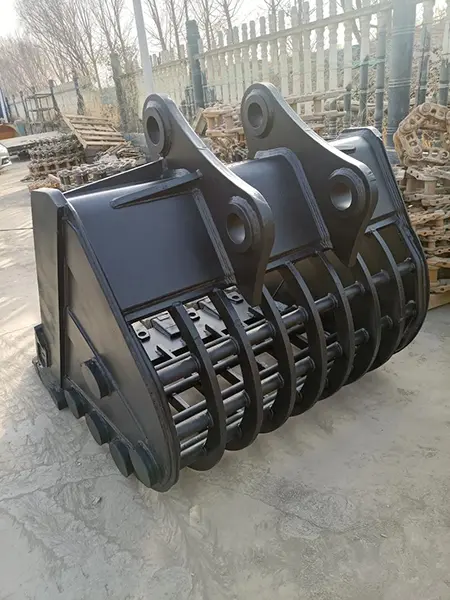

Engineered for maximum durability in high-impact environments, this 1.8m³ Heavy-Duty Rock Skeleton Bucket (Screening Bucket) is designed for efficient material separation, land clearing, and mining applications. Built entirely from premium high-strength manganese steel, this bucket easily separates large rocks, concrete rubble, and debris from soil and sand, significantly reducing cycle times and operational costs.
Key Technical Specifications
Capacity: 1.8 m³ (Ideal for large-scale earthmoving and mining excavators)
Material: Premium High-Strength Manganese Steel Plate (Q345B/NM400 equivalent for superior wear and impact resistance)
Cutting Edge (Tooth Plate): 60mm Thickened Base Plate
Side Plates: 40mm Reinforced Structural Plates

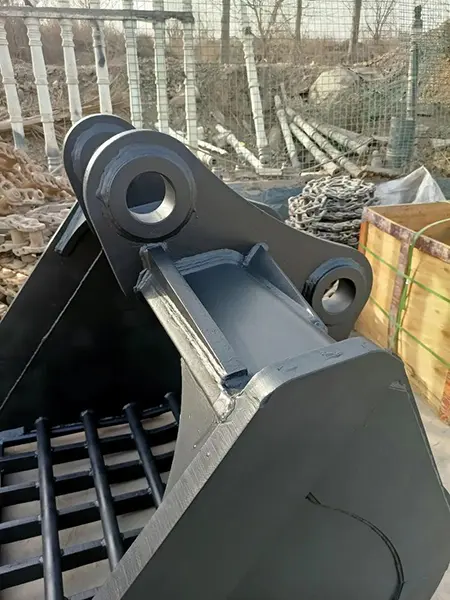

Ear Plates (Hitch Brackets): 40mm Heavy-Duty Mounting Ear Plates

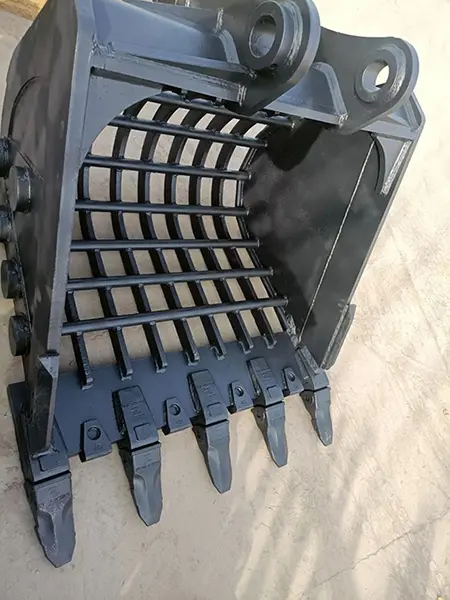

Screening Grid: 50mm Solid Round Steel Bars

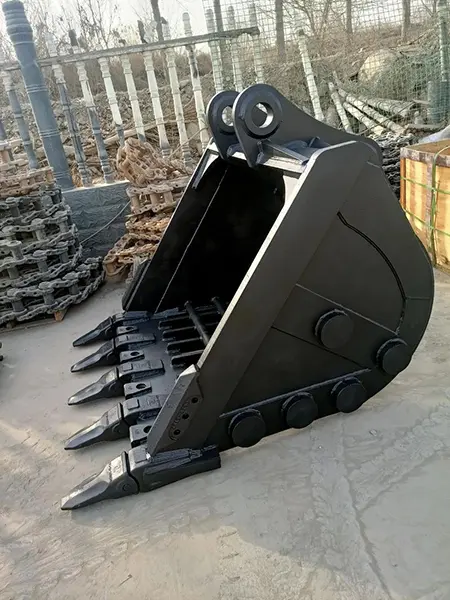

Bucket Teeth: Heavy-Duty Komatsu PC400-compatible Bucket Teeth & Adapters
Premium Design Features
Reinforced Structural Integrity: Featuring a ultra-thick 60mm cutting edge alongside 40mm side and ear plates, this bucket is built to withstand massive breakout forces from large excavators without deformation.
High-Efficiency Grid Design: Constructed with 50mm solid round manganese steel bars, the screening grid offers optimal spacing for fast material sorting while maintaining maximum structural stiffness under heavy rock loads.
Mining-Grade Ground Engaging Tools (GET): Equipped with standard Komatsu PC400 style bucket teeth and shroud protection to ensure exceptional penetration, high wear resistance, and easy replacement.

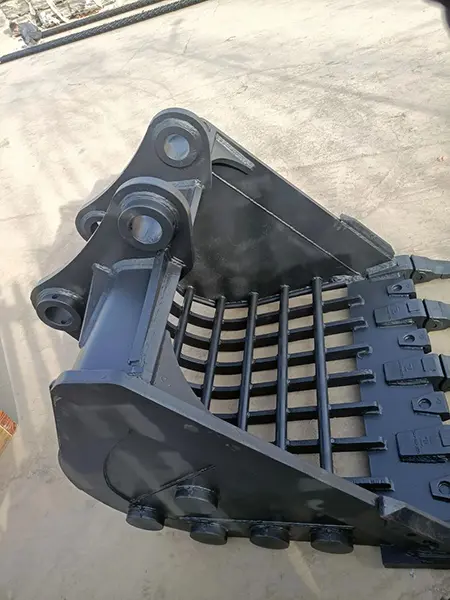

Wear-Resistant Side Protectors: The side profiles feature heavy-duty round wear buttons/pads to protect the structural welds during abrasive rock handling.
⚙️ Technical Specifications (Deep-Dive)
| Component | Professional Specification | Why it Matters |
|---|---|---|
| Capacity | 1.8 m³ (Cubic Meters) | High-volume throughput for large-scale earthmoving. |
| Tooth Base Plate | 60mm Thickened Armor Plate | Prevents bending and cracking under extreme impact. |
| Bucket Teeth | Komatsu PC400 Series Forged Teeth | Industry-standard penetration and easy replacement. |
| Side Plates | 40mm High-Tensile Steel | Resists abrasive wear from jagged rocks. |
| Hanger (Ear) Plates | 40mm Reinforced Steel | Ensures zero-deformation at the main pivot points. |
| Screening Bars | 50mm Solid Round Manganese Steel | High-impact resistance; prevents “clogging” or snapping. |
| Material | Premium Manganese (Mn) Steel | Work-hardens under impact for a longer service life. |
Applications
Quarrying & Mining: Primary separation of blasted rock and boulders.
Construction & Demolition: Sorting concrete rubble, rebar, and brick from reusable topsoil.
Land Clearing: Removing large rocks, roots, and debris while leaving vital soil behind.
River Dredging: Separating large river stones from silt and water.
Why Choose Our Skeleton Buckets?
As a leading manufacturer of premium excavator attachments, we combine precision welding, advanced heat treatment, and rigorously tested raw materials to deliver buckets that outlast standard aftermarket options.
Customization Available: We provide OEM/ODM services. Grid spacing, ear plate configurations, and tooth brands can be customized to seamlessly match your specific excavator models (Sany, Komatsu, Caterpillar, Hitachi, etc.).
