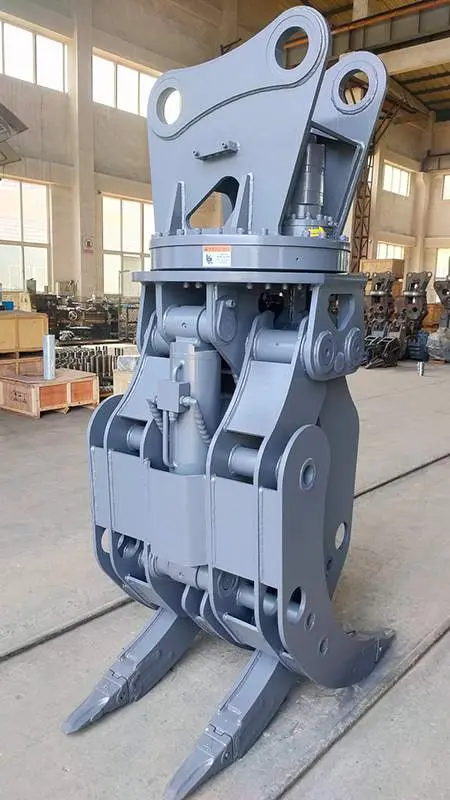

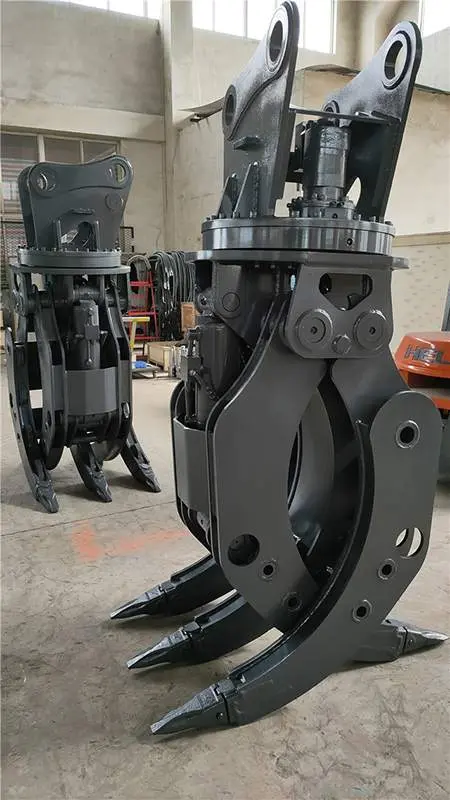

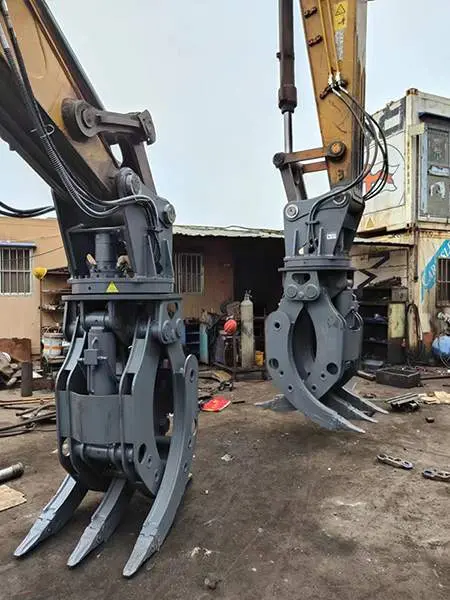

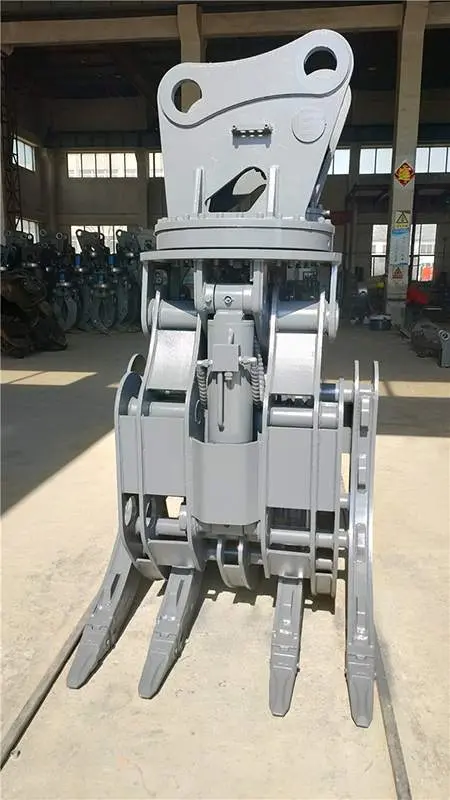

The hydraulic grapple is a heavy-duty, hydraulically powered grabbing attachment used by professional frorest, demolition and recycling contractors. The configuration featured uses a dual-cylinder design with a heavy-duty interlocking jaw structure ( equipped with durable replaceable excavator teeth at the tips). This design provides maximum gripping stability, high clamping force, and clean penetration into stacked materials. It acts like a “mechanical hand” for the excavator, allowing for extremely accurate sorting of waste, rocks, timber, and scrap metal. Unlike standard grapples, this “Selector” version features a sophisticated 360° hydraulic rotation system and a robust, fully protected cylinder design, making it capable of picking out specific materials from a pile of mixed debris with ease.
Key Features & Design Highlights
Infinite 360° Hydraulic Rotation
Equipped with a robust internal hydraulic motor and and a heavy-duty swing bearing.(visible at the top section below the adapter mount). This allows for continuous 360 degree clockwise and counter-clockwise rotation, enabling operators to precisely position, align, and grab materials from any angle without moving the excavator tracks.
Benefit: Allows the operator to pick up a single beam, log, or rock and rotate it to the perfect angle for loading or placement without moving the excavator’s tracks. This drastically reduces fuel consumption and ground damage.
Dual Hydraulic Cylinder Configuration:
Unlike simpler single-cylinder grapples, this model features two vertical hydraulic cylinders (fully enclosed with integrated protective steel shielding). The dual-cylinder system ensures balanced, uniform closing pressure across both sides of the jaws and delivers exceptional holding power.
High-Strength Wear-Resistant Jaws
Feature: The tines and cutting edges are manufactured from NM400 wear steel. The chassis includes reinforced reinforcement ribs along the outer curves of the jaws to handle the high torsional stresses encountered during heavy pulling or sorting operations.
Benefit: These materials are designed to withstand the abrasive nature of concrete and scrap metal, lasting 3–4 times longer than standard carbon steel.
Replaceable Pin-on Teeth/Tips
Feature: The tips of the jaws feature replaceable rock teeth. When the tips wear down, you only need to change the teeth rather than welding a new edge. This makes maintenance fast and keeps the grapple “sharp” for better penetration into piles.These teeth ensure sharp penetration into logs, rock piles and scrap metal.
Versatile Universal Adapter Top:
The upper ear plate mounting structure features a dual-pin layout designed to easily connect either directly to the excavator’s standard arm or via a quick hitch coupler system, facilitating fast on-site installation.
The “Swiss Army Knife” of Demolition: “From tearing down a wall to sorting scrap metal into different bins, the HWX Selector Grapple handles the entire lifecycle of a demolition project, eliminating the need for manual sorting crews.”
Engineered for Reliability: “Our protected cylinder design is a favorite among EU and Australian contractors because it eliminates the most common failure point on the job site. Less maintenance means more profit.”
Precision Control: “Equipped with premium motors and high quality seals, our rotation is smooth and stutter-free, allowing the operator to pick up something as small as a single pipe.”
“Selector Grapples are the most profitable attachments for rental fleets because they are in high demand for urban demolition projects where space is tight and precision is required.”
ROI ALERT: Save up to $120 per load by separating recyclables from general waste at the source.”
Common Applications
Thanks to its continuous rotation and powerful grip, this attachment is highly utilized for:
-
Forestry Operations: Loading, unloading, and stacking logs, timber, and large wood poles.
-
Demolition & Sorting: Tearing down structures and sorting debris like wood, concrete chunks, rebar, and steel scraps.
-
Land Clearing & Landscaping: Moving boulders, heavy brush, tree roots, and large stones efficiently.
Comparison Table: Selector Grapple vs. Orange Peel Grapple
| Feature | Selector Grapple (HWX-SG Series) | Orange Peel Grapple (HWX-OP Series) |
|---|---|---|
| Visual Look | typically 2+3 Jaws (Box-like when closed) | 4 to 6 Tines (Fingers) |
| Primary Motion | Rigid 360° Rotation | 360° Rotation (Usually Pendulum/Free-swing) |
| Best For | Sorting & Selective Demolition | Bulk Material Handling & Scrap |
| Grip Style | Precise & Controlled (picks up single items) | Enveloping (wraps around piles of material) |
| Materials | Bricks, timber beams, rocks, concrete slabs | Loose scrap metal, crushed cars, mixed waste |
| Cylinder Design | Internal & Protected (safeguarded from debris) | External & Independent (each tine has its own) |
| Application | Urban demolition, recycling centers, masonry | Scrap yards, steel mills, large-scale recycling |
| Closing Type | Jaws meet edge-to-edge for fine sorting | Tines overlap to “scoop” loose materials |
Which one should your customer buy?
1. Choose the Selector Grapple IF:
Precision is priority: You need to pick up a single steel beam from a pile or sort wood from concrete to save on landfill fees.
You work in Demolition: The protected cylinder and high-strength jaws are built for “tearing down” structures where debris falls constantly.
You need a “Hand”: It works like a human hand—ideal for placing large rocks in landscaping or feeding a specific material into a primary crusher.
2. Choose the Orange Peel Grapple IF:
Volume is priority: You need to move the maximum amount of loose scrap metal or waste in the shortest time.
You handle irregular piles: The independent tines wrap around messy, tangled scrap (like old pipes or car bodies) much better than a two-jaw grapple.
You work in a Scrap Yard: It is the industry standard for loading high-sided trailers and feeding shredders where bulk volume is more important than sorting accuracy.
“The Selector Grapple saves you money by SORTING; the Orange Peel Grapple makes you money by LOADING.”
For the Contractor: “If you are paying by the ton for mixed waste, buy the Selector Grapple. It will pay for itself by allowing you to separate your concrete, wood, and metal on-site, drastically reducing your tipping fees.”
For the Dealer: “Stock both! The Orange Peel is a fast-seller for your industrial and recycling clients, while the Selector Grapple is the premium choice for your high-end demolition and civil engineering customers.”
