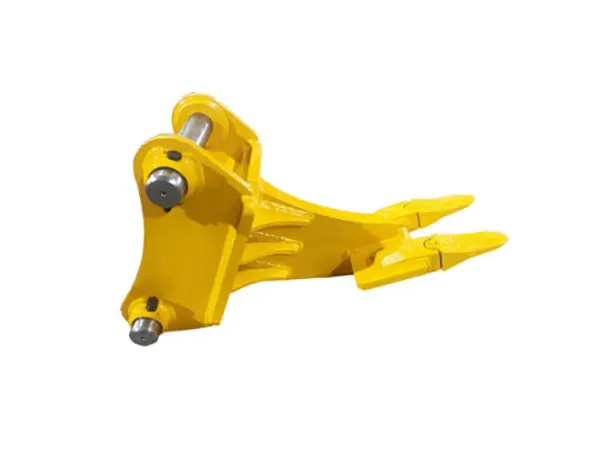

Details of excavator double teeth ripper
Product name: ripper
Features:
Using Q345 manganese plate steel
High strength and corrosion resistance
The pin is made of 42CrMo alloy steel
Built-in oil channel, high strength and good toughness.
| Type | Unit | HWX-Mini | HWX-02/04 | HWX-06 | HWX-08 | HWX-10 | HWX-17 |
| suit for excavator | ton | 1.5-4 | 4-8 | 14-18 | 20-25 | 26-30 | 36-45 |
| Center distance | mm | 85-200 | 220-310 | 390 | 465 | 515 | 580 |
| width | mm | 310 | 425 | 540 | 665 | 735 | 800 |
| Height | mm | 600 | 670 | 910 | 1275 | 1560 | 1550 |
| shaft diameter | mm | 25-40 | 45-55 | 60-70 | 70-80 | 90 | 100-120 |
| opening size | mm | 90-150 | 180-230 | 220-315 | 300-350 | 350-410 | 370-480 |
| weight | kg | 50 | 80 | 280 | 400 | 550 | 900 |
