Precision Engineered for MSB MS600 Series Our MS600 through bolts (also known as side rods) are the structural backbone of your hydraulic hammer. Specifically designed to withstand the violent 400-800 BPM impact cycles of the MSB600H, these bolts ensure the integrity of the cylinder, front head, and back head assembly.
Advanced Vacuum Heat Treatment We utilize Integral Quenching and Tempering to eliminate internal stresses. This process ensures the bolt does not become brittle under heavy rock-breaking operations, significantly reducing the risk of sudden fracture that can lead to catastrophic hammer failure.
Vibration-Damping Thread Profile Each bolt features CNC-ground threads with precise pitch control. This high-tolerance manufacturing prevents the nuts from loosening due to high-frequency vibrations, maintaining constant clamping force throughout the equipment’s service life
Maintenance & Installation Guide (High Value Content)
Installation Tip: To ensure maximum service life, MS600 through bolts should be tightened in a cross-pattern. We recommend a multi-stage torqueing sequence to reach the OEM specified clamping load. Check bolt tension every 50 working hours to prevent cylinder misalignment.
MS600 hydraulic breaker through bolt for your MSB hydraulic hammer

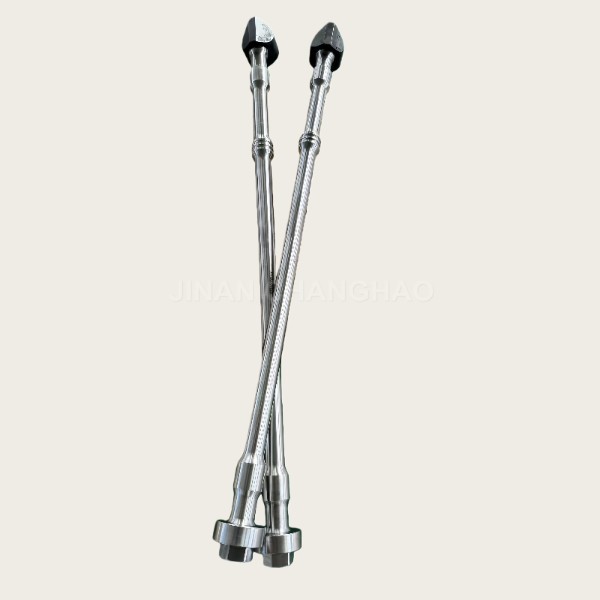

excavator hammer through bolt
| Component | Technical Specification | Material Standard |
|---|---|---|
| Compatible Model | MSB MS600 / MSB600H | High-Tensile Alloy Steel |
| Material Grade | Class 12.9 (Ultra-High Strength) | 42CrMo (Chromium-Molybdenum) |
| Heat Treatment | Integral Quenching & Tempering | Vacuum Carbon-Nitrogen Co-diffused |
| Hardness Level | HRC 38-42 (Core) / HRC 58-62 (Thread) | Fatigue Resistant Design |
| Tensile Strength | ≥ 1200 MPa | Impact Resistance Certified |
Strengthen Your Konan-Breaker: MSB MS600 Hydraulic Breaker Through Bolt & Nut
Is your MSB MS600 hydraulic hammer showing signs of wear? The Through Bolt is a vital but often overlooked component!

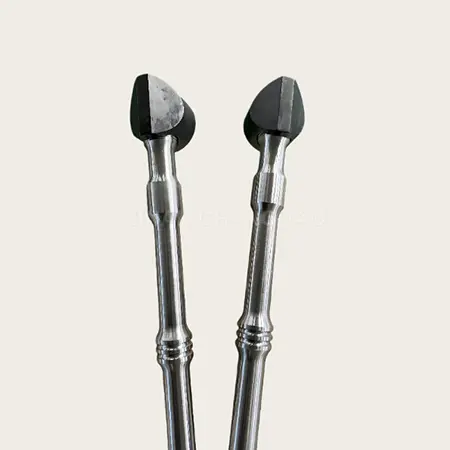

excavator breaker through bolt

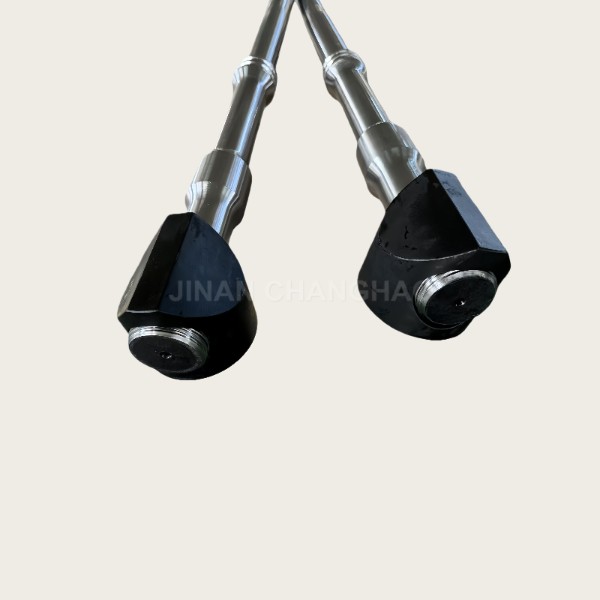

hydraulic breaker through bolt MSB600

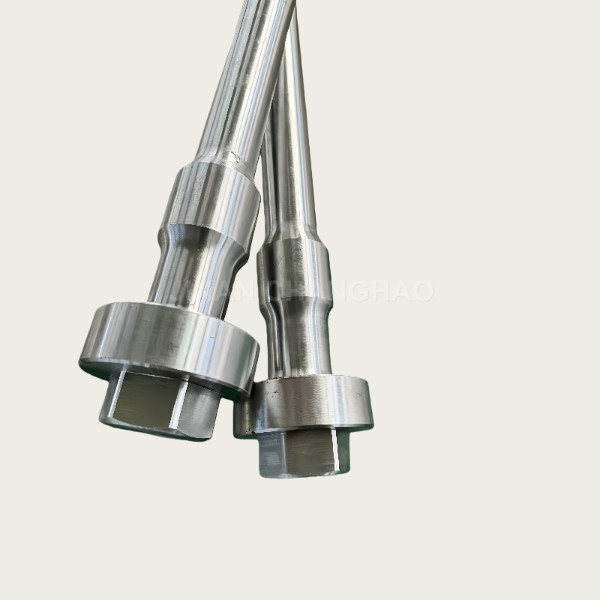

hydrualic hammer through bolt

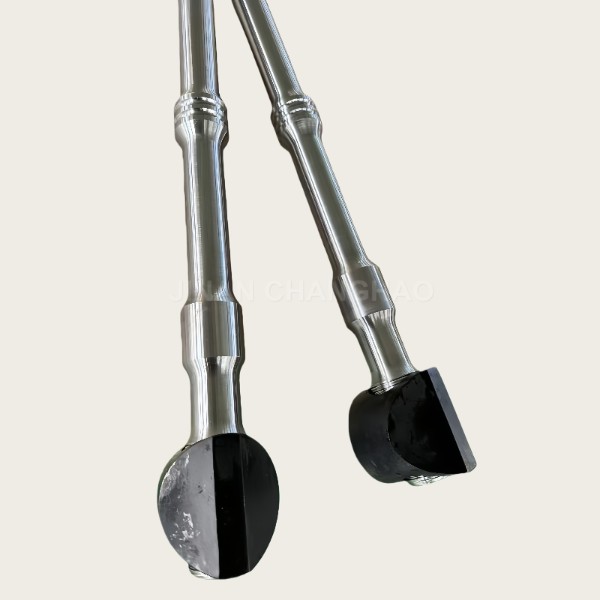

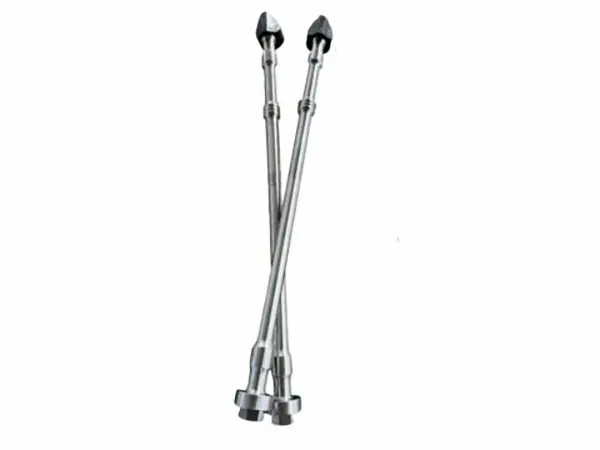

MSB600 through bolt
Precise Fit for MSB MS600 model
High-Tensile Steel for maximum strength & durability
Vibration-Resistant to prevent loosening
Cost-Effective solution to avoid major repairs
Keep your projects running smoothly with our high-quality replacement parts.
Contact us now to Learn More & Order Now!
