The Structural Core of SB43 Breakers As a critical tensioning component, the through bolt (side rod) for the SB43 series must sustain constant pre-load under the high-frequency vibrations of a 75mm diameter chisel system. Our SB43 bolts are engineered to maintain structural integrity across the 500-900 BPM (Blows Per Minute) cycle typical for 6-9 ton excavator attachments.
High-Grade 42CrMo Performance We prioritize 42CrMo (Chromium-Molybdenum) alloy for our SB43 bolts. Compared to standard 40Cr, 42CrMo offers superior hardenability and impact toughness, preventing brittle fracture in low-temperature environments or during heavy-duty concrete demolition tasks.
Critical Torque Requirement: SB43 side bolts require precise tensioning to prevent cylinder misalignment. Always use a calibrated torque wrench. Inspection Frequency: We recommend checking the side rod nuts for loosening every 50-100 working hours. Any loss in clamping force can lead to internal oil leakage or cracked front heads.
Technical Specification Matrix
| Specification | Technical Detail | Application Standard |
|---|---|---|
| Compatible Model | Soosan SB43 | 6.0 – 9.0 Ton Excavators |
| Strength Class | Class 12.9 (Ultra-High Tensile) | ASTM A574 / ISO 898-1 |
| Material Matrix | 42CrMo Alloy Steel | Heat Treated & Tempered |
| Thread Processing | CNC Precision Rolling | Enhanced Fatigue Strength |
SB43 Hydraulic Breaker Through Bolt with 42CrMo 40Cr Material

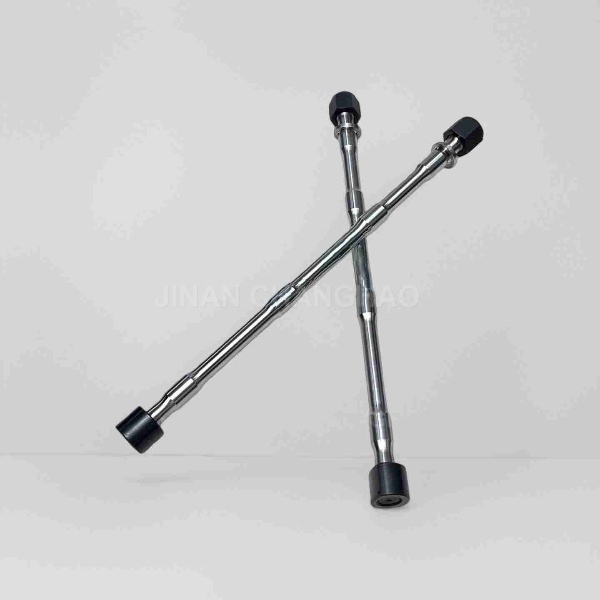

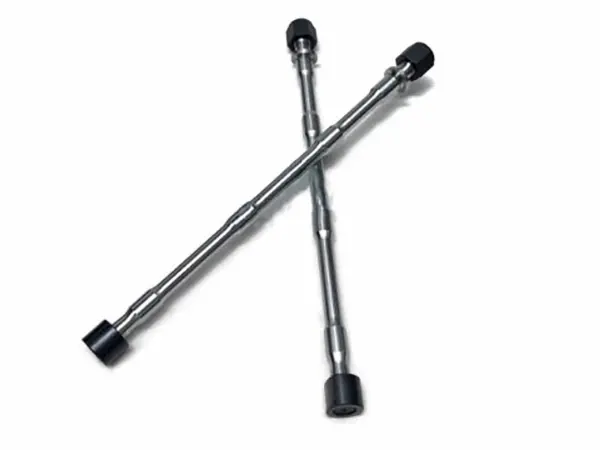

SB43 through bolt

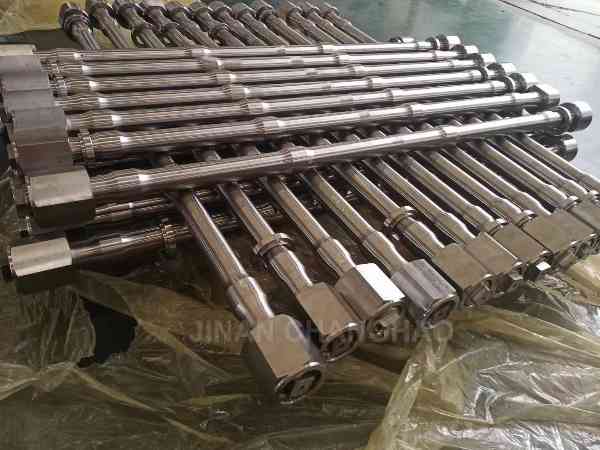

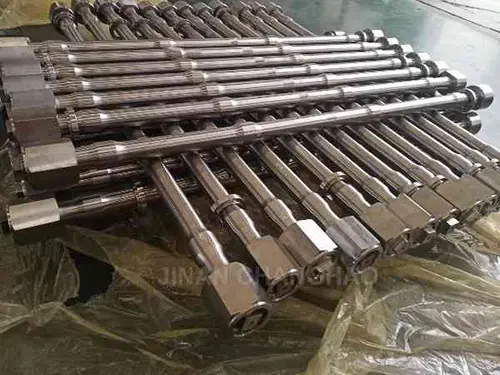

SB43 hydraulic breaker through bolt

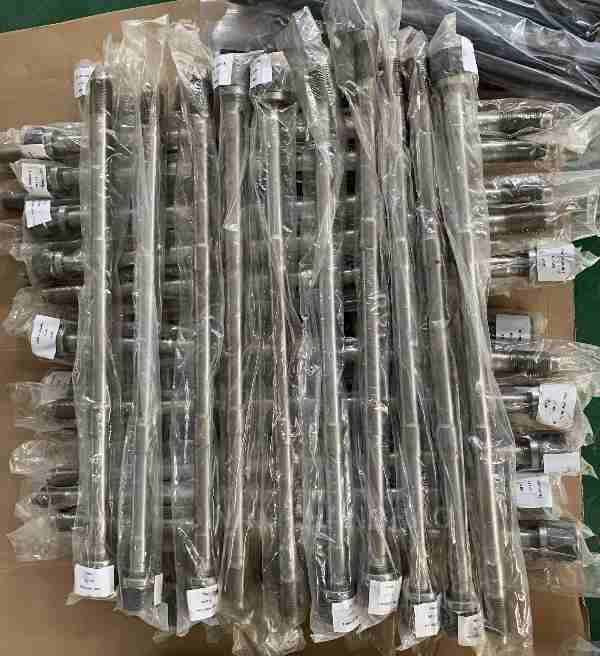

SB43 hydraulic hammer through bolt
It is made of high-strength alloy steel, such as 42CrMo, and possesses high strength, toughness and fatigue resistance, which can meet the severe stress requirements of the hydraulic breaker during operation.
As a specialized hydraulic breaker through bolts manufacturer, we engineer these essential components to the highest standards of durability and performance. We provide a reliable, high-strength alternative for various breaker models, helping global clients in the construction and mining sectors safeguard their operations and optimize total cost of ownership.
We manufacturer hydraulic breaker through bolt for SOOSAN-SB20 SB30 SB40 SB43 SB45 SB50 SB60 SB70 SB81 SB121 SB131. If you are looking for SB series hydraulic breaker spare parts, do not hesitate to contact us.
