Precision-engineered main body assemblies for maximum impact efficiency and durability in demanding environments.

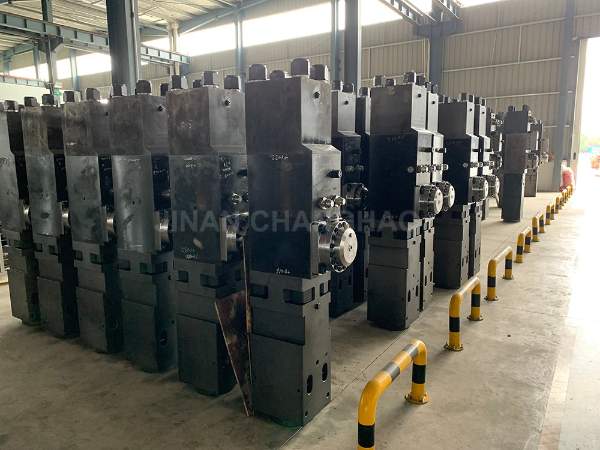

SB70 rock breaker main body
The Hydraulic Breaker Main Body Assembly is the core power cell of any hydraulic breaking system. It’s responsible for converting hydraulic energy into high-impact mechanical force, driving productivity in applications from mining to demolition. For models like the SB70, SB81, SB121, and B131, a robust and reliable main body assembly isn’t just a component—it’s the heart of your crushing power.
Designed for heavy-duty performance and extended service life, our main body assemblies ensure that your equipment runs longer, hits harder, and breaks smarter.

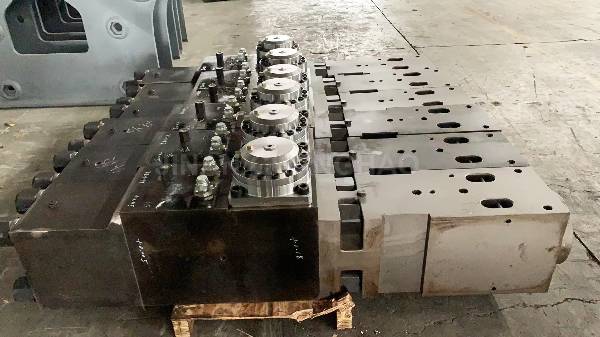

SB81 hydraulic hammer main body
Product Overview: Engineered for Impact
The SB70, SB81, SB121, and B131 Hydraulic Breaker Main Body Assembly is a precision-integrated unit that combines critical components into one high-performance system. It serves as the central power conversion mechanism, delivering consistent impact energy to meet the demands of rugged daily use.
These assemblies are OEM-compatible and manufactured to meet or exceed strict international technical specifications, including those derived from standards such as GB/T 7935-2005 “Hydraulic fluid power — General requirements for hydraulic components” . This ensures reliable integration and optimal performance across all compatible breaker models.

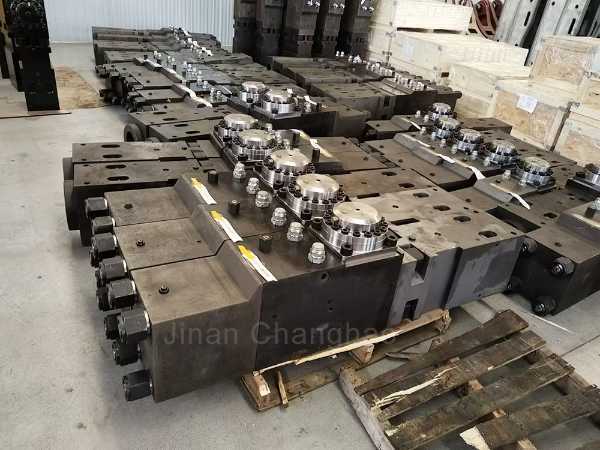

SB121 rock breaker main body
Technical Features & Design Advantages
- High-Strength Core Components
Cylinder Body: Manufactured from high-tensile alloy steel, the cylinder is machined to precise tolerances. It houses the piston, control valve, and hydraulic channels, offering exceptional structural integrity and resistance to shock loads .
Piston: The piston, a core moving part, is crafted from high-strength alloy steel and undergoes precision machining and heat treatment. This enhances its durability and impact resistance, allowing it to withstand millions of high-impact cycles .
Control Valve System: Features an efficient piston control valve (distribution valve) that swiftly alternates hydraulic flow to drive the piston’s reciprocating motion. This ensures smooth cycling, consistent impact frequency, and reliable response under varying loads.
- Advanced Nitrogen Gas Chamber
The Nitrogen Gas Chamber is pre-pressurized and serves multiple critical functions:
Energy Accumulation: Compresses during the piston return stroke to store energy.
Piston Acceleration: Releases energy to assist in accelerating the piston during the impact stroke.
Cushioning Effect: Absorbs residual energy and rebound post-impact, protecting the piston and cylinder from damage .
This design significantly improves energy transfer efficiency and contributes to higher productivity while reducing mechanical stress.
- Comprehensive Sealing System
A robust sealing system includes piston rod seals, guide rings, O-rings, and composite gaskets.
Effectively prevents hydraulic oil leaks, nitrogen leakage, and contamination ingress—common causes of failure in harsh environments .
Maintains system cleanliness and fluid integrity, which is crucial for sustaining performance and extending the assembly’s service life.
- Optional Accumulator Support
For certain high-performance models or larger breakers, the assembly can integrate with an independent accumulator (piston or bladder type).
The accumulator helps absorb hydraulic shock, stabilize system pressure, and supplement instantaneous flow demand, thereby improving efficiency and protecting the overall hydraulic system.

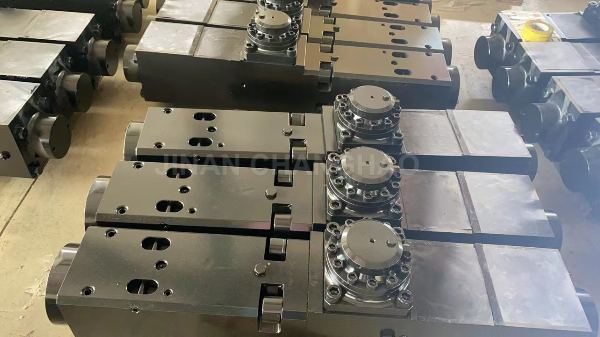

SB131 hydraulic hammer main body
Key Benefits for Your Operations
Superior Impact Energy & Efficiency: Optimized design ensures maximum energy transfer from hydraulic input to output, resulting in faster breaking speeds and higher productivity.
Extended Service Life: The use of premium materials and precision manufacturing reduces wear on components, minimizes downtime, and lowers long-term operating costs.
Easy Installation & Compatibility: Designed as a direct replacement unit, the assembly simplifies maintenance and shortens equipment service turnaround times.
Reliability in Tough Conditions: Engineered to perform consistently in the most demanding environments, including mining, quarrying, trench excavation, and construction demolition.

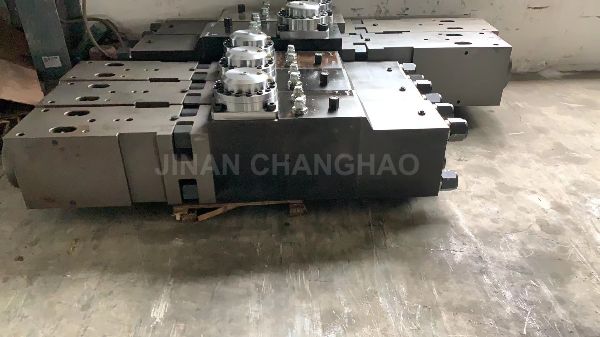

SB81 hydraulic breaker main body
Applications
Our main body assemblies are built to excel across a wide range of heavy-duty scenarios:
Mining & Quarrying: Primary and secondary rock breaking.
Demolition & Construction: Breaking concrete foundations, structures, and reinforced concrete.
Road & Bridge Work: Trench excavation, asphalt breaking, and subsurface rock fragmentation.
Earthworks & Utility Installation.
SB131 hydraulic breaker main body
Why Choose Our Hydraulic Breaker Main Body Assembly?
Quality Assurance: Our production follows rigorous international technical conditions and standards for hydraulic components . Each assembly is tested for leakage, pressure resistance, and performance durability.
Proven Durability: Components such as the piston and cylinder are heat-treated and machined to withstand high-cycle fatigue, ensuring reliable service under continuous heavy loads.
Global Compliance: We adhere to widely recognized hydraulic component norms, making our products a trusted choice for international markets.
Expert Technical Support: Backed by experienced engineers who can assist with installation guidance, troubleshooting, and custom requirements.
Ready to Boost Your Breaker’s Performance?
Don’t let a worn-out main body assembly slow down your projects. Upgrade to a reliable, high-performance core unit designed for the SB70, SB81, SB121, and B131 models.
Contact us today for pricing, technical specifications, and to request a quote. Let’s get your equipment back to breaking its best!
Submit an inquiry now — our team is standing by to assist you.
