When to use a Wedge Type Chisel?
While a Moil Point is designed for deep penetration in standard concrete, our Wedge Type (Flat) Chisel excels in directional rock splitting. The flat blade creates a “wedge effect” that concentrates stress along a single line, making it the superior choice for:
Trenching & Ditching: Precise edge cutting in sedimentary rock.
Asphalt Cutting: Clean separation of road layers without excessive debris.
Reinforced Concrete: Easier navigation around rebar compared to conical tips.
Optimize Your Demolition Efficiency with Our High-Performance Wedge Type Hydraulic Breaker Chisel
Our wedge type hydraulic breaker chisel is precision-engineered for superior rock splitting . Manufactured from premium high-carbon steel and enhanced with advanced heat treatment technology, this specialized chisel delivers exceptional wear resistance and impact toughness, significantly extending service life in demanding working conditions.

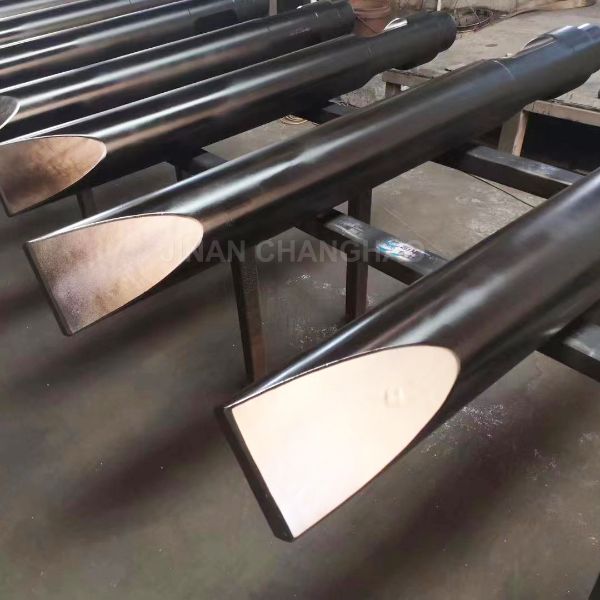

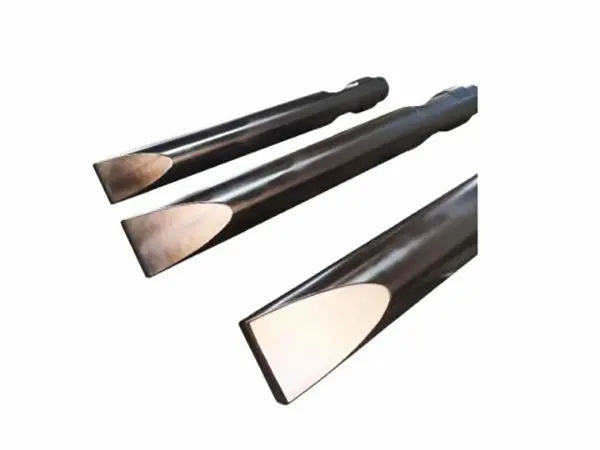

hydraulic breaker chisel with wedge type
| Chisel Diameter | Compatible Breaker Model | Excavator Class | Application Focus |
|---|---|---|---|
| 68 mm | SB40 | 4 – 7 Ton | Light Utility / Curb Work |
| 100 mm | SB50 | 11 – 16 Ton | Trenching / Foundation |
| 135 mm | SB81 | 19 – 26 Ton | Quarrying / Heavy Demolition |
| 150 mm | SB121 | 27 – 33 Ton | Large Scale Mining |
The unique wedge-shaped geometry provides optimal force distribution, enabling faster material separation while reducing stress on your hydraulic breaker. With perfect compatibility with most major breaker models and customizable options available, our wedge chisel ensures maximum productivity and minimized downtime for your demolition, trenching, and rock breaking applications. Contact us today for competitive pricing and expert technical support.

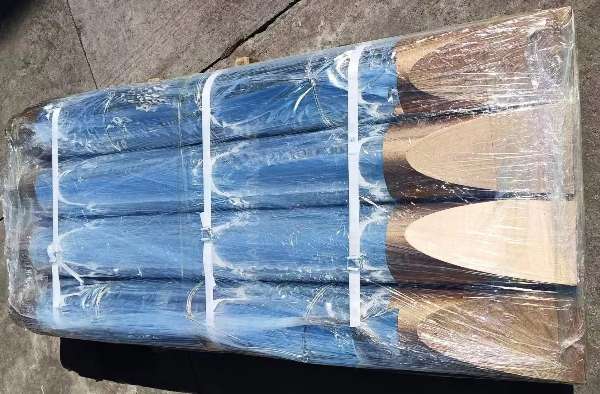

hydraulic breaker hammer chisel with wedge type

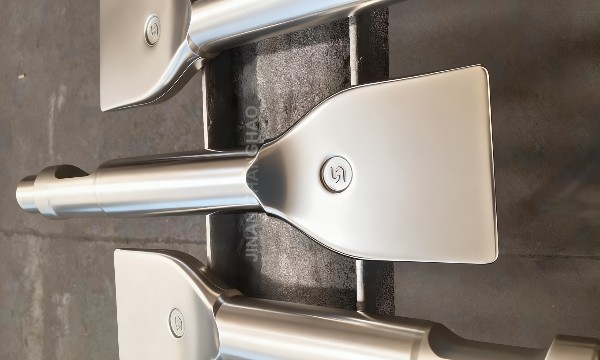

wedge type breaker chisels
Material: 40Cr/42Crmo/42CrmoA/40CrMnMo
Color: Silver/black, customizable
Minimum order quantity: 1 piece
Delivery time: In stock
Applicable machines: Furukawa, Caterpillar, TOKU, Soosan, MSB, General Breaker, HANWOO, Eddie, BEILITE, etc

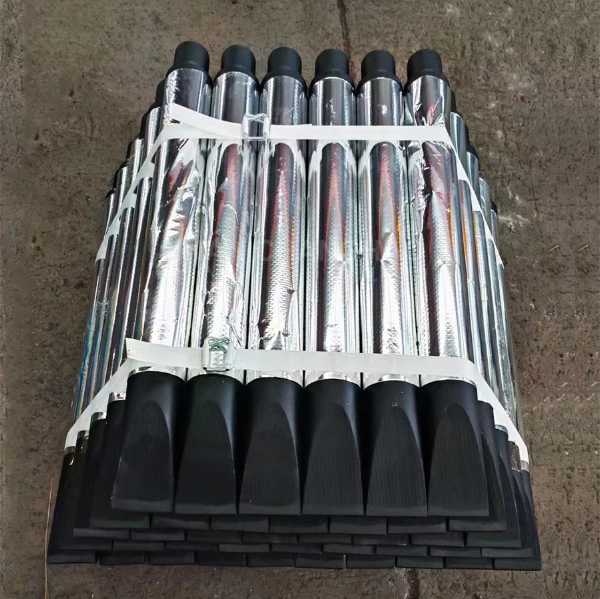

wedge type chisel

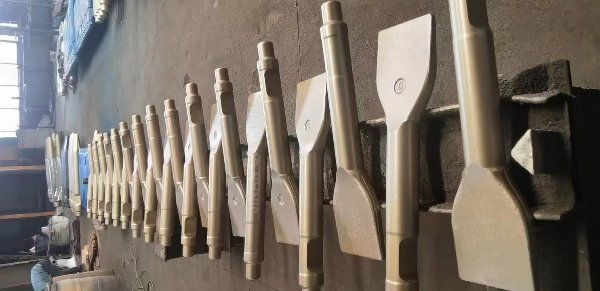

wedge type hammer chisel
Segmented Heat Treatment Technology
Tip hardness：50-53HRC
The tip endures upper pressure, requiring high toughness, hardness, and wear resistance
Central hardness:45-48HRC
The middle section bears pressure from both ends, t is necessary to increase the toughness, reduce the brittleness of the material and prevent the fracture of the middle part.
Tail hardness：49-51HRC
The hardness of the tail is reduced, it is not easy to crack, and can better protect the piston of the breaker
