The frequency control valve is the central nervous system of a hydraulic breaker’s energy output. By regulating the hydraulic flow into the piston chamber, this valve allows the operator to switch between Long Stroke (Maximum Impact Energy) for heavy demolition and Short Stroke (Maximum BPM) for high-speed material scaling. Our valves are machined to micron-level tolerances to ensure zero internal leakage even at 180 Bar working pressure.
Basalt & Hard Granite: Set to Long Stroke. Higher impact energy is required to initiate micro-fractures in high-density rock.
Soft Limestone & Concrete: Set to Short Stroke. Increasing the Blows Per Minute (BPM) significantly improves production rates where massive force isn’t required.
Secondary Breaking: A medium setting is recommended to prevent “blank firing,” which protects the through bolts and front head from fatigue.
Troubleshooting & Maintenance
Problem: Impact speed does not change when turning the valve. Diagnosis: Likely internal bypass due to contaminated hydraulic oil causing scratches on the valve spool. Inspect the O-rings and ensure the hydraulic filter is changed according to the 500-hour service interval.
| Parameter | Technical Specification | Compatibility |
|---|---|---|
| Compatible Series | Soosan SB / Furukawa HB Series | HB15G, HB20G, SB81, SB121 |
| Adjustment Logic | Stepless Stroke Control | Piston Displacement Regulation |
| Material Matrix | 42CrMo High-Alloy Steel | Wear & Corrosion Resistant |
| Heat Treatment | Vacuum Quenching & Tempering | Surface Hardness HRC 56-60 |
| Mounting Thread | OEM Standard Metric/G-Thread | Direct Plug-and-Play |

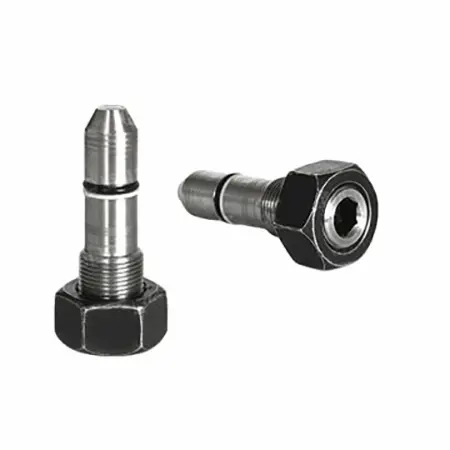

Hydraulic Breaker Frequency Control Valve for Hammer Speed Adjustment
Adjust the Frequency Control Valve to match the hydraulic breaker’s performance to the working material.

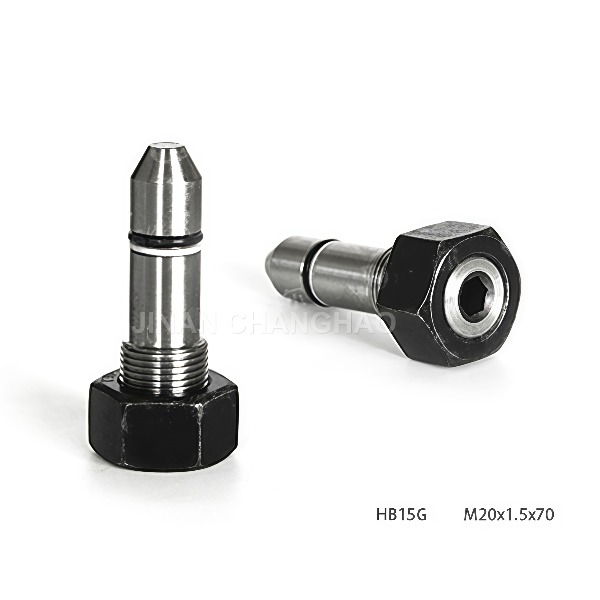

HB15G Hydraulic Breaker Frequency Control Valve

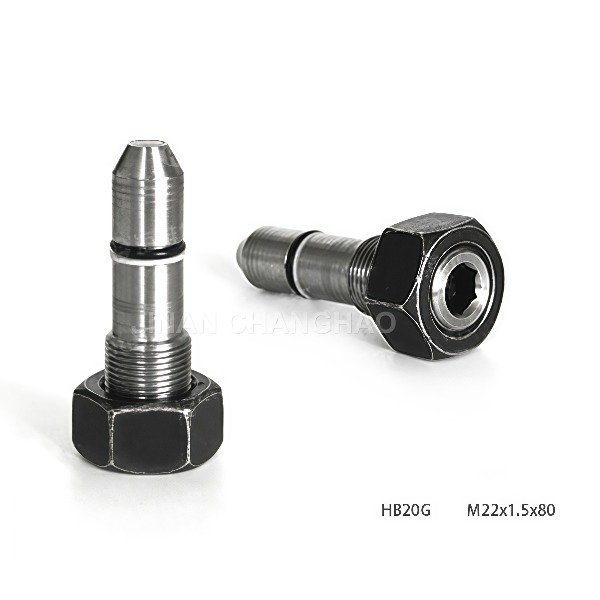

HB20G Hydraulic Breaker Frequency Control Valve

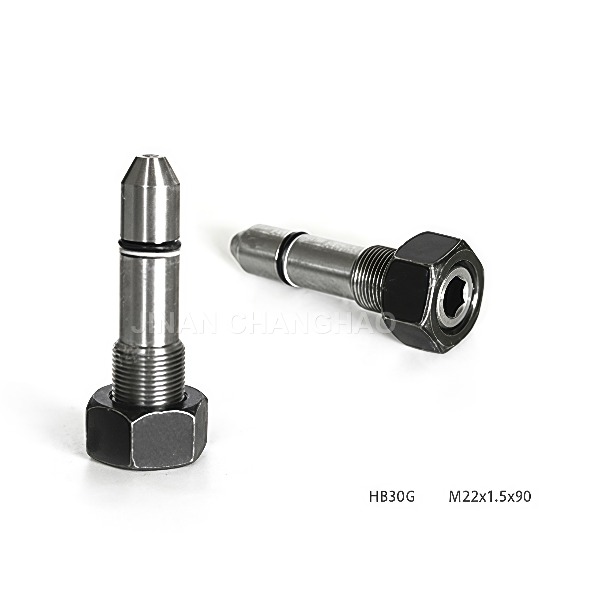

hb30g Hydraulic Breaker Frequency Control Valve
Is your hydraulic breaker underperforming in soft soil or overpowering in hard rock? Our precision Frequency Control Valve is the key to unlocking maximum efficiency. This vital component allows you to seamlessly adjust the impact frequency and energy of your hydraulic hammer. By simply tuning the valve, you can match the hydraulic hammer’s performance to the working material, ensuring optimal speed and power for every job—from light trench work to heavy boulder breaking. This not only boosts productivity but also reduces excessive wear and stress on your hydraulic breaker hammer.

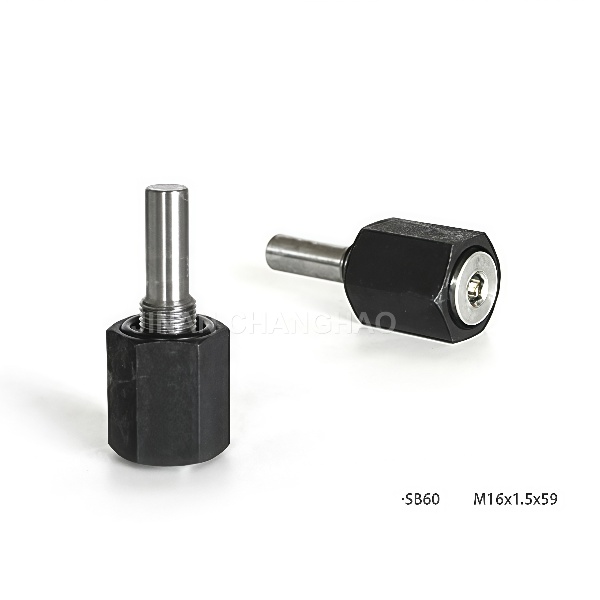

sb60 Hydraulic Breaker Frequency Control Valve

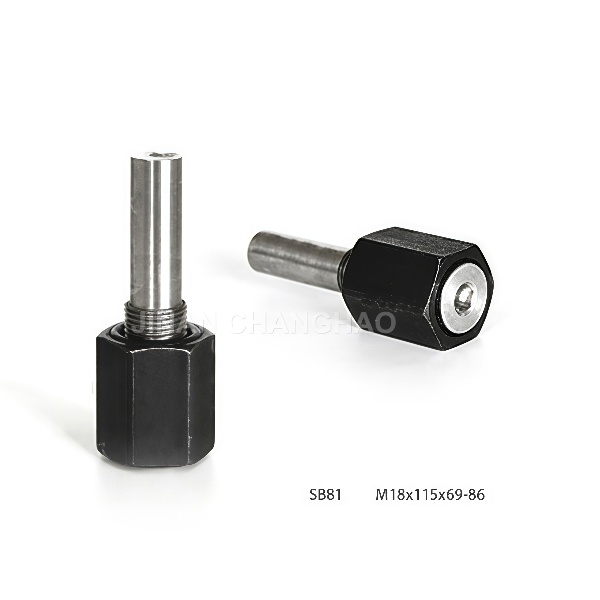

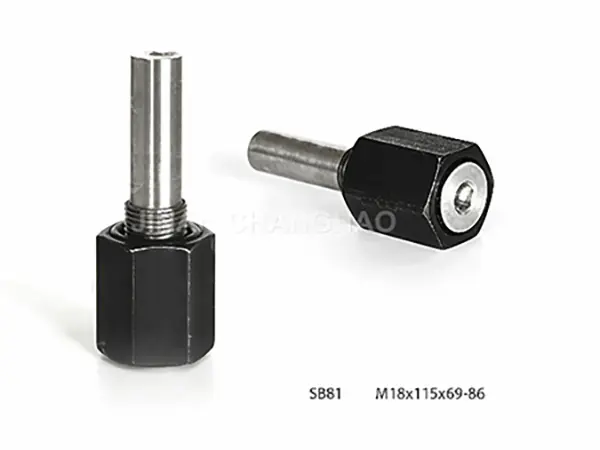

SB81 Hydraulic Breaker Frequency Control Valve

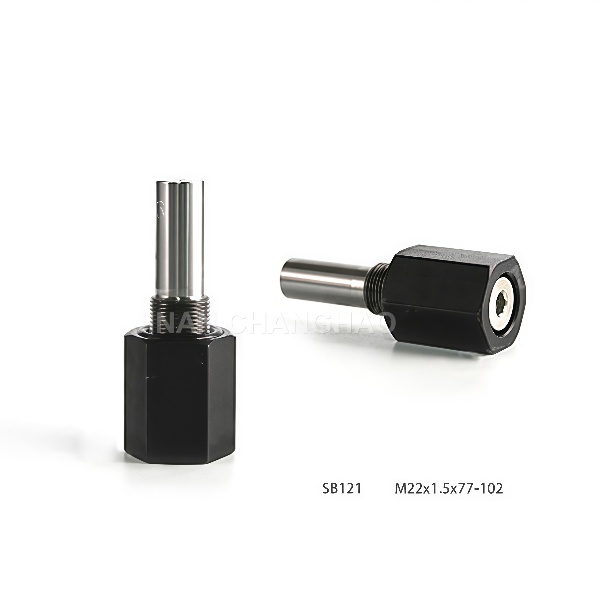

SB121 Hydraulic Breaker Frequency Control Valve

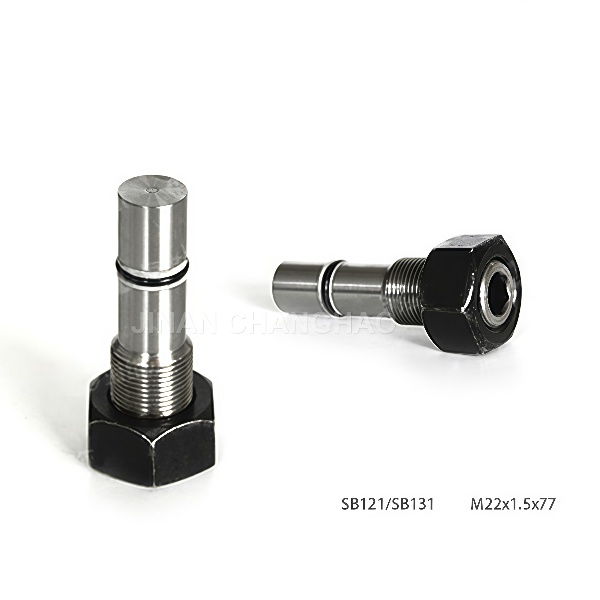

sb121 SB131 Hydraulic Breaker Frequency Control Valve
Upgrade your hydraulic breaker operation with intelligent control.
Contact us to find the right Frequency Control Valve for your hydraulic breaker model!
