Restore Peak Impact Power of your Daemo DMB210 hydraulic hammer with our premium B22680010 Repair Seal Kit. Specifically engineered to handle the high-frequency vibration and intense hydraulic pressure of Daemo systems, our kits feature industry-leading materials that prevent oil leakage and nitrogen loss. Whether you are performing a routine overhaul or emergency repair, this 100% OEM-compatible kit ensures your breaker is back to work with maximum ROI.
Seal Kit Content Details
Step Seal (Polyurethane): High-pressure primary seal for the main piston.
Buffer Seal (NBR+PTFE): Absorbs hydraulic shock pulses.
Dust Seal (PU): Prevents contamination from entry.
Backup Rings (Nylon/PTFE): Prevents seal extrusion under high load.
Full Set of O-Rings (Viton/FKM): High-temperature resistance for gas and oil chambers.
- High-Grade Polyurethane (PU): Our PU seals are formulated for superior elasticity and abrasion resistance, maintaining a perfect seal even after millions of strokes.
- Viton/FKM for High Temps: We use high-performance FKM for gas-chamber O-rings, capable of withstanding operational temperatures up to 220°C (428°F) without hardening.
- Precision Tolerance Control: Every component is manufactured to match the original Daemo B22680010 blueprints, ensuring zero gap and easy installation.
Keep Your Daemo DMB210 Hydraulic Breaker Performing Like New with Our Repair Seal Kits!
| Feature | B22680010 Specifications |
|---|---|
| Compatible Model | Daemo DMB210, Alicon B210 |
| Seal Materials | FKM, NBR, PTFE+Bronze, PU |
| Max Pressure | 350 Bar |
| Temp Range | -35°C to +220°C |
| Part Number | B22680010 (Complete Set) |

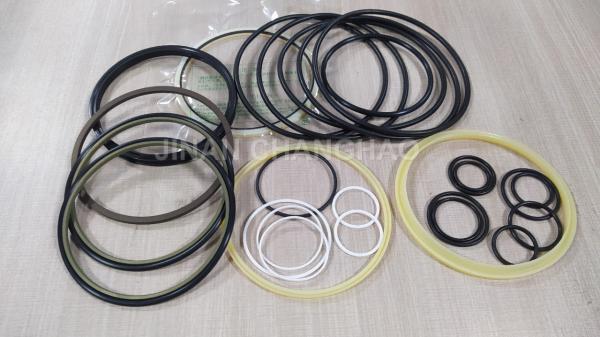

DMB210 Hydraulic breaker seal kit

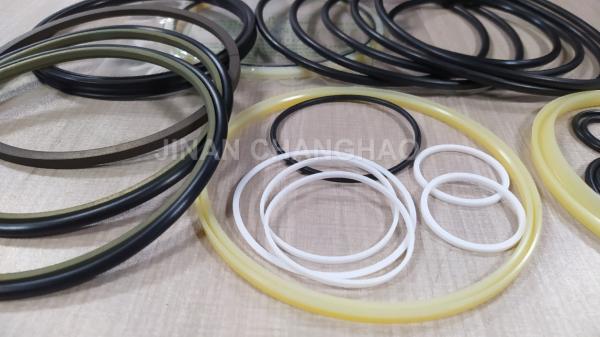

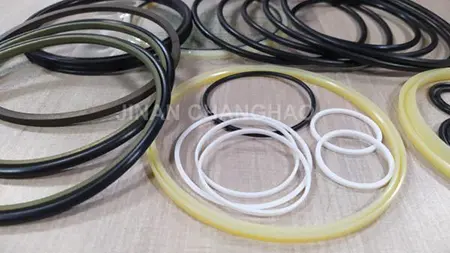

DMB210 hydraulic hammer seal kits

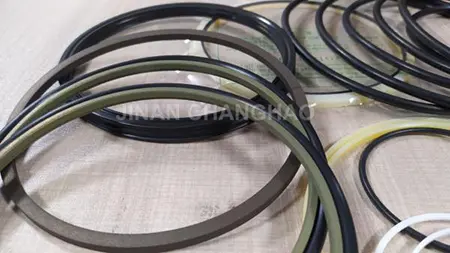

seal kits DMB210 rock breaker
Maximize uptime and restore peak performance to your Daemo DMB210 hydraulic hammer with our specialized repair seal kits.
Each kit contains all the necessary high-quality seals and gaskets for a complete overhaul, ensuring optimal power and preventing hydraulic fluid leaks. Our kits are engineered to match OEM specifications for a perfect fit and reliable, long-lasting performance under the most demanding conditions. Simplify your maintenance, reduce costly downtime, and extend the life of your breaker.
| Part Name: | Hydraulic Breaker seal kit |
| Model: | Daemo B22680010 DMB210 seal kit |
| Material: | NBR+FKM+PTFE+PU |
| Weight: | 0.3kg |
| Pressure: | 0~0.05Mpa |
| Certification: | CE ISO |
| Temperature: | -35~220°C |
| OEM/ODM Service: | Provided |
DMB210 Hydraulic Breaker Main Body Parts List
| Parts No. | Parts Name |
| B22610010 | CYLINDER |
| 007006-14001 | RING, BUFFER |
| 007002-14001 | U-PACKING |
| 007003-14002 | SEAL, DUST |
| B22211101000 | PISTON |
| B23310080 | BUSH, CYLINDER |
| 007007-13602 | RING,QUAD |
| 007008-13602 | SEAL.STEP |
| 007006-13600 | RING, BUFFER |
| 007001-1650G | O-RING |
| B22610020 | CAP, HEAD |
| B23310140 | HEAD, FRONT |
| B23310100 | THROUGH BOLT |
| B23310070 | NUT, WOOD-RUFF FOR T/BOLT |
| B23216400000 | WASHER, FOR T/BOLT |
| B23310110 | NUT, HEX. FOR T/BOLT |
| B23390071 | VALVE CASE ASS’ Y |
| B23310110 | BOLT, SOCKET |
| 013020-240604 | TT/WEST UNION |
| 015E10-24000 | WASHER, NORD-LOCK |
| 007001-0380P | O-RING |
| 004012-C1320 | PLUG, HEX. SOCKET |
| 007001-0400P | O-RING |
| 004012-C2422 | PLUG, HEX. SOCKET |
| 007001-0280P | O-RING |
| 004012-C2304 | PLUG, HEX. SOCKET |
| B23310120 | RING,THRUST |
| B23310050 | COVER, FRONT(SLIDING) |
| B23310060 | COVER, FRONT (TIGHT) |
| B23112120000 | CHISEL (MOIL) |
| B23112130000 | CHISEL (WEDGE) |
| B23112140000 | CHISEL (CONICAL) |
| B23112110000 | CHISEL (BLUNT) |
| B22212600000 | PIN, STOP |
| 017002-00070A | PLUG, SCREW+RUBBER |
| 017002-00070 | PLUG, SCREW+RUBBER |
| B23310151 | PIN,CHISEL |
| 004013-141008 | GREASE NIPPLE |
| 004012-A0060 | PLUG, HOLLOW |
| B00010050 | AIR CAP ASS’ Y |
| 007001-0140P | O-RING |
| 0605A-000002 | SCREW COUPLING |
| B22211120000 | PIN, KNOCK |
| 004012-C1090 | PLUG, HEX, SOCKET |
| 007001-0140P | O-RING |
| 004012-C1060 | PLUG, HEX.SOCKET |
| 007001-0110P | O-RING |
| B22212601000 | PIN, STOP |
| 017002-00080 | PLUG, SCREW+RUBBER |
| 019B10-240190 | HELICOIL |
| B22680010 | SEAL KIT,ALI |
| 323380020 | SEAL KIT, CYLINDER |
| B23380030 | SEAL KIT, VALVE CASE |
| B23390030 | THROUGH BOLT SET |
Contact us today to order your authentic Daemo DMB210 seal kit and ensure your equipment is always job-site ready!
