Precision-Matched Auxiliary Pipe Line Kits specifically engineered for XCMG XE60, XE60C, XE60D, and XG60 mini excavators. As the most popular 6-ton class machines, XCMG series require high-durability hydraulic lines to sustain continuous rock-breaking cycles. Our piping kits ensure a zero-leakage, 100% plug-and-play installation, designed to follow the exact contours of the XCMG boom and arm for maximum clearance and protection.
Technical Specifications
| Technical Data | Specifications for XCMG 6-Ton Series |
|---|---|
| Compatible Models | XCMG XE60, XE60C, XE60D, XE60WA, XG60 |
| Steel Pipe Material | ST52.3 / 20# Seamless Precision Steel |
| Surface Treatment | Anti-Rust Phosphating & Black Protective Coating |
| Hose Specification | 4-Layer High-Tensile Steel Wire Braided (SAE 100R12) |
| Max Working Pressure | 250 Bar (Optimized for 6t class breakers) |
| Bending Technology | High-Precision CNC Cold Bending |
- Custom-Contoured CNC Bending: Every hard pipeline is CNC-bent to match the specific hydraulic layout of the XCMG XE60 series, ensuring no interference with the excavator’s standard bucket movements or lifting cylinders.
- Premium Phosphated Finish: Unlike painted pipes that peel, our internal and external Phosphating process prevents rust contamination from entering your XCMG’s hydraulic pump, extending system life.
- Reinforced Clamping System: Includes heavy-duty galvanized steel clamps with oil-resistant rubber lining to absorb the high-frequency vibration of mini-breakers like the HWX680.
Premium Mini Excavator Aux Pipe Line Kits | Hydraulic Rock Breaker Piping for XCMG XG 60

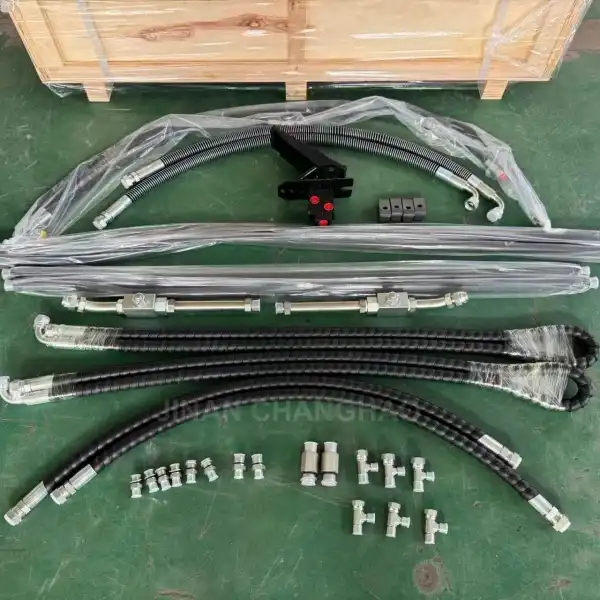

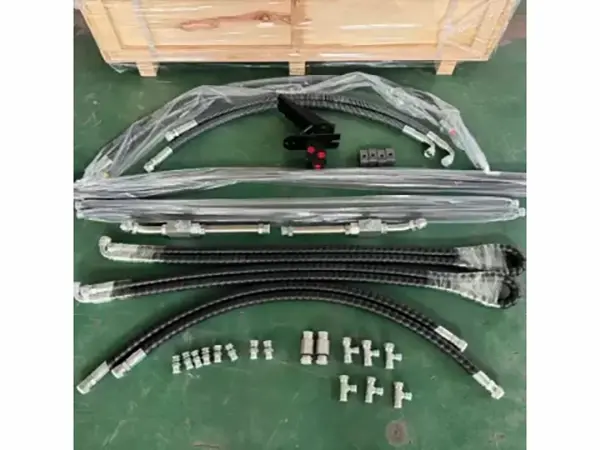

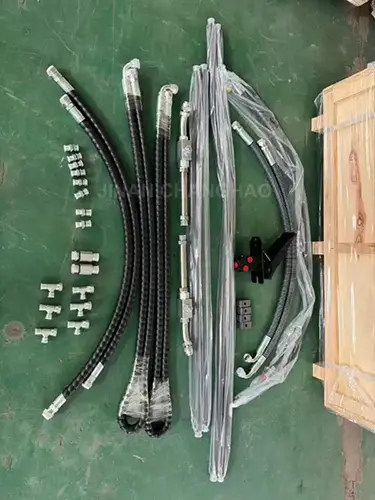

Complete Full-Set Package
Each XCMG 6-ton kit is shipped as a Ready-to-Install Package:
Boom & Arm Hard Pipelines (Phosphated & Powder Coated)
High-Pressure Connection Hoses with standard XCMG fittings
Foot Pilot Control Valve (High-Sensitivity)
All Mounting Brackets, Specialized Bolts, and Seals
Upgrade your XCMG XG 60 mini excavator with our high-performance auxiliary pipe line kits, specifically engineered for hydraulic rock breaker applications.
These durable piping kits ensure seamless integration and reliable performance, delivering superior hydraulic fluid transfer under demanding conditions. Crafted with high-quality materials like multi-layer steel wire braiding and oil-weather resistant synthetic rubber, these hose lines excel in resistance to abrasion, weathering, and high-pressure pulses.
Rigorously tested to withstand extreme temperatures from -40°C to 135°C and achieve over 900,000 impulse cycles, they guarantee long service life and reduce downtime. Each kit comes with precision-fitted connectors for easy installation, ensuring a perfect match and optimal flow for your XG 60 hydraulic breaker system.
Ideal for construction, mining, and demolition projects, our XCMG-compatible piping solutions maintain peak breaker efficiency and protect your machinery investment.
