| HYDRAULIC BREAKER SPECIFICATIONS | ||||||||
| HMB Model | Operating Weight (kg) | Required Oil Flow (L/Min) | Working Pressure (Bar) | Impact Rate (Bpm) | Chisel Diameter (mm) | Hose Diameter (inch) | Carrier weight (ton) | Valve Ass’y Position (/) |
| HWX 1400 | 2000 | 150-190 | 165-195 | 400-800 | 140 | 1 | 20-30 | Internal |

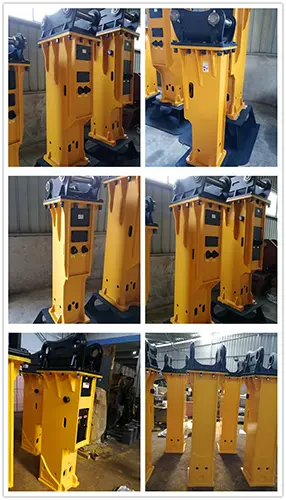

silence type hydraulic breaker

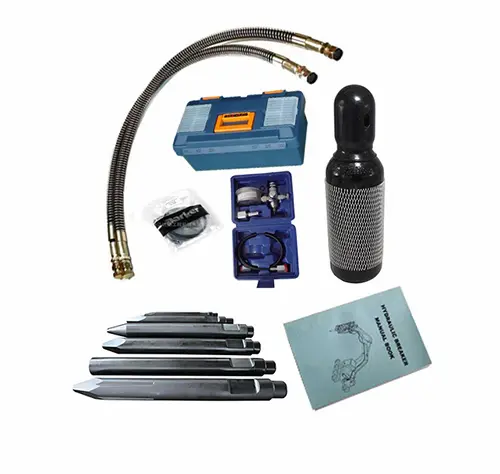

user’s manual for hydraulic breaker
Why choose us?
12 months warranty for hydraulic breaker, Free replacement will provide once the failure confirmed caused by our product quality.
We have more than 20 years experience in manufacturing hydraulic breakers. Our hydraulic breakers are suitable for excavators of VOLVO, Hitachi，Komatsu，Doosan, Susitomo,SANY, Cat,KOBELCO,XCMG. Show us your excavator model, we’ll confirm the solution.
We take quality seriously and all of our parts are fully interchangeable with the original.Also we provide customized service.We produce as per your drawings.
Cylinder Material
Choose the best Material 20 CrMo 40 CrMo 42Crmo, The material of the middle cylinder is made of 20crmo, and is processed by a high-precision CNC center; after the processing is completed, it undergoes three hot water treatments and three cold treatments; the matching tolerance of the piston and the middle cylinder is within 5-7 wires, and each middle cylinder Both the piston and the piston are cold treated with liquid nitrogen to prevent the cylinder from expanding due to excessive oil temperature and cannot be used normally.
Oil Seal Kits
The oil seal adopts Japanese NOK oil seal, which is resistant to high temperature and belongs to the best quality oil seal. To
ensure the normal operation period and prolong the service life of the hydraulic breaker, it is necessary to ensure the quality of
the oil seal of the breaker.
High quality hammer shell and splint
The material used for the hammer shell and splint is wear-resistant, manganese steel HARDOX material, which is welded by robots to ensure that it will not crack within one year.We use high-precision product matching, and the matching tolerance is within 1-5 wire, which fully guarantees the hammer’s striking strength.The material of the whole body bolt and splint bolt is 42crmo, and each one is heat-treated to prevent each bolt from being elongated and deformed.
Choose the best Material 20 CrMo 40 CrMo 42Crmo, The material of the middle cylinder is made of 20crmo, and is processed by a high-precision CNC center; after the processing is completed, it undergoes three hot water treatments and three cold treatments; the matching tolerance of the piston and the middle cylinder is within 5-7 wires, and each middle cylinder Both the piston and the piston are cold treated with liquid nitrogen to prevent the cylinder from expanding due to excessive oil temperature and cannot be used normally.
Oil Seal Kits
The oil seal adopts Japanese NOK oil seal, which is resistant to high temperature and belongs to the best quality oil seal. To
ensure the normal operation period and prolong the service life of the hydraulic breaker, it is necessary to ensure the quality of
the oil seal of the breaker.
High quality hammer shell and splint
The material used for the hammer shell and splint is wear-resistant, manganese steel HARDOX material, which is welded by robots to ensure that it will not crack within one year.We use high-precision product matching, and the matching tolerance is within 1-5 wire, which fully guarantees the hammer’s striking strength.The material of the whole body bolt and splint bolt is 42crmo, and each one is heat-treated to prevent each bolt from being elongated and deformed.
