Compact SB20 Side Type Hydraulic Breaker is specifically designed for 1.5 to 2.5-ton mini excavators (such as Kubota U17, CAT 301.8, Yanmar ViO25). The side-mount design offers a lower overall height, providing superior stability for mini excavators during demolition and landscaping projects. Engineered with a 45mm diameter chisel, it delivers high-frequency impact while protecting the carrier’s lightweight boom.
- Optimized for Mini Excavators: Weighing only 130kg, the SB20 maintains the balance of small carriers, preventing tipping during lateral breaking.
- 20CrMo Internal Power Cell: Despite its small size, the SB20 features a high-tensile 20CrMo alloy steel cylinder with vacuum heat treatment, ensuring the same durability as our 20-ton heavy-duty models.
- Urban-Friendly Operation: The side-type structure allows for better visibility and precise control in narrow spaces, making it ideal for indoor renovations and residential landscaping.
Shipped as a Ready-to-Install Full-Set:
2 x 45mm Chisels (Moil/Wedge)
2 x 1/2″ High-Pressure Hoses
N2 Charging Kit & Gas Bottle
12-Month Quality Warranty
SB20 excavator attachments side type hydraulic breaker hammer rock breaker for mini excavator
Specification of SB20 Hydraulic Breaker Hammer
| Model | UNIT | SB20 |
| Weight | Kg | 130 |
| Length | mm | 900 |
| Working Pressure | kg/cm2 | 110-140 |
| Oil Flow | L/min | 25-40 |
| Impact Rate | bpm | 550-1000 |
| Oil hose dia. | inch | 1/2 |
| Chisel Dia. | mm | 45 |
| Chisel Weight | kg | 5 |
| Bucket Capacity | m3 | |
| Excavator | ton | 1.5-2.5 |
Hydraulic Breaker Hammer for 1~90 Tons Excavator,Hydraulic Breaker Hammer-Warranty 12 months
Q: Are you sure your hydraulic breakers will fit my excavator?
A:Yes, we are 100% sure. To ensure a perfect fit, our engineering team follows the ‘Golden 3 Parameters’ rule. Before shipping, we verify your excavator’s:
A:Yes, we are 100% sure. To ensure a perfect fit, our engineering team follows the ‘Golden 3 Parameters’ rule. Before shipping, we verify your excavator’s:
- Pin Diameter (e.g., 80mm)
- Center Distance (Pin to Pin)
- Ear Width (Dipper Width)
We customize the mounting bracket specifically for your machine model (whether it’s a CAT 320, Sany SY215, or JCB 3CX). We have a database of over 1,000 excavator models to guarantee a seamless ‘Plug & Play’ installation.“
With 20+ years of manufacturing experience, we have supplied hydraulic breakers for almost every brand, including CAT, Komatsu, Sany, Hyundai, Volvo, and CASE.
Our breakers are built on the Soosan SB platform, meaning internal parts are interchangeable and the external bracket is custom-tailored to your excavator’s hitch. We even provide the high-pressure hoses and connectors to match your machine’s auxiliary lines perfectly.”
To confirm the solution for you, could you please send me:
- Your excavator model (e.g., Komatsu PC200-8)?
- A quick photo of your excavator arm/hitch?
Once I have these, our technician will provide a technical drawing for your confirmation before we start production. This ensures the breaker is ‘Ready-to-Install’ the moment it arrives at your site.”
Q: How about your products warranty?
A:12 months warranty for hydraulic breaker, Free replacement will provide once the failure confirmed caused by our product quality. Beyond the warranty period,Our sales team and Technical Support will response for your question within 24 hours (Holidays Excluded).
Q: Can you produce according to customers’ design?
A:Sure, OEM/ODM service available. We are professional in manufacturing and assembling hydraulic breakers.

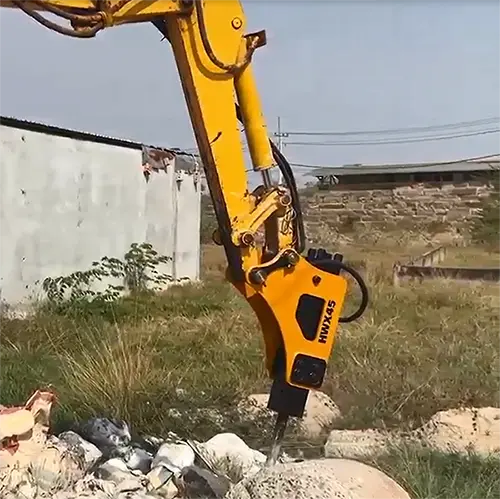

high power hydraulic breaker for mini excavator

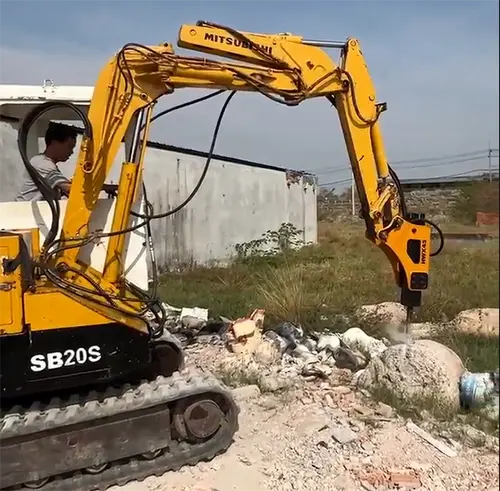

mini excavator rock breaker application rock breaking

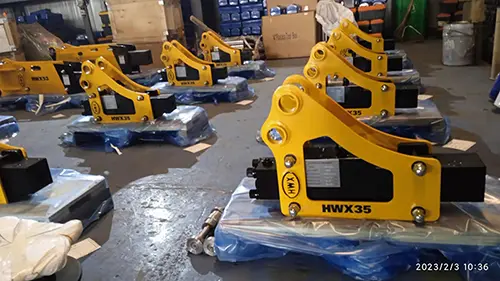

mini excavator hydraulic rock breaker supplier in China
Jinan Changhao Machinery Equipment Co., Ltd.Jinan Changhao Machinery Equipment Co., Ltd. located in Nr.669 Gangyuan Second Road, Jingshi East Road, Jinan Area of China(Shandong ) Pilot Free Trade Zone, Jinan, Shang dong, China. The workshops occupy an area of 10,000 square meters. The bonded area is supported by national preferential policies and resources are inclined. There is superior terrain, beautiful environment and convenient transportation.Our company specialized in manufacturing all kinds of hydraulic breaker hammer，breaker hammer pipeline and their accessories as well as excavator attachments, breaker parts has hydraulic breaker piston, Front & Back head, cylinder, Thrust & Outer bushings, Hammer drill rod and flat pin, hydraulic valve, code Seal housing and so on. All the accessories of our pipeline, including clamps, ball valve, foot valve, wire plug, wire alignment, relief valve, lock valve, bracket, connector, hammer tube, arm iron pipe assembly, three-way iron pipe, are independently developed and manufactured by our factory to ensure product quality, safety and reliability.
We have perfect production equipments and test devices. Our company has various international certifications and adopts advanced technology to ensure product quality. We strictly control the material of our products, adopting unique heat treatment technology, special alloy materials, and the quality has reached international advanced level.
We also provide hydraulic breaker parts for the follwing hammer
| SB30,SB35,SB40,SB43,SB45,SB50,SB60,SB70,SB81,SB100,SB121,SB130,SB151,etc |
| HB10G,HB15G,HB20G,HB30G,HB40G,HB50G F1,F2,F3,F4,F5,F6,F9,F12,F19,F22,F27,F35,F45etc |
| MB700,MB750,MB800,MB1000,MB1200,MB1500,MB1600,MB1700, HB2000,HB2200,HB2500,HB3000,HB3600,HB4200,etc |
| BRH125,BRH250,BRH501,BRH625,SC12,BRV32,BRV43,etc |
| SAGA20,SAGA180,SAGA200,SAGA210,SAGA300,MS550,MS600,MS700,etc |
| HM900,HM901,HM902,HM950,HM960,etc |
| S23,S24,S25,S26,E63,E64,E66,E68,G90,G100,etc |
| MES2500,MES3000,MES3500,MES4000,etc |
| TNB 5E6E7E8E10E,TNB150151,TNB310,THBB301,THBB401,THBB801, THBB1400,THBB2000/OUB310,OUB312,OUB316,OUB318,UB11/H7X,H10X, H10XB,H12X,H16X,H20X,E210,E212,etc |
| B140,B210,B230,B300,B360,B450/MKB1400,MKB1500,MKB1600,MKB1700,etc |
| RHB305,RHB313,RHB320,RHB321,RHB323,RHB324,RHB325,RHB326,etc |
| BLT80-1,BLT80-2,BLT81,BLT100/EDT2000,EDT2200,EDT3000,EDT3200,EDT3500,etc |
Why Choose Us
hydraulic breaker cylinder
Cylinder Material
Choose the best Material 20 CrMo 40 CrMo 42Crmo, The material of the middle cylinder is made of 20crmo, and is processed by a high-precision CNC center; after the processing is completed, it undergoes three hot water treatments and three cold treatments; the matching tolerance of the piston and the middle cylinder is within 5-7 wires, and each middle cylinder Both the piston and the piston are cold treated with liquid nitrogen to prevent the cylinder from expanding due to excessive oil temperature and cannot be used normally.
hydraulic seal kits
Oil Seal Kits
The oil seal adopts Japanese oil seal, which is resistant to high temperature and belongs to the best quality oil seal. To
ensure the normal operation period and prolong the service life of the hydraulic breaker, it is necessary to ensure the quality of
the oil seal of the breaker.
ensure the normal operation period and prolong the service life of the hydraulic breaker, it is necessary to ensure the quality of
the oil seal of the breaker.
HWX hydraulic breaker
High quality hammer shell and splint
The material used for the hammer shell and splint is wear-resistant, manganese steel material, which is welded by robots to ensure that it will not crack within one year.We use high-precision product matching, and the matching tolerance is within 1-5 wire, which fully guarantees the hammer’s striking strength.The material of the whole body bolt and splint bolt is 42crmo, and each one is heat-treated to prevent each bolt from being elongated and deformed.
