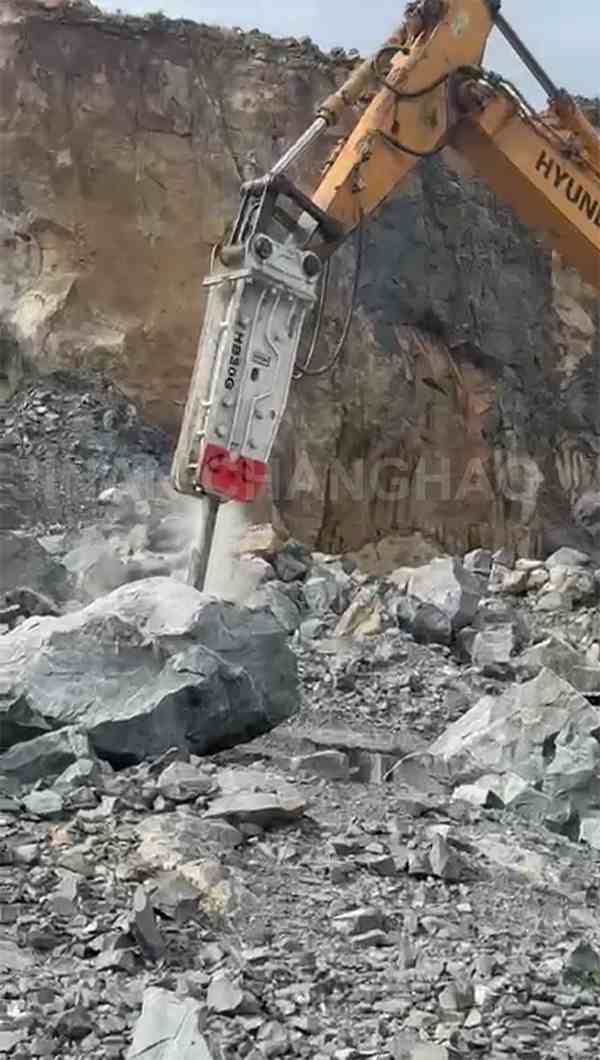

HB30G hydraulic breaker used on Hyundai R305LC, This rock breaker was working on a construction site in Kenya. On a typical job site, the HB30G is used for: Hard Rock Mining & Quarrying: Breaking large granite, basalt, or limestone blocks into manageable sizes for crushers (secondary breaking).

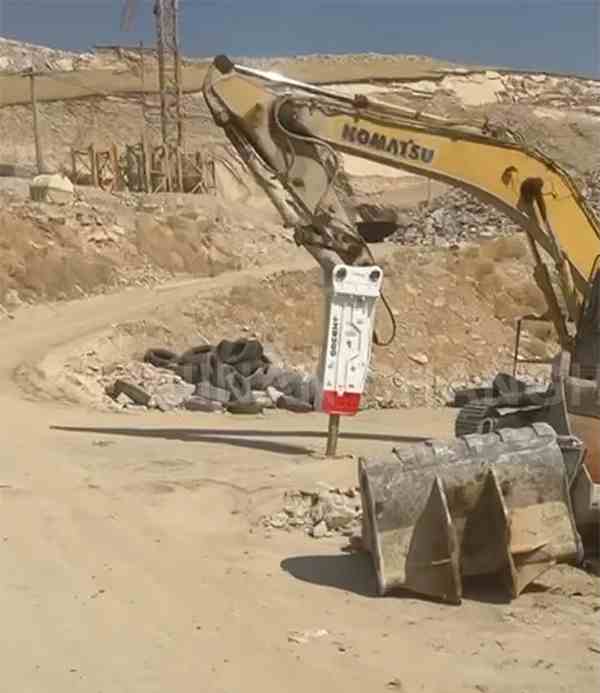

HB30G Rock Breaker on Komatsu PC300, This hydraulic hammer was working on a construction site in Saudi Arabia. Our technical engineers guided the on-site operators in installing the hydraulic breaker.

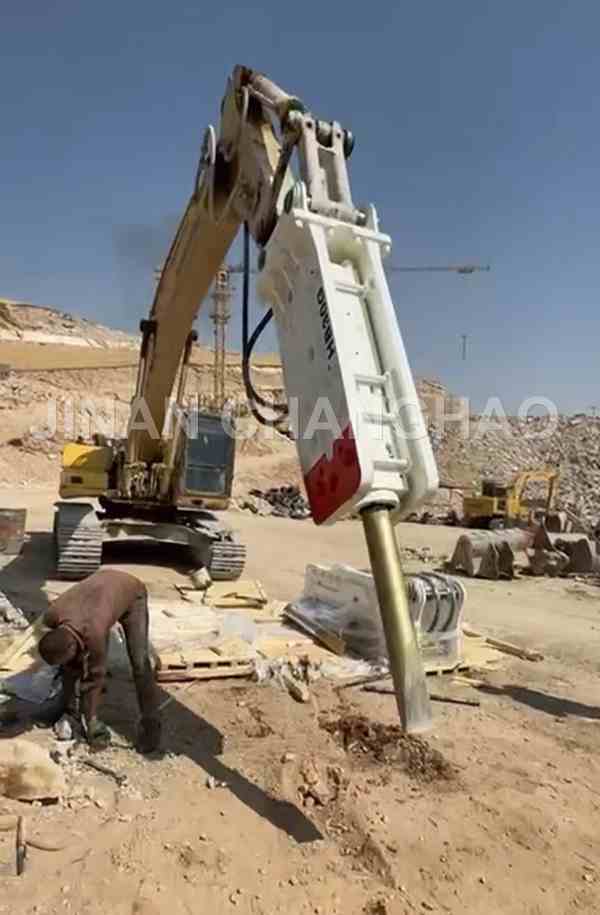

HB30G hydraulic breaker on CAT 330.

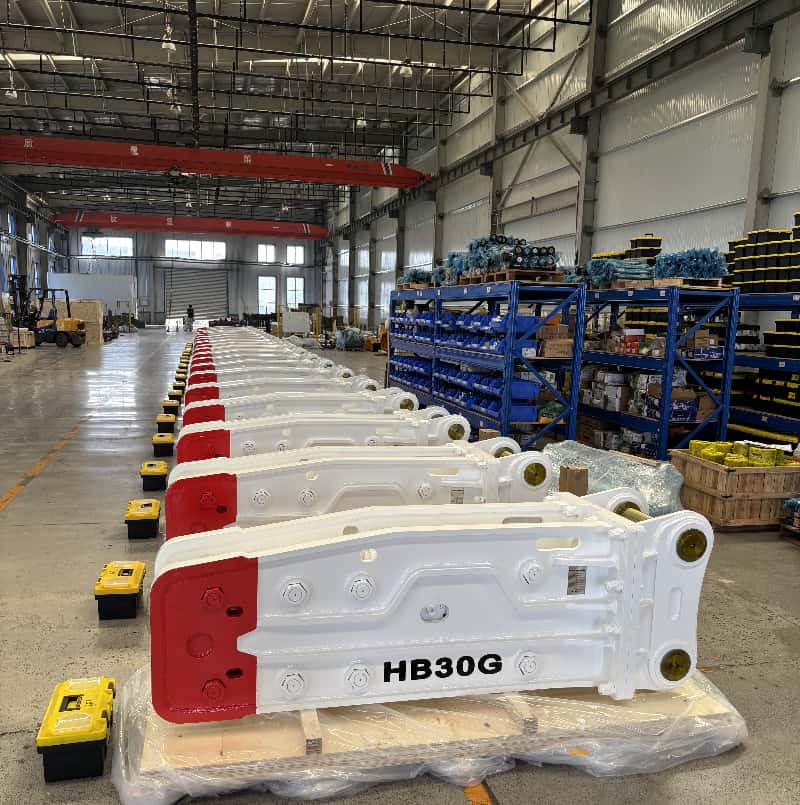

Top type HB30G rock breaker
Construction machinery HB30G hydraulic breaker manufacturer in China
HB30G hydraulic breaker supplier
Excavator demolition hammer for excavator 30 ton
Heavy duty HB30G excavator hydraulic breaker for construction mining
high quality HB30G excavator hammer with OEM service
Hot sale HB30G hydraulic breaker for sale
HB30G hydraulic breaker specification
| Model | Unit | HB15G | HB20G | HB30G | HB40G | HB50G |
| operating weight | kg | 1230 | 1600 | 2420 | 3175 | 4292 |
| Operating pressure | MPa | 16-18 | 16-18 | 16-18 | 16-18 | 16-18 |
| Oil flow | L/min | 90-120 | 125-150 | 150-190 | 190-250 | 210-290 |
| Impact rate | bpm | 400-800 | 350-650 | 300-750 | 300-550 | 220-350 |
| Oil hose dia. | inch | 1 | 1 | 1 | 1 | 1 1/4 |
| chisel dia. | mm | 120 | 135 | 150 | 160 | 175 |
| suit for excavator | ton | 13-18 | 18-28 | 28-36 | 33-50 | 40-60 |
