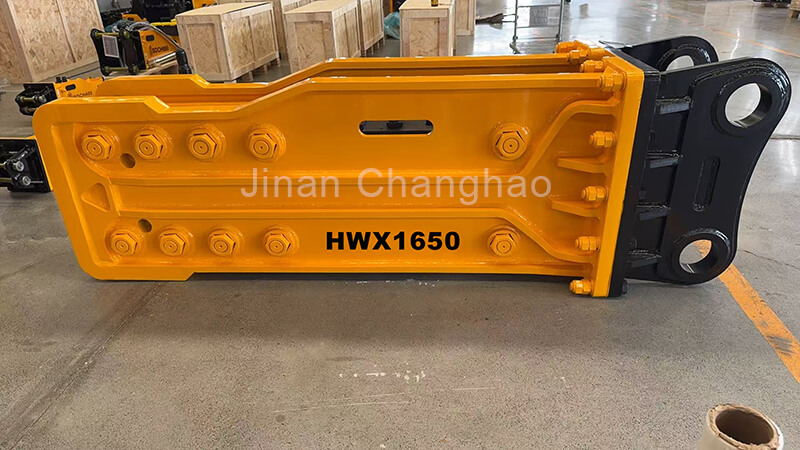

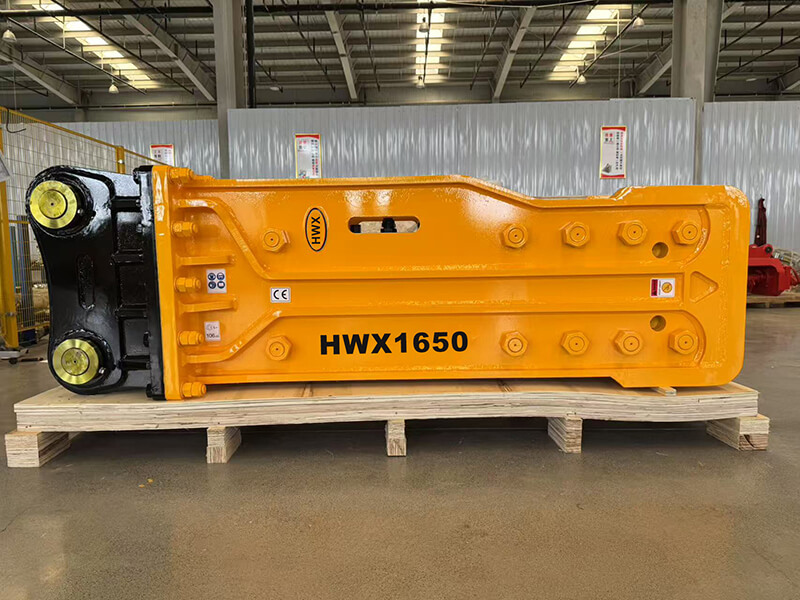

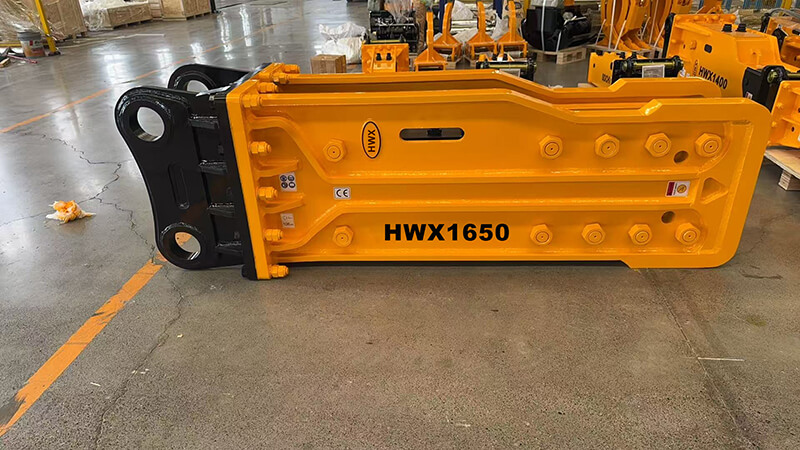

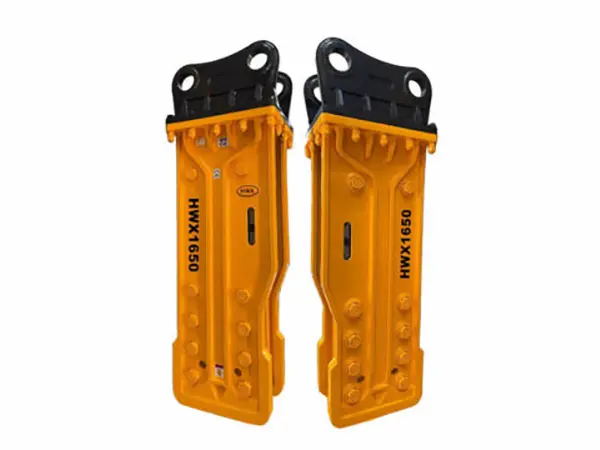

The HWX1650 Heavy-Duty Mining Breaker is engineered for the world’s toughest quarrying and demolition environments. Specifically optimized for 35-ton class carriers (CAT 336, Komatsu PC350-8, Sany SY365), this 165mm chisel powerhouse combines massive impact energy with superior durability. Whether crushing hard basalt or granite, the HWX1650 ensures maximum uptime through advanced hydraulic efficiency.
Forged 20CrMo Six-Sided Cylinder: Unlike standard cast bodies, our HWX1650 cylinder is manufactured using six-sided forged 20CrMo alloy steel, undergoing triple vacuum heat treatment. This achieves an ideal surface hardness (HRC 58-62) while maintaining the core toughness required for extreme mining impacts.
Independent Oil Return Protection: For 35-ton machines, we strictly implement an Independent Oil Return Line. This bypasses the control valve and returns oil directly to the tank, preventing hydraulic system overheating in 45°C+ high-temperature environments.
High-Pressure Accumulator Assembly: Equipped with a large-capacity accumulator that absorbs hydraulic shock pulses, protecting your excavator’s main pump and stabilizing the 150-300 bpm impact rate.
Full-Set Configuration
Shipped as a Complete Ready-to-Install Mining Package
2 units of 165mm Forged Chisels (Moil & Wedge)
2 units of 1 1/4″ High-Pressure Hoses (with protective sleeves)
1 set of Heavy-Duty N2 Charging Kit with Gas Bottle
12-Month Factory Warranty on Core Parts
Komatsu PC350-8 PC360-7 Hyundai R350LVS CAT336 CAT345 Kobelco SK330-8 SK350LC-8 Hitachi ZX330-5G Excavator Mining Rock Breaker Quarry Hydraulic Hammer
33-38 Ton Excavator Breaker with CE Certification
Jinan Changhao Machinery Equipment Co., Ltd. is a OEM Hydraulic Hammer Manufacturer and Supplier in China. We are Excavator Breaker Supplier in Dubai Saudi Arabia Libya Peru Guatemala Uruguay El Salvador Mexico. The warranty is 12 month. Jinan Changhao Machinery Equipment Co., Ltd. has various imported production equipment and precision testing equipment from Korea and Japan for product quality inspection.
| Product Name | Material |
| Piston | GCR15, 616V |
| Cylinder | 20CrMo Six-sided forging |
| Front Head | 42CrMo |
| Back Head | 42CrMo |
| Control Valve | 20CrMo Six-sided forging |
| Front Cover | 42CrMo |
| Ring Bush | 42CrMo |
| Through Bolt | 42CrMo |
| Chisel | 42CrMo forging, Each drill rod has undergone 3 cold heattreatments, long life drill rod |
| Seal kit retainer | famous brand,High temperature resistance |
| Bracket | GB45,Wear resistance coefficient 400 |
| Strike strength | 1.5 times of ordinary breaker hammer |
| warranty | 12 month |
| Model Type | HWX1650 |
| Weight | 3700KG |
| Length | 3500mm |
| Working Pressure | 200-220 kg/cm² |
| Oil Flow | 200-260 L/min |
| Impact Rate | 150-300 bpm |
| Oil hose dia. | 1 1/4 inch |
| Chisel Dia. | 165mm |
| Chisel | 42CrMo forging, Each drill rod has undergone 3 cold heattreatments, long life drill rod |
| Excavator | 33-38 Ton |
We produce all type of Hydraulic Breakers and can customize excavator hammers for different customer requirements. Each hydraulic breaker hammer that we produce has been grimly tested, strictly controlling every quality process in production, and ensuring to deliver the best products to our customers. We have complete production equipment and testing equipment. The products are made of special alloy steel, through strict heat treatment control, precise CNC equipment processing and exquisite detection means.If you are interested in our products, kindly feel free to contact us. We will provide you high quality products, competitive prices and best service.
