Our hydraulic breakers deliver powerful, stable impact for fast crushing of rocks, concrete, and asphalt. Ideal for mining, building demolition, road construction, and frozen soil breaking, our hydraulic breakers rock concrete demolition hammers feature durable components, easy maintenance, and flexible adaptability to complex working conditions. Boost your project efficiency—reliable hydraulic breakers for all construction needs.

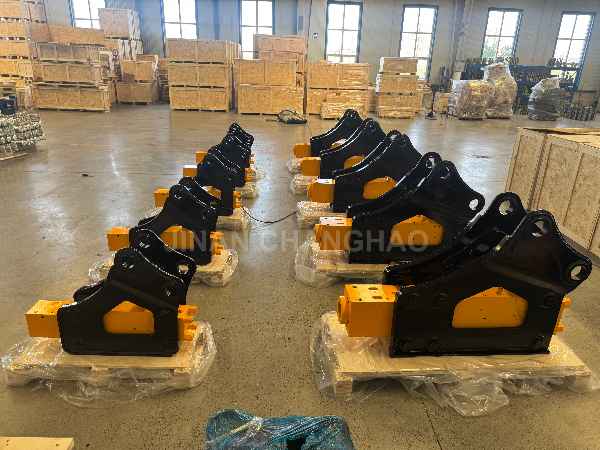

SB40 SB50 Hydraulic hammer

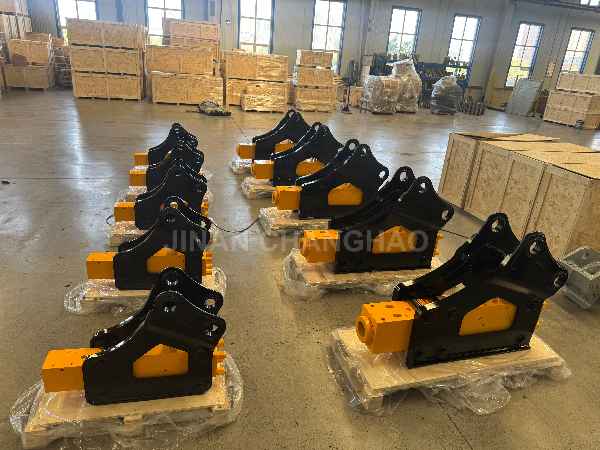

SB40 SB50 rock breaker
With its unique triangle structure and optimized adaptability, the side type hydraulic breaker excels in complex working conditions, operational flexibility and maintenance convenience. It is widely used in mining, building demolition and road construction.
- Better Installation: Mounted low on the excavator arm, it is easy to lift, ideal for “hooking and breaking” vertical surfaces like concrete walls, and maintains stability in long-distance operations.
- Stable Triangle Design: Three-point support disperses vibration and impact, reducing sway and failure rates, especially under high-frequency impact.
- Flexible Adaptability: Suitable for building demolition, site leveling and garden construction, no frequent equipment replacement needed.
- Powerful Impact: Delivers stable high impact force, quickly breaking rocks, concrete and asphalt to boost efficiency.
- Complex Condition Adaptability: Performs well in mining, highway maintenance, frozen soil breaking and facility repair. It handles long-distance work and adjusts angles in tight spaces, making up for top type hydraulic breakers’ weaknesses in high-altitude/vertical operations.
- Simple structure for easy maintenance
- Wear-resistant key components
- Comprehensive protection design
- Low operation difficulty
Inferior to vertical breakers in horizontal range, but better in high-altitude, long-distance and vertical operations. It complements vertical breakers for demolition, excavation and breaking.
Covers mining, building demolition, highway/railway construction, concrete pavement breaking, foundation excavation and frozen soil breaking.

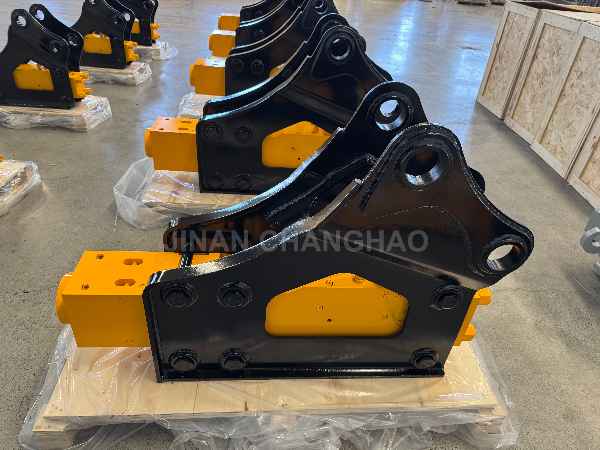

SB50 hydraulic breaker hammer

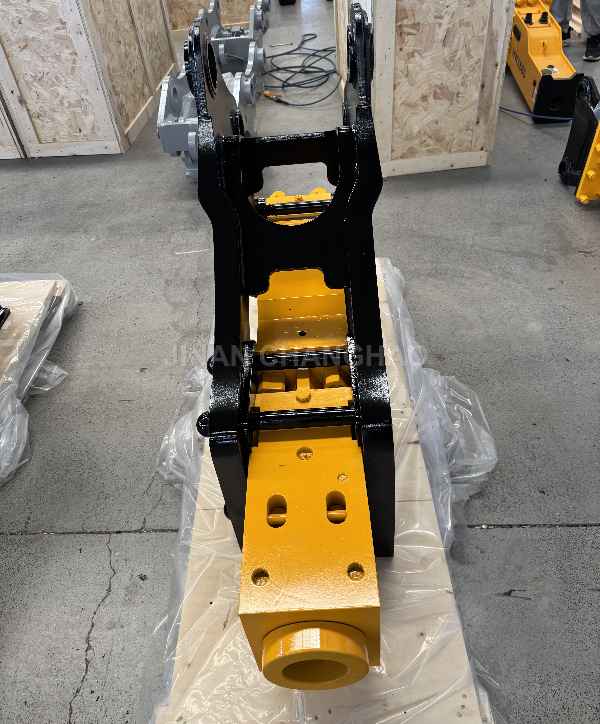

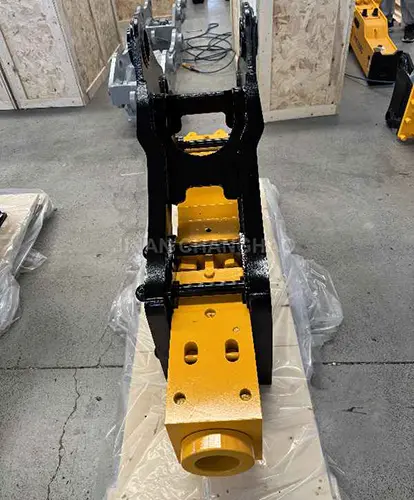

side type excavator jack hammer
Parameters of SB40 SB50 hydraulic breaker
| Model |
UNIT |
HWX680 (SB40) |
HWX1000 (SB50) |
| Weight |
Kg |
300 |
800 |
| Length |
mm |
1100 |
1500 |
| Working Pressure |
kg/cm² |
110-160 |
150-170 |
| Impact Rate |
bpm |
500-800 |
400-700 |
| Oil hose dia. |
inch |
1/2 |
3/4 |
| Chisel Dia. |
mm |
68 |
100 |
| Excavator |
ton |
4.0-7.0 |
11-16 |
