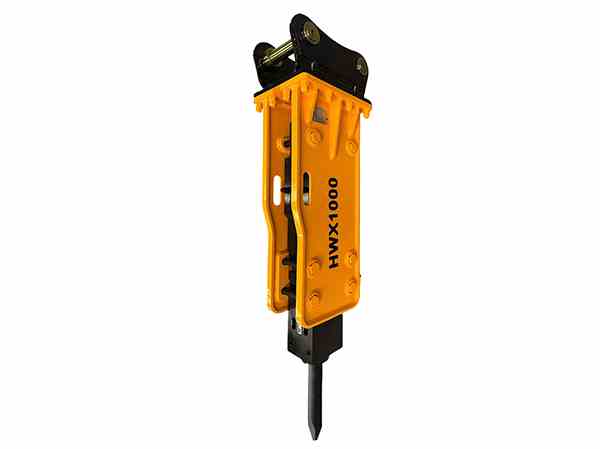

HWX1000 SB50 Top Type Hydraulic Breaker | 100mm Chisel Rock Hammer for 11-16T Excavators

The SB50 Top Type Hydraulic Breaker is designed for the 11–16 ton excavator class. It is vertical mounting configuration offers distinct advantages for specific types of middle-heavy-duty work, that balances sufficient impact force with equipment flexibility.

The Top Type hydraulic breaker is the “powerhouse” choice for vertical downward breaking.

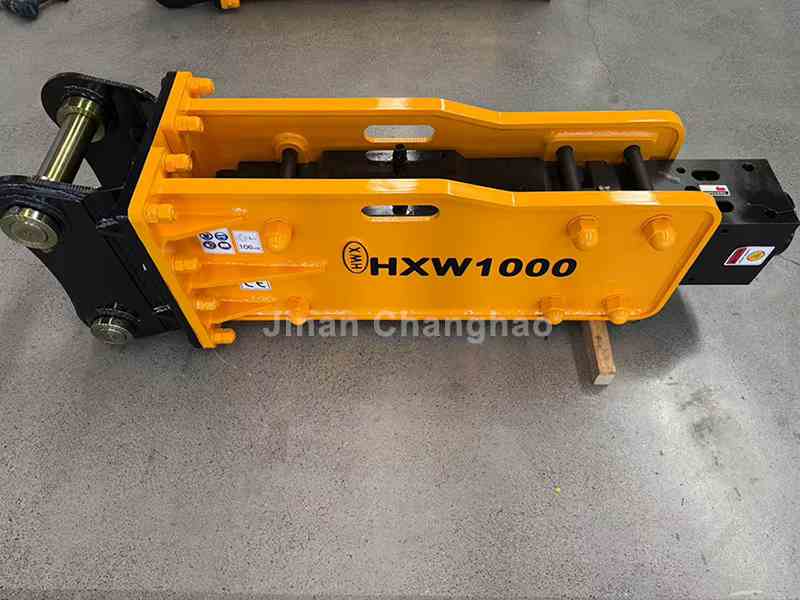

top type HWX1000 SB50 hydraulic hammer

Efficient demolition capability: With a high impact frequency and operating pressure, it is suitable for efficiently breaking medium-hardness materials like rock and concrete. Its applications include building demolition, road construction, and mining.

Materials and warranty: The hydraulic breaker main body uses alloy steel 20CrMo to ensure strength, we supply one-year warranty with online technical support. OEM Service is welcomed.

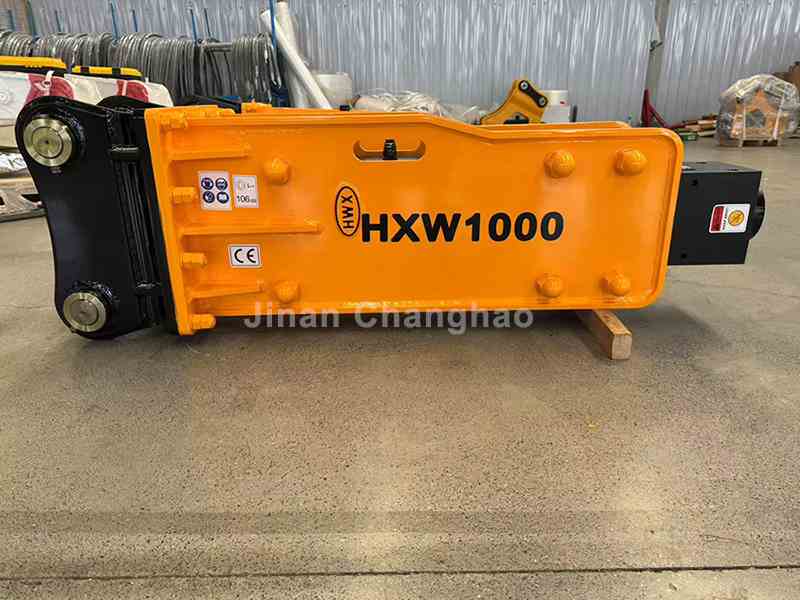

HWX1000 hydraulic breaker manufacturer

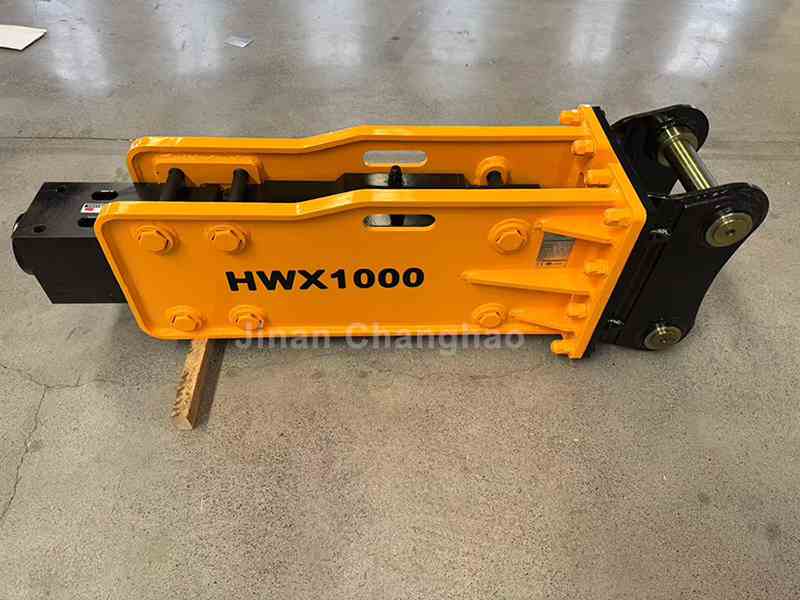

HWX1000 rock breaker hammer

Key Features of Top Type SB50
Maximum Vertical Impact: Because the mounting pins are on the top, the force of the excavator arm is transmitted directly in a straight line through the breaker to the chisel. This makes it significantly more efficient for quarrying, rock breaking, and floor demolition.

Longer Reach: The top-mount design adds more length to the excavator’s overall reach compared to the side-mount. This is a major advantage when working on high walls or reaching deep into trenches.

Simplified Positioning: For flat-surface demolition, the operator can simply “drop” the arm vertically. There is less mechanical stress on the excavator’s bushings because the reaction force travels straight up the arm.

Durability in Heavy Rock: The symmetrical “square” frame of many top-type models provides robust protection for the internal cylinder, making it a favorite for secondary breaking in mines.
