The HWX1000 Silenced Type Hydraulic Breaker is a medium-duty hydraulic rock breaker designed for excavators in the 11–16 ton range. It is engineered for high-impact Urban Demolition,Road Construction, Trenching and Quarrying. Unlike “Open” or “Side” type breakers, the silenced model is encased in a fully enclosed rectangular housing, which is the primary driver behind its popularity in modern urban construction.

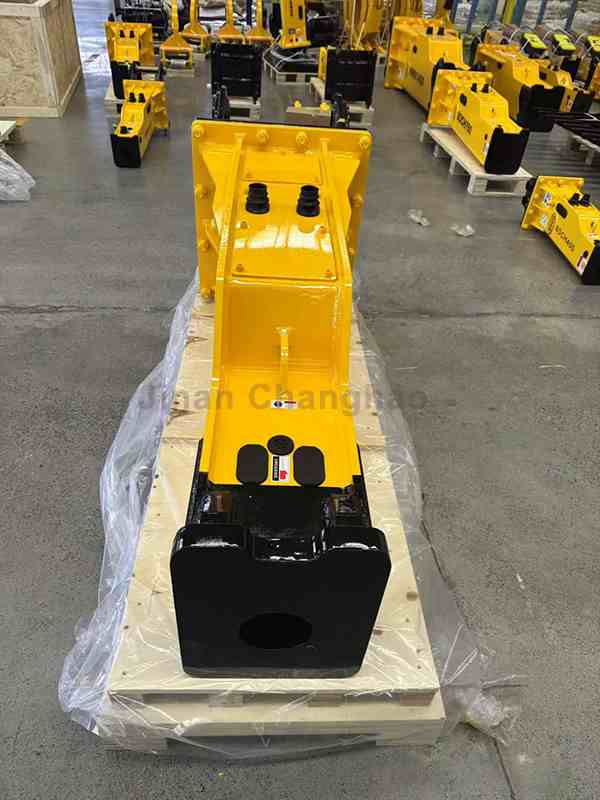

HWX1000 hydraulic breaker details
Technical Specifications
| Model Type | SDCH1000 |
| Weight | 800KG |
| Length | 1500mm |
| Working Pressure | 150-170 kg/cm² |
| Oil Flow | 80-120 L/min |
| Impact Rate | 400-700 bpm |
| Oil hose dia. | 3/4 inch |
| Chisel Dia. | 100mm |
| Chisel | 42CrMo forging, Each drill rod has undergone 3 cold heat treatments, long life drill rod |
| Excavator | 11-16 Ton |

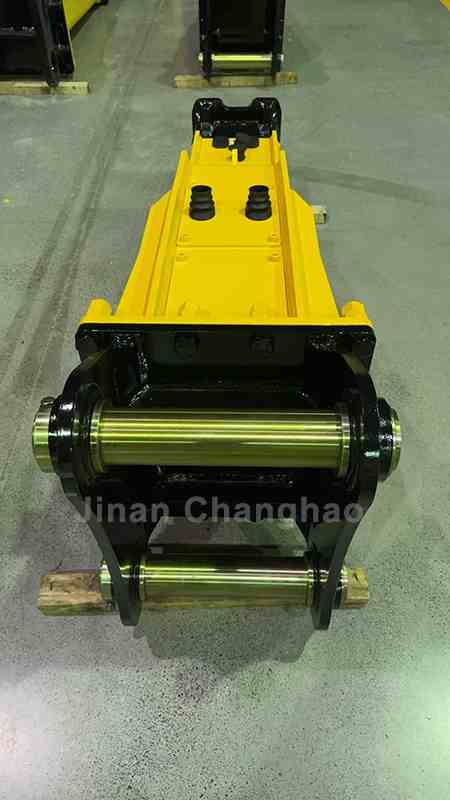

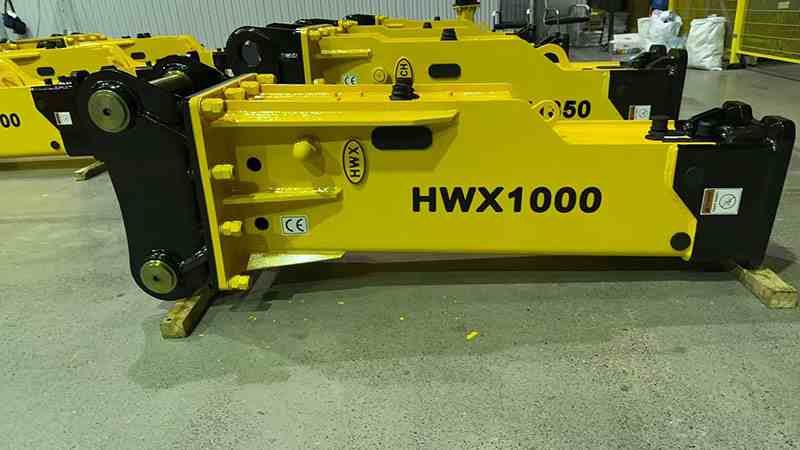

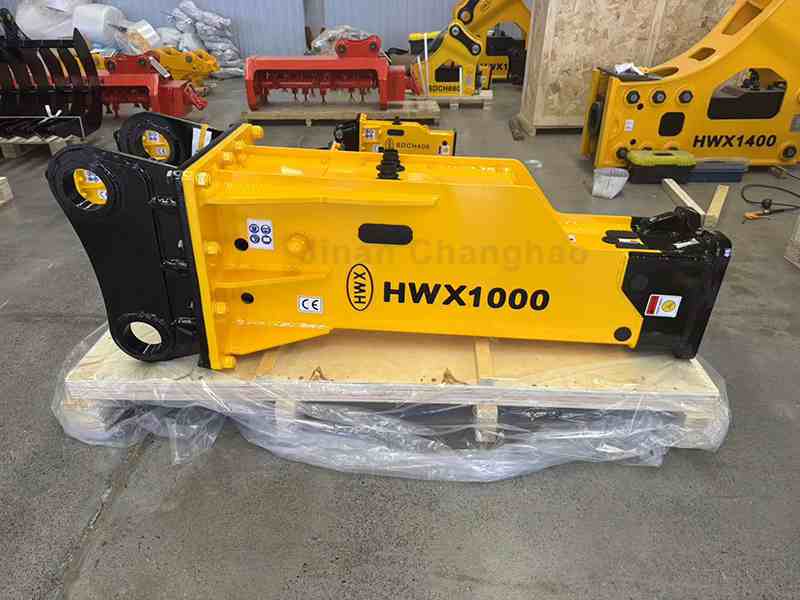

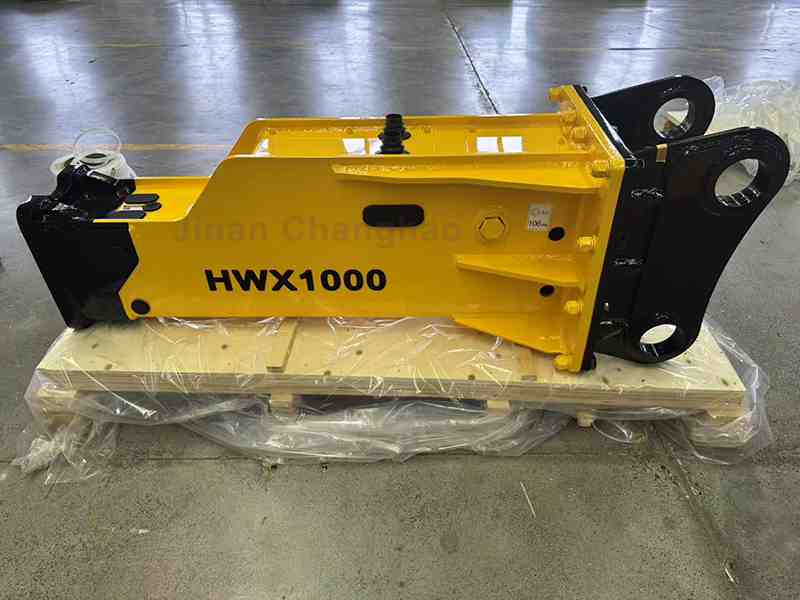

HWX1000 hydraulic breaker

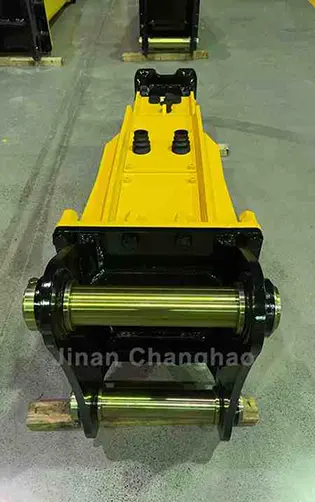

HWX1000 demolition hammer
Suitable for excavator models
SANY SY135C SY155H
XCMG XE135D XE135E, XE150D, XE150F
CAT312,CAT 313 / 313 GC, CAT 315 / 315 GC
Komatsu PC110-8，PC110-10，PC130-10， PC130-11，PC160-10
Hyundai R110-7
Key Features
1. Advanced Noise Reduction
The “Silenced” designation comes from the Box Type housing.
The Shell Housing: A fully enclosed steel jacket prevents the direct escape of sound waves generated by the piston and chisel impact.
Acoustic Insulation: Internal hydraulic breaker shock absorber damping pads and sound-absorbing materials line the casing, reducing noise levels by up to 20 decibels compared to open models.
Urban Approval: This makes the HWX1000 the preferred choice for projects near hospitals, schools, and residential areas where strict noise ordinances apply.
2. Vibration Damping & Carrier Protection
The HWX1000 box type is designed with a floating suspension system.
Shock Absorbers: Heavy-duty rubber buffers and dampers are placed between the hammer body and the outer shell.
Lower Recoil: This system absorbs the high-frequency vibrations that would otherwise travel up the excavator boom, reducing “metal fatigue” and extending the life of your carrier machine.
3. Structural Durability (Box Housing)
Protection from Debris: The enclosed design acts as a shield, preventing dust, rocks, and debris from entering the internal hammer mechanism.
4. High Impact Efficiency
Gas-Hydraulic Power: It utilizes a nitrogen-charged accumulator (back head) to boost impact energy. The compressed gas assists the hydraulic oil to drive the piston with greater force than a hydraulic-only system.
Versatility: With a 100mm chisel, it is equally effective for primary rock breaking in quarries and secondary demolition of reinforced concrete.
Typical Applications
Urban Demolition: Safe for use in densely populated city centers.
Road Construction: Breaking up asphalt and reinforced concrete foundations.
Trenching: Excavating rocky terrain for pipelines and utilities.
Mining/Quarrying: Secondary breaking of boulders for easier transport.
We manufacture hydraulic breakers from HWX350 to HWX1950(suitable 0.8 mini excavator to 65 ton excavators) , chisels, and other excavator attachments. We support OEM and ODM customization with stable quality and global service.
