The Mighty HB20G: A Deeper Look at a Construction Workhorse and Its Peers
When it comes to breaking ground, demolishing structures, or working with stubborn rock, a hydraulic hammer is an indispensable tool on any construction site. Among the myriad of models available, the HB20G hydraulic breaker stands out as a true workhorse, revered for its robust performance, reliability, and versatility. But what makes the HB20G such a popular choice, and what other models represent the “best” in different categories for construction use?

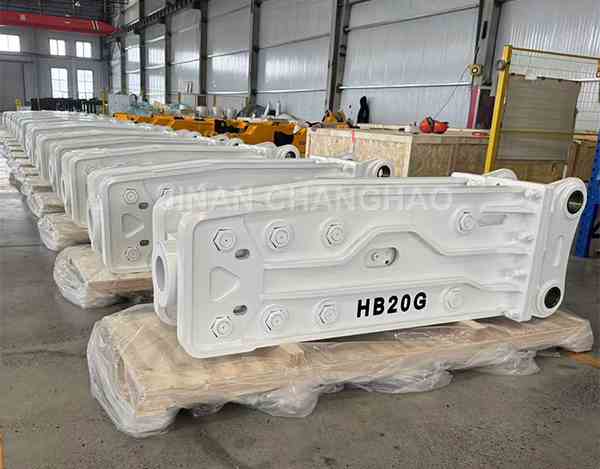

HB20G hydraulic breaker for concrete breaking
The Enduring Legacy of the HB20G Hydraulic Breaker
The “HB20G” has become synonymous with a specific class of hydraulic hammer designed for 19-26 ton excavators. This mid-range size hits a sweet spot, offering substantial breaking power without requiring the largest, most expensive carriers.

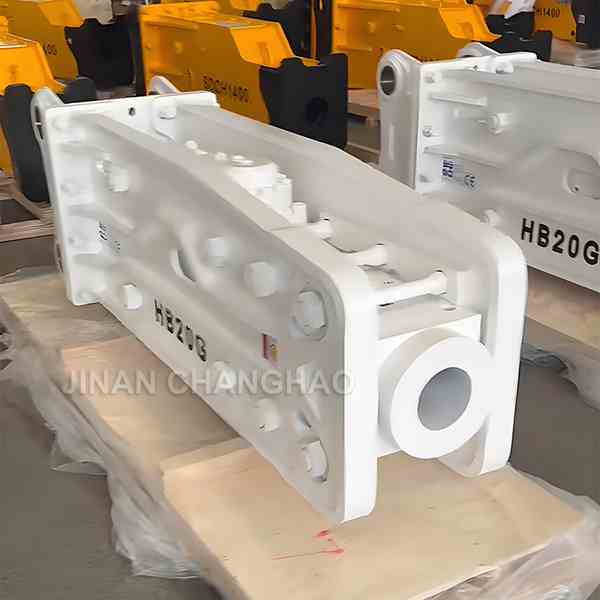

HB20G hydraulic hammers
Key Features That Define the HB20G rock breaker:
Optimized Power-to-Weight Ratio: Weighing approximately 1800kg, the HB20G delivers an impressive impact force, making it highly efficient for a wide range of tasks from primary rock breaking to heavy concrete demolition. Its 135mm chisel diameter ensures effective penetration and fracturing.
Gas-Hydraulic Hybrid Technology: The secret to the HB20G’s punch lies in its advanced gas-hydraulic system. Nitrogen gas stored in an accumulator chamber assists the hydraulic oil, absorbing recoil and delivering a powerful, consistent blow. This not only maximizes impact energy but also reduces stress on the excavator’s hydraulic system.
Robust Construction for Demanding Environments: Built with high-grade steel. Critical components like the hydraulic breaker cylinder adopts material 20CrMo. The piston of HB20G adopts GCr15. The piston undergoes quenching (approximately 840-860°C oil cooling) followed by low-temperature tempering (150-190°C). The HB20G is designed to withstand extreme forces, abrasive materials, and continuous operation. Its simplified design with fewer moving parts contributes to lower maintenance requirements and extended operational life.
Versatility Across Applications: Whether it’s breaking oversized boulders in a quarry, demolishing reinforced concrete foundations, or preparing trenches through hard rock, the HB20G excels. Its adaptability makes it a staple for general construction, civil engineering, and mining operations.

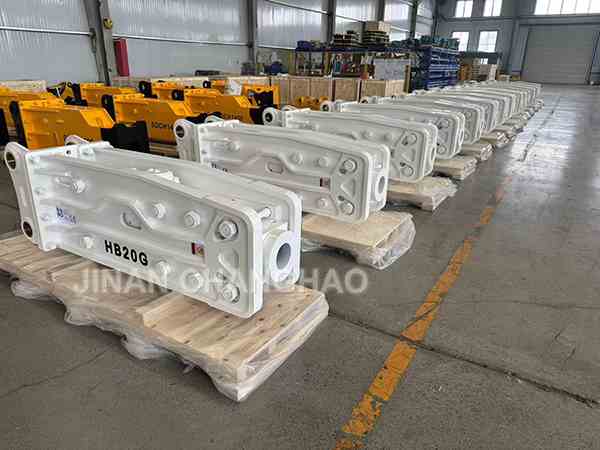

HB20G rock breaker
hydraulic breaker for 19-26 ton excavator
HB20G Technical Specifications
| Model Type | HB20G |
| Weight | 1800KG |
| Applicable Excavator | 18 -26 Tons |
| Chisel (Tool) Diameter | 135 mm |
| Impact Rate | 400-800 bpm |
| Operating Pressure | 160-180 bar |
| Required Oil Flow | 125-170 L/min |
| Hose Diameter | 1 inch |
| Impact Energy | Approx.3,500 -5,200 Joules |
Why the HB20G Remains a Top Pick:
Its balanced performance, combined with widespread parts availability and the technical know-how developed over decades, ensures that the HB20G continues to be a go-to model for contractors globally.
Choosing the Right Breaker: Key Considerations
Excavator Compatibility: This is paramount. The breaker’s weight, oil flow requirements, and operating pressure must match the excavator’s specifications to prevent damage to either machine.
HB20G hydraulic breaker is widely used.
Application: What material are you breaking? How hard is it? What are the environmental constraints (noise, dust)?
Impact Energy vs. Impact Rate: Some jobs require fewer, harder blows (high impact energy), while others benefit from more frequent, lighter blows (high impact rate).
Chisel Type: Different chisels (moil point, flat, wedge) are designed for specific materials and breaking methods.
Conclusion
The HB20G hydraulic breaker has earned its esteemed position in the construction industry through its robust design, impressive power, and proven reliability. It exemplifies the balance between raw force and operational efficiency that contractors demand. While it remains a benchmark, the “best” hydraulic breaker ultimately aligns with the specific needs of each project, demonstrating the rich diversity and continuous innovation within the world of heavy construction attachments.
