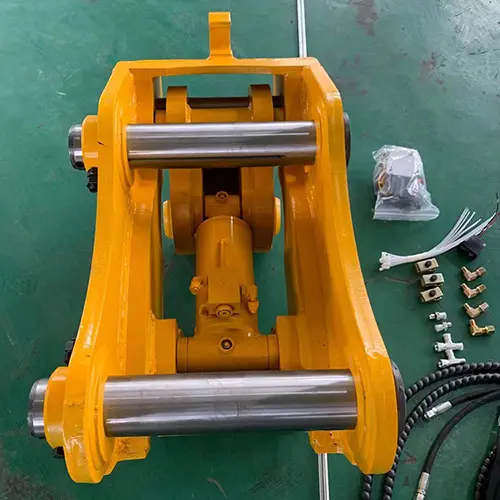

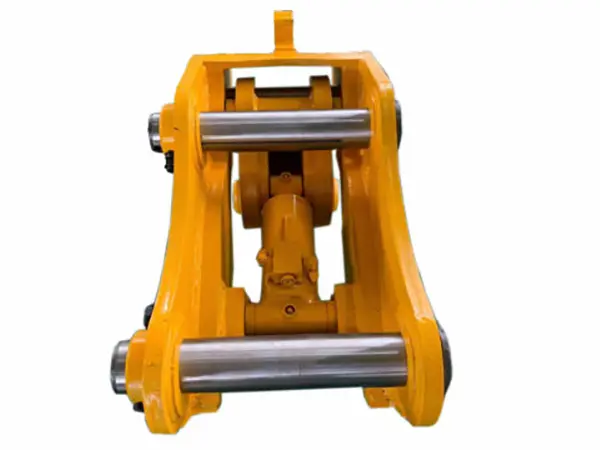

Jinan Changhao High-Performance Hydraulic Quick Hitch is precision-engineered for 20-ton class excavators. Our coupler allows operators to switch between buckets, hydraulic breakers, and grapples in under 30 seconds without leaving the cab. Designed to match the high-pressure breakout forces of machines like the Caterpillar 320, Sany SY215, and Komatsu PC200, this quick coupler is the ultimate productivity booster for demolition and mining job sites.
| Key Features | Specifications for 20-Ton Class |
|---|---|
| Applicable Carrier | 18 – 26 Ton Excavators |
| Pin Diameter | 80 mm (High-Tensile 40Cr Steel) |
| Center Distance | 440mm – 485mm (Customizable) |
| Ear Width (Dipper) | 300mm – 330mm (Tailored to hitch) |
| Operating Pressure | 40 – 320 Bar |
| Locking Mechanism | Hydraulic Cylinder + Mechanical Safety Pin |
Double Safety Protection: Equipped with an integrated high-pressure check valve that maintains cylinder pressure in case of hose failure, plus a secondary Mechanical Safety Pin to prevent accidental release.
Reinforced Q355B Construction: The main body is laser-cut from premium Q355B manganese steel, offering exceptional resistance to the intense breakout forces of 20-ton excavators.
Induction-Hardened Hooks: Our coupling hooks are induction-hardened to reduce wear at the pin contact points, ensuring a “zero-play” fit even after thousands of attachment changes.
Plug & Play Installation: Custom-fitted hydraulic hoses and solenoid valve kits are included, specifically matched to your carrier’s auxiliary line.

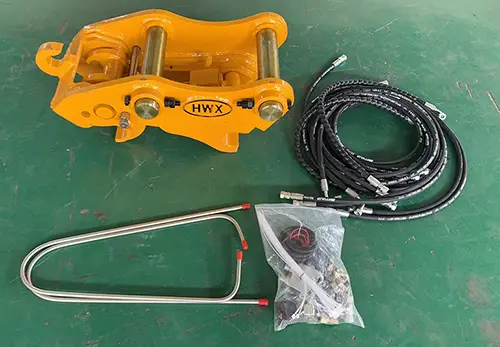

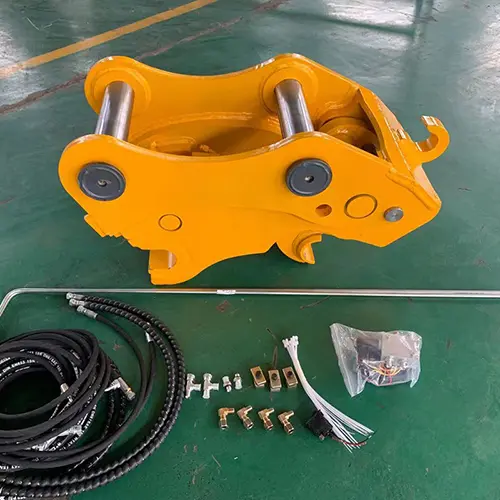

(Full-Set Configuration)
Shipped as a Complete Ready-to-Install Package:
- 1x Heavy Duty Hydraulic Quick Coupler
- 2x High-Strength Mounting Pins (40Cr)
- 1 set of Solenoid Valve & Switch Control Kit
- 2x High-Pressure Hoses (1/2″ or 3/4″)
- 12-Month Structural Warranty
Excavator hydraulic quick hitch quick couplers are used with construction machines to allow the rapid change of buckets and attachments on excavators. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.
