Precision-Matched Mechanical Quick Coupler specifically engineered for Sany SY60 series mini excavators. Our coupler allows operators to switch between buckets, breakers, and grapples in seconds, significantly boosting job-site productivity. Designed with a focus on both strength and weight, it maintains the Sany carrier’s optimal load center and breakout force.
This is the mechanical quick coupler suitable for SANY SY60, with a shaft diameter of 50mm, an opening width of 170mm, and a center distance of 250mm.
| Installation Parameters | Specifications for Sany SY60 |
|---|---|
| Pin Diameter | 50 mm (Hardened 40Cr Steel) |
| Center Distance | 250 mm |
| Ear Width (Dipper) | 170 mm |
| Material Grade | High-Strength Q355B Manganese Steel |
| Locking System | Adjustable Screw + Manual Safety Locking Pin |
| Applicable Weight | 5 – 7 Ton Carriers |

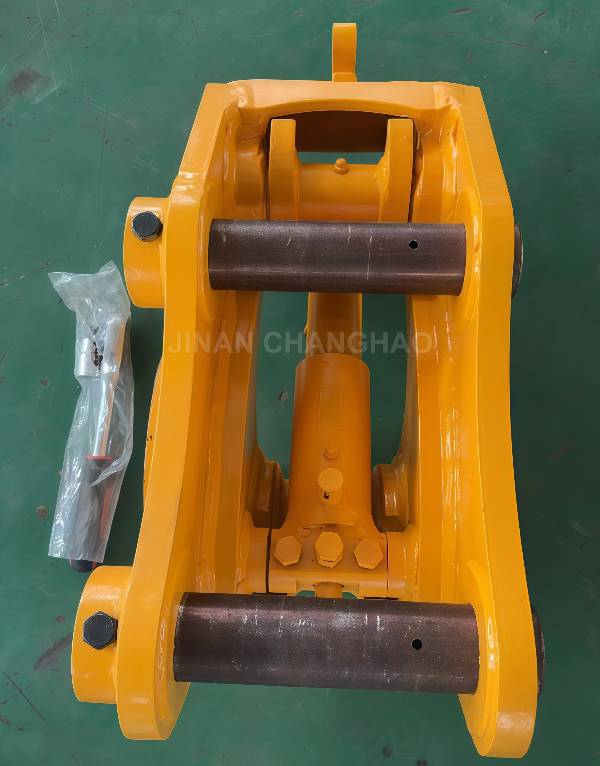

6 ton excavator manual quick coupler

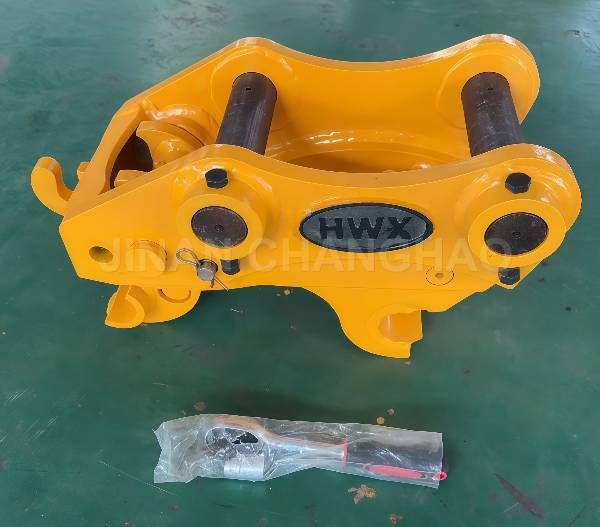

manual quick coupler
High-Strength Q355B Construction: The main frame is laser-cut from premium Q355B steel, ensuring no structural deformation even under the high-pressure digging force of the Sany SY60.
Zero-Play Hook Design: Our hooks are precision-machined to provide a 100% tight grip on the attachment pins, reducing rattling and extending the life of your buckets and bushings.
Double-Safety Mechanism: Includes a robust adjusting screw and a secondary Safety Locking Pin to prevent accidental release under heavy vibration or load shifts.
Corrosion Resistance: All surfaces undergo pickling and high-quality industrial coating for long-term outdoor durability.
The manual quick hitch coupler is more compact and lightweight than others on the market, giving you more breakout force and keeping the load centre closer to your machine.

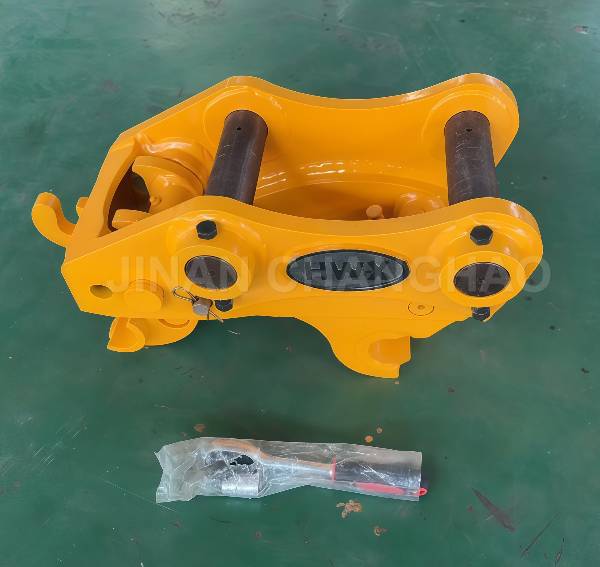

mini excavator mechanical quick coupler
Unlock and safely release excavator attachments in one easy operation with the release tool bar.

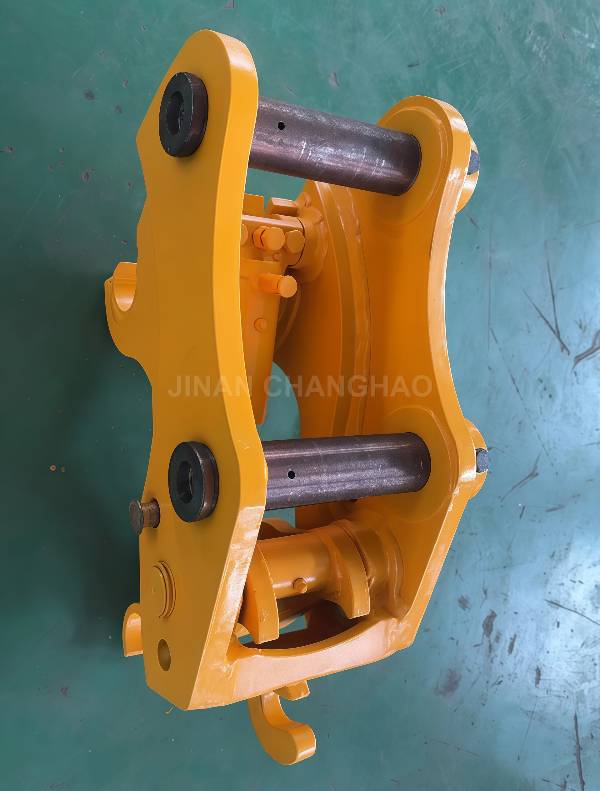

sany sy60 excavator manual quick coupler
Shipped as a Complete Ready-to-Install Kit:
1x Heavy Duty Manual Quick Coupler
2x High-Tensile Mounting Pins (40Cr)
1x Adjusting Release Tool Bar
1x Safety Locking Pin Set
12-Month Structural Warranty
