In the construction machinery parts market, non-original parts account for more than 60%, with inconsistent quality being the most troublesome issue for buyers.
When procuring hydraulic breaker parts, equipment managers often face a triple dilemma: quality is difficult to assess visually, prices vary significantly, and delivery times are unpredictable. Even more challenging is the existence of multiple “compatible versions” of the same model, with vastly different durability and performance characteristics.
I have witnessed a contractor who chose the wrong hammer breaker parts supplier, resulting in secondary damage to the hammer, repair costs doubling, and incalculable losses due to project delays.
First, it’s crucial to understand the qualities of a high-quality hydraulic breaker parts supplier. The supplier should provide material certificates, heat treatment process parameters, and factory inspection reports for the hydraulic breaker parts.

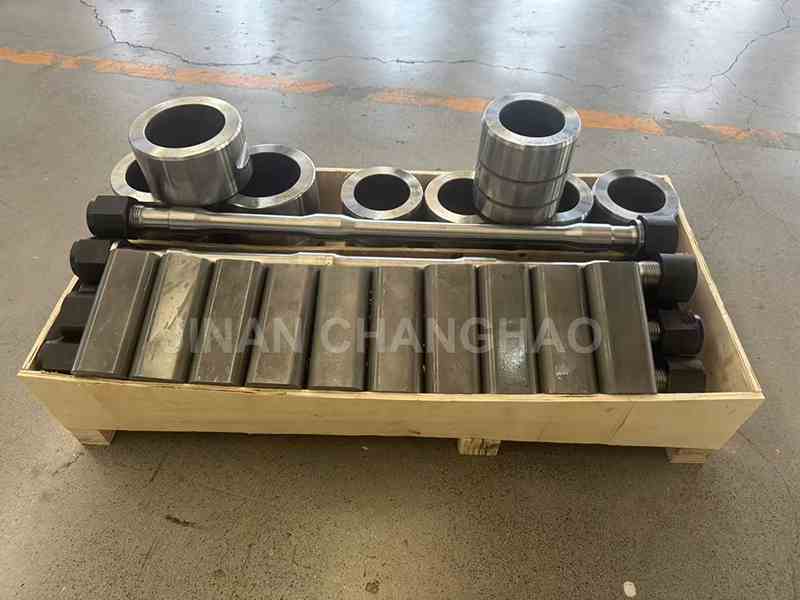

rock breaker parts manufacturer
A quality supplier not only provides products but can also recommend the most suitable parts solutions based on equipment working conditions, frequency of use, and operating environment. Their technical team can analyze the cause of failures to prevent similar issues from recurring.
Practical case studies show that partnering with suppliers with professional teams can extend the average time between failures (MTBF) by 15-20%. This value extends far beyond a simple comparison of component costs.
Professional Standards for Hydraulic Breaker Parts Quality Assessment
When procuring hydraulic breaker parts, several key technical parameters cannot be ignored. Regarding material selection, high-end components typically use 42CrMo alloy steel, 20CrMo alloy steel, undergoing specific heat treatment processes to achieve both sufficient surface hardness and internal toughness.(Some manufacturers in Ningbo city, China, are exporting hydraulic breakers and hydraulic breaker parts to Iran,Libya and Saudi Arabia that do not meet material standards, as they are made from recycled waste materials. You get what you pay for. As a professional hydraulic breaker manufacturer, we aim to provide our customers with high-quality products at competitive prices.)

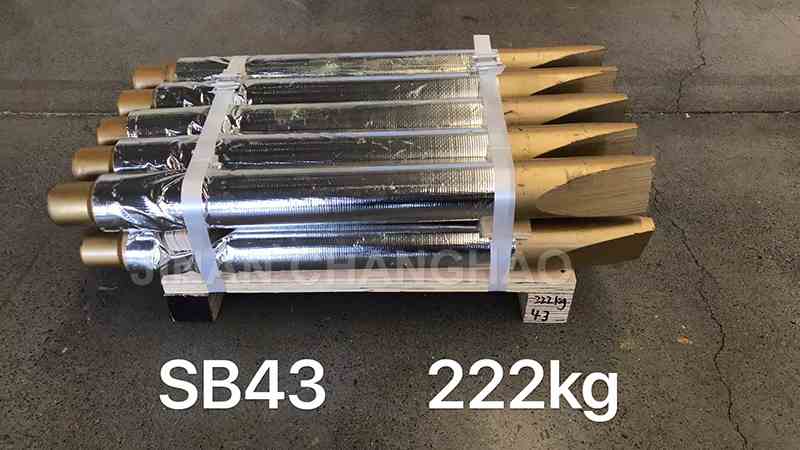

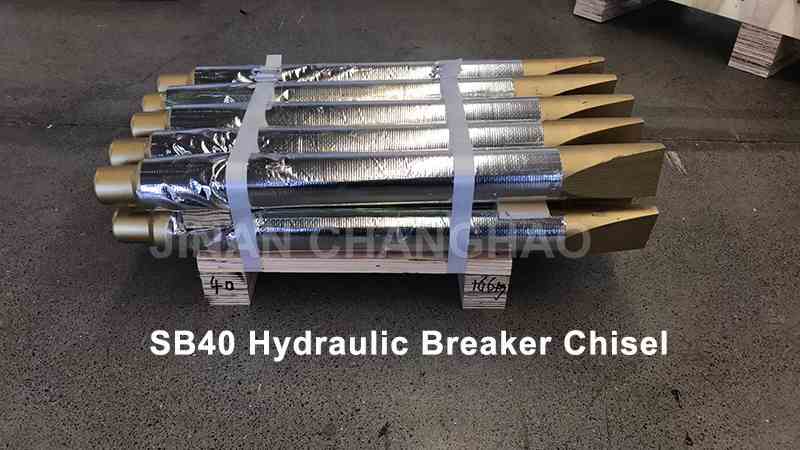

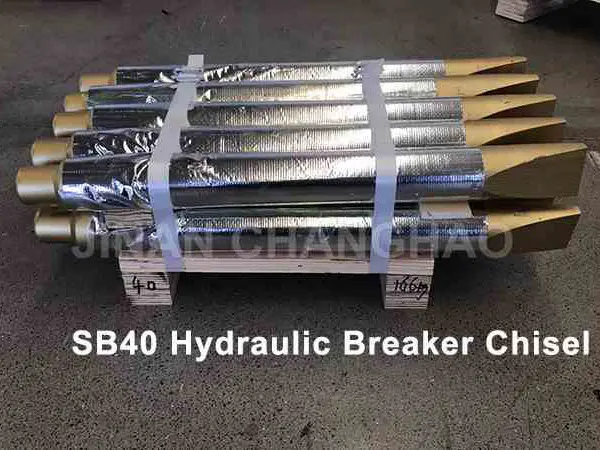

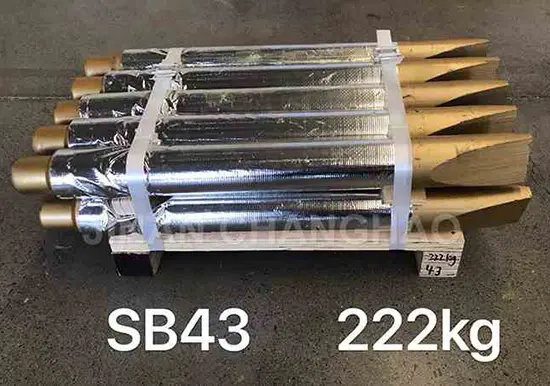

When choosing hydraulic breaker chisel, for Light-duty works (concrete, bricks & tiles), we choose the material of 35CrMo, it is used for chisel diameter 45–75 mm. For normal-duty works (pavement, secondary ore crushing), we select material 42CrMo, it is used for chisel diameter 85–180 mm. For Heavy-duty works(mining, hard rock crushing), the material isTSG46A/TSG48A + head surfacing welding, it is used for chisel diamter 150–210 mm. For Extreme-duty works(extreme cold, ultra-hard rock), we select high nickel-chromium alloy steel, it used for chisel diameter ≥200 mm.

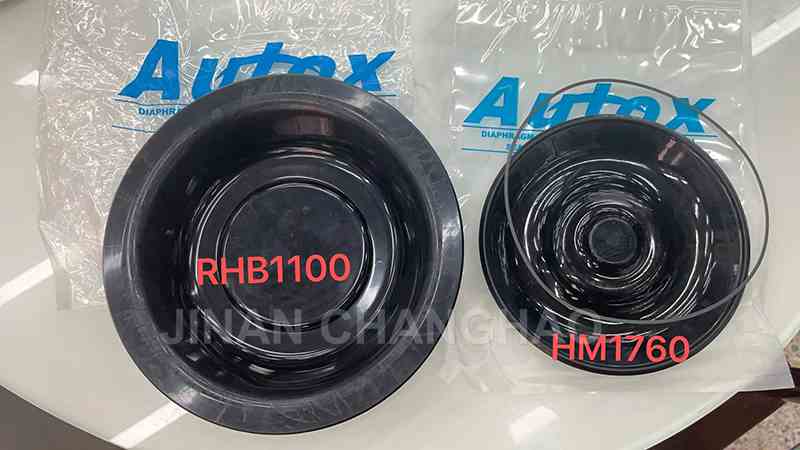

Differences in manufacturing processes directly affect component lifespan. For example, high-quality hydraulic breaker accumulator diaphragms employ multi-layered composite processes, including oil-resistant layers, reinforcing layers, and elastic layers, while cheaper alternatives may only have a single material structure.

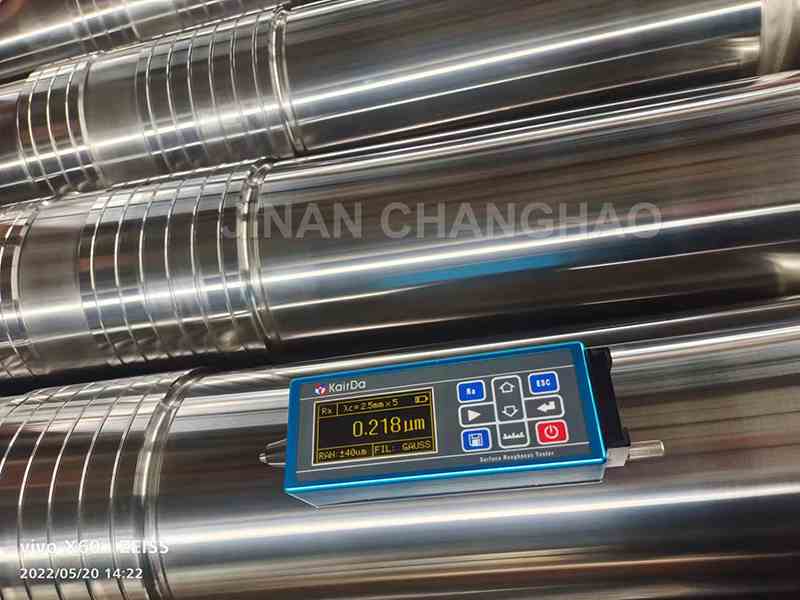

Dimensional accuracy is another important but often overlooked indicator. Precision-machined parts ensure optimal fit clearance during machine operation, reducing abnormal wear. We have measured hydraulic breaker piston from different sources and found dimensional deviations as high as 0.08mm, which is sufficient to explain why some components fail quickly after installation.
Professional testing methods include hardness testing, metallographic analysis, and 3D dimensional scanning. While the purchaser may not have these testing capabilities, they can request third-party testing reports from the supplier as a reference.
Sample testing is an effective means of verifying supplier commitments. Before bulk purchasing, it is recommended to order a small number of samples for actual working condition testing, recording key performance data such as service life, failure modes, and ease of replacement.
The procurement of hydraulic breaker parts should be approached with different strategies depending on the specific circumstances.
For emergency repair needs, the primary considerations are speed and reliability of delivery. In this case, it’s advisable to collaborate with local suppliers with whom prior relationships have been established. Even if the price is slightly higher, the value of quickly restoring equipment operation usually far outweighs the cost difference in parts.
Routine maintenance procurement differs, allowing for a more comprehensive supplier evaluation. The focus should be on product quality consistency, bulk supply capabilities, and long-term cooperation benefits. In this situation, there is more room for price negotiation, and long-term supply agreements can be considered.
For older equipment or special models, finding suitable parts is challenging in itself. This is where the value of specialized suppliers becomes apparent—they typically possess a wider supply network and customization capabilities, enabling them to address specific needs.
Jinan Changhao Machinery Equipment Co., Ltd, As a hydraulic breaker replacement parts supplier, rock breaker parts fit SOOSAN, NPK, Furukawa & More. And we provide preventative maintenance support, such as regular reminders for parts replacement, providing equipment checklists, and operational recommendations. These value-added services help equipment managers identify problems proactively and avoid sudden breakdowns.
