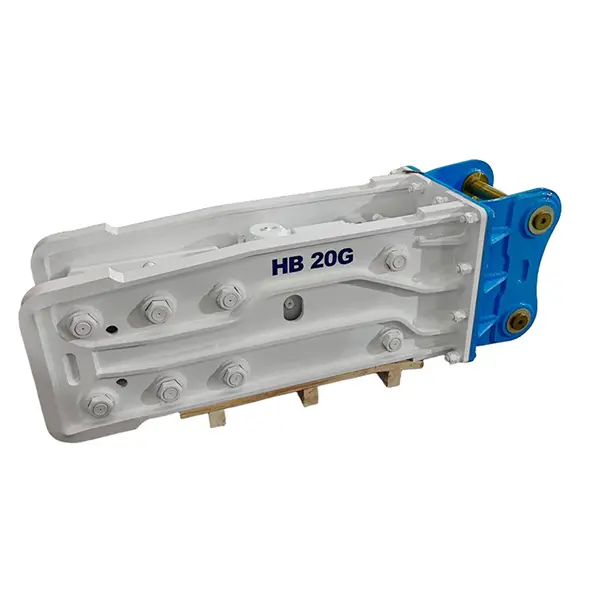

The HB20G Hydraulic Breaker Hammer is a premium, high-impact attachment specifically engineered for 18-26 ton excavators. Combining Japan technology with heavy-duty manufacturing standards, the HB20G is designed to tackle the toughest materials, from reinforced concrete to volcanic rock, making it the top choice for mining, quarrying, and large-scale demolition projects.
| Model Type | HB20G |
| Weight | 1800KG |
| Applicable Excavator | 18 -26 Tons |
| Chisel (Tool) Diameter | 135 mm |
| Impact Rate | 400-800 bpm |
| Operating Pressure | 160-180 bar |
| Required Oil Flow | 125-170 L/min |
| Hose Diameter | 1 inch |
| Impact Energy | Approx.3,500 -5,200 Joules |
HB20G hydraulic breaker material

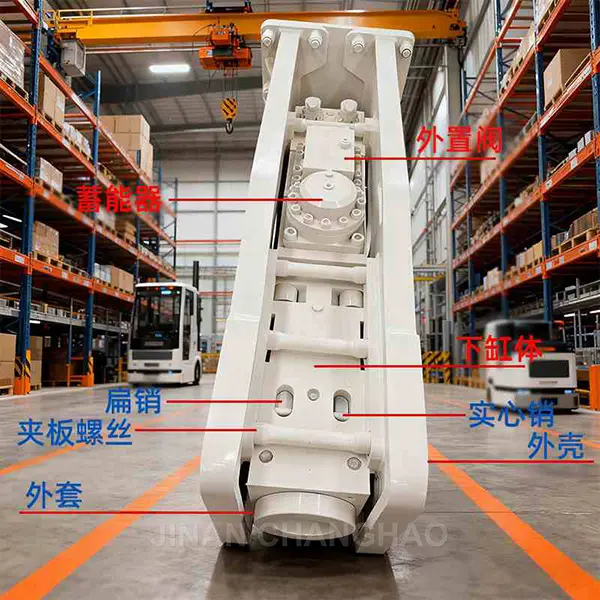

| High-quality Hydraulic Breaker Hammer Material | |
| Product Name | Material |
| Piston | GCR15 |
| Cylinder | 20CrMo Six-sided forging |
| Front Head | 20CrMo Six-sided forging |
| Back Head | 20CrMo Six-sided forging |
| Control Valve | 20CrMo Six-sided forging |
| Front Cover | 42CrMo |
| Ring Bush | 42CrMo |
| Through Bolt | 42CrMo |
| Chisel | 42CrMo forging, Each drill rod has undergone 3 cold heat treatments, long life drill rod |
| Seal kit retainer | High temperature resistance |
| Bracket | GB45,Wear resistance coefficient 400 |
| Strike strength | 1.5 times of ordinary breaker hammer |
Why Choose HWX HB20G Hydraulic Breaker?
100% Fitting Guarantee: We utilize our “Golden Three Parameters” verification (Pin Diameter, Pin Centers, and Ear Width) to ensure the breaker fits your specific excavator hitch perfectly before shipping.
Superior Impact Power: Optimized hydraulic circuit design ensures maximum energy transfer to the chisel, delivering consistent breaking force even in hard-rock environments.
Reinforced Structure: The main body is forged from high-density alloy steel with advanced heat treatment, significantly extending the service life of the cylinder and piston.
Excellent Heat Dissipation: Designed for continuous operation in high-temperature regions (Middle East, Southeast Asia) without losing impact frequency.
Part Interchangeability: Key internal components are fully interchangeable with standard HB series, making local maintenance easy and cost-effective.
Compatibility Guide
Our HB20G is Compatible with (but not limited to) the following models:
- Caterpillar: CAT 320, 323, 325
- Komatsu: PC200, PC210, PC220
- Sany: SY215, SY225, SY235
- Hitachi: ZX200, ZX210, ZX240
- Doosan: DX225, DX255
- Kobelco: SK200, SK210, SK250
Packaging & Support
- Standard Kit Includes: 2 Chisels, 2 Hydraulic Hoses, 1 Nitrogen Charging Kit with N2 Tank, 1 Tool Box.
- Warranty: 12-month warranty on main components (Cylinder, Piston, Front Head).
- Shipping: Export-standard plywood case for safe international delivery.
Taming the Basalt — HB20G’s Performance in the Saudi Desert
The Challenge: Rocks as Hard as Iron
In the Tabuk region of Saudi Arabia, a major highway expansion project faced a grueling obstacle. The terrain was dominated by volcanic basalt—a rock so dense and abrasive that standard hydraulic breakers struggled to penetrate it. With temperatures soaring above 45°C (113°F), the project manager, Mr. Ahmed, was facing a crisis: his existing equipment was overheating, and the pistons were losing impact power, threatening to delay the entire project timeline.
The Solution: The HWX HB20G “Quarry Master”
After researching high-durability attachments, Mr. Ahmed’s firm imported our HB20G Hydraulic Breaker. Specifically designed for 20-ton class excavators (in this case, paired with a CAT 320D), the HB20G was selected for its superior heat dissipation and its high-strength 135mm alloy steel chisel.
“We needed a hammer that could strike fast and hard without giving up in the desert heat,” Ahmed noted. Our technical team verified the “Golden Three Parameters” of his CAT 320D to ensure a 100% seamless fit before shipping.
The Result: Precision and Power Under Pressure
From the first strike, the difference was undeniable. The HB20G delivered a consistent 400-800 bpm impact rate, shattering the basalt blocks into manageable pieces with surgical precision.
Zero Overheating: The advanced hydraulic circuit design allowed the breaker to run for 10-hour shifts without the hydraulic oil reaching critical temperatures.
25% Efficiency Boost: The project moved forward faster than expected, reducing fuel consumption per ton of rock broken.
Durability: After three months of continuous “quarry-style” demolition, the main cylinder and through-bolts showed minimal wear, proving the quality of HWX’s heat-treatment process.
Client Feedback
“In the Middle East, heat and rock are our greatest enemies. The HWX HB20G turned those enemies into manageable tasks. It’s not just a tool; it’s the heartbeat of our excavation site,” said Mr. Ahmed.
